Danfoss 4TA12FJ10

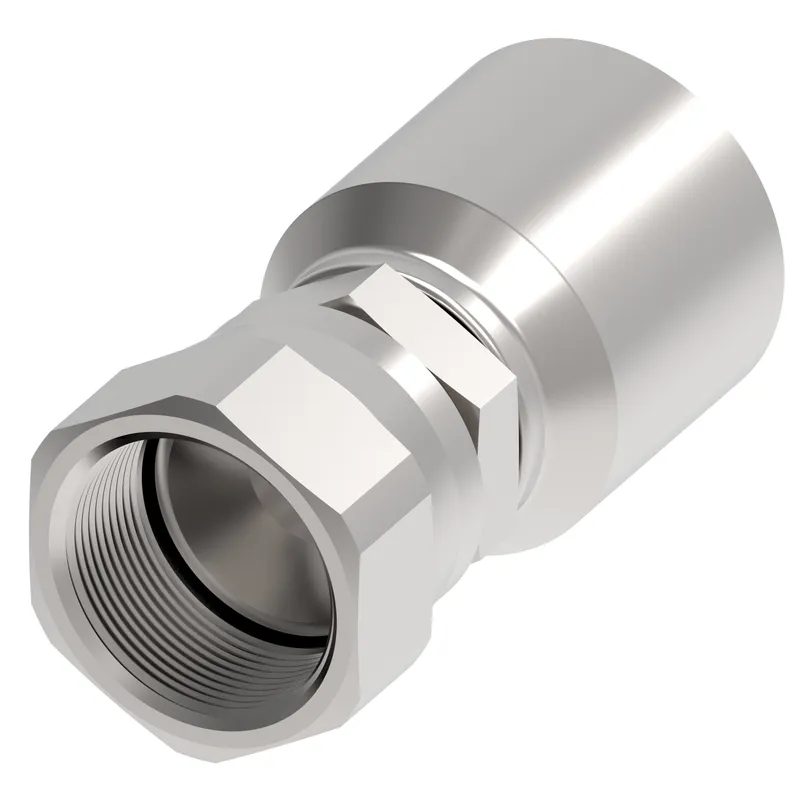

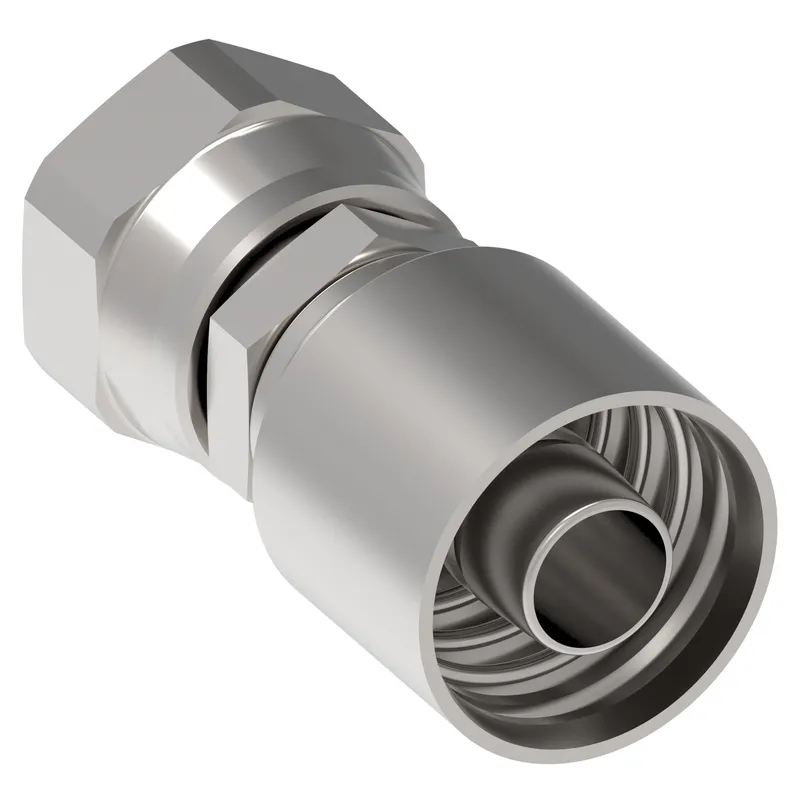

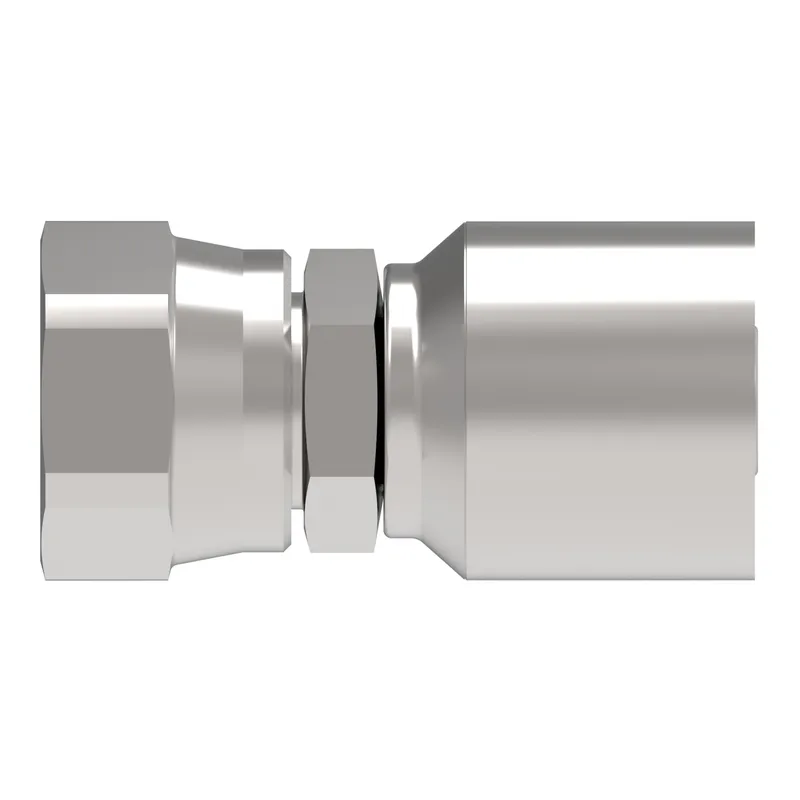

HOSE FTG, 4T/10, JIC-F/12, CS, STR

MPN: 4TA12FJ10
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4TA12FJ10?

Danfoss HOSE FTG, 4T/10, JIC-F/12, CS, STR, manufacturer part number 4TA12FJ10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810903034831
A dimension IN	2.730
A dimension MM	69.400
Angle shape	Straight
Compatible hose ID IN	0.620
Construction Style	Crimp
End size 1	-12
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.259
Hex size 1 MM	32.000
Hex size 2 IN	1.000
Hex size 2 MM	25.000
Hose cut off factor IN	1.630
Hose cut off factor MM	41.500
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	1.250
Product height mm	31.750
Product length in	2.710
Product length mm	68.834
Product material	Carbon steel
Product width in	1.250
Product width mm	31.750 mm
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working pressure max BAR	330
Working pressure max PSI	4800
