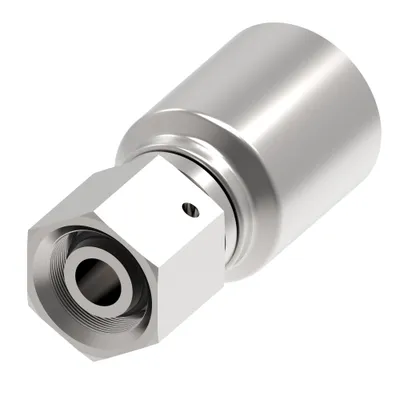

Danfoss 4T8DL5

HOSE FTG, 4T/05, DKOL/08, CS, STR

MPN: 4T8DL5
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T8DL5?

Danfoss HOSE FTG, 4T/05, DKOL/08, CS, STR, manufacturer part number 4T8DL5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.000
A dimension MM	50.700
Angle shape	Straight
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.938
Construction Style	Crimp
End size 1	-8
End type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.748
Hex size 1 MM	19.000
Hose cut off factor IN	1.060
Hose cut off factor MM	26.800
Hose size	-5
Inside diameter IN	0.210
Inside diameter MM	5.300
Product height in	0.850
Product height mm	21.590
Product length in	2.000
Product length mm	50.800
Product material	Carbon steel
Product width in	0.790
Product width mm	20.066 mm
Seal material	Nitrile (NBR)
Thread sealant	No
Thread size 1	M16x1.5
Working pressure max BAR	275
Working pressure max PSI	4000
