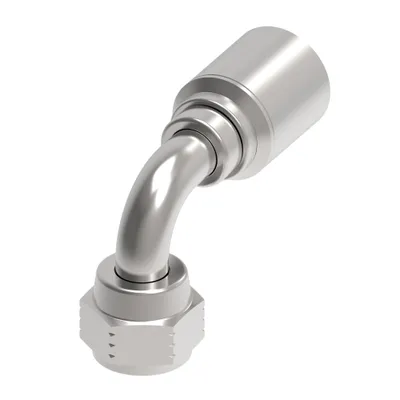

Danfoss 4T6FJB4

HOSE FTG, 4T/04, JIC-F/06, CS, 90D

MPN: 4T6FJB4
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T6FJB4?

Danfoss HOSE FTG, 4T/04, JIC-F/06, CS, 90D, manufacturer part number 4T6FJB4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.970
A dimension MM	50.000
Angle shape	90 Degree
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Construction Style	Crimp
Drop dimension IN	0.850
Drop dimension MM	21.60
End size 1	-6
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.748
Hex size 1 MM	19.000
Hose cut off factor IN	1.080
Hose cut off factor MM	27.400
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	1.771
Product height mm	45.000
Product length in	2.283
Product length mm	58.000
Product material	Carbon steel
Product width in	0.787
Product width mm	20.000 mm
Thread sealant	No
Thread size 1	9/16-18 UNF
Working pressure max BAR	400
Working pressure max PSI	5800
