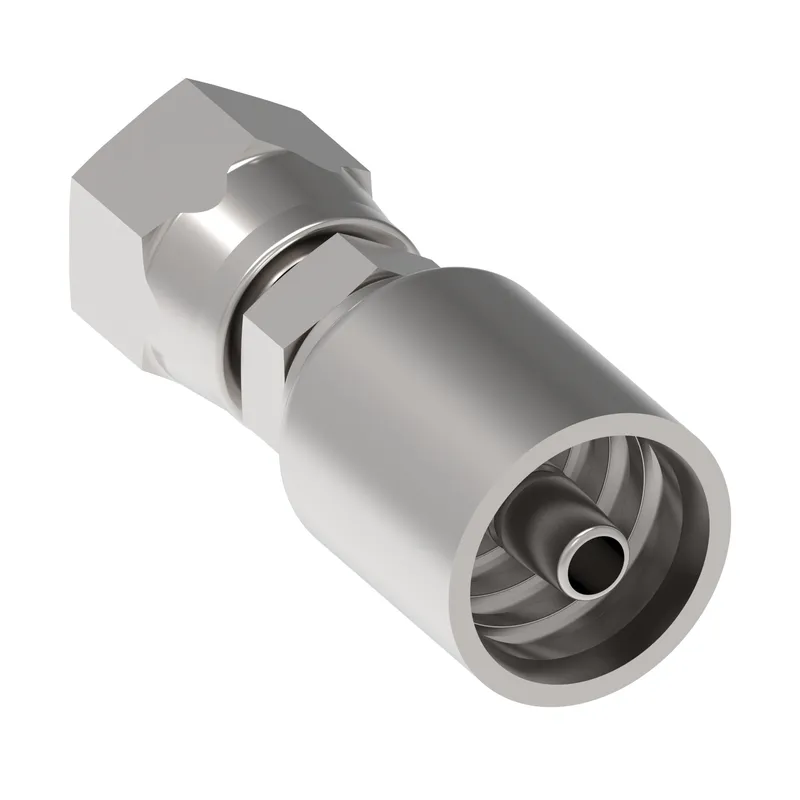

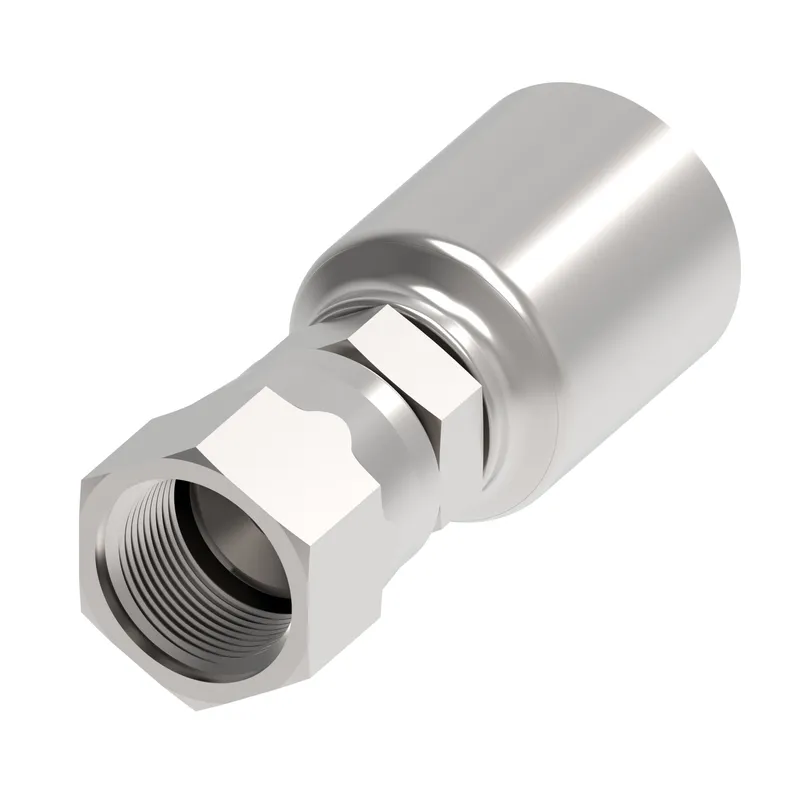

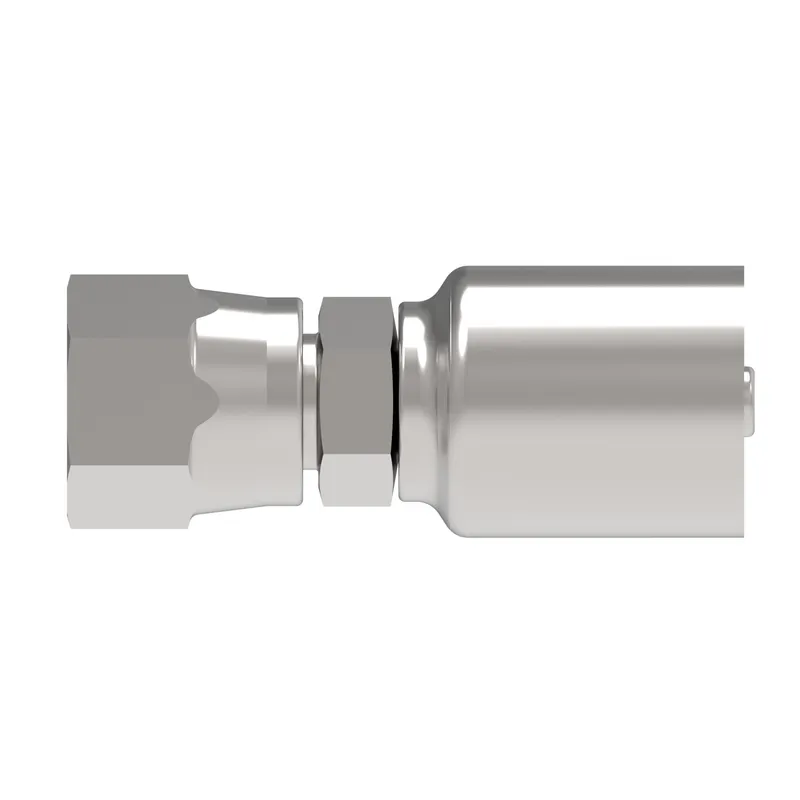

Danfoss 4T6FJ4

HOSE FTG, 4T/04, JIC-F/06, CS, STR

MPN: 4T6FJ4
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T6FJ4?

Danfoss HOSE FTG, 4T/04, JIC-F/06, CS, STR, manufacturer part number 4T6FJ4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.150
A dimension MM	54.600
Angle shape	Straight
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Construction Style	Crimp
End size 1	-6
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.669
Hex size 1 MM	17.000
Hex size 2 IN	0.551
Hex size 2 MM	14.000
Hose cut off factor IN	1.200
Hose cut off factor MM	30.600
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.787
Product height mm	20.000
Product length in	2.059
Product length mm	52.300
Product material	Carbon steel
Product width in	0.787
Product width mm	20.000 mm
Thread sealant	No
Thread size 1	9/16-18 UNF
Working pressure max BAR	400
Working pressure max PSI	5800
