Danfoss 4T5DL4

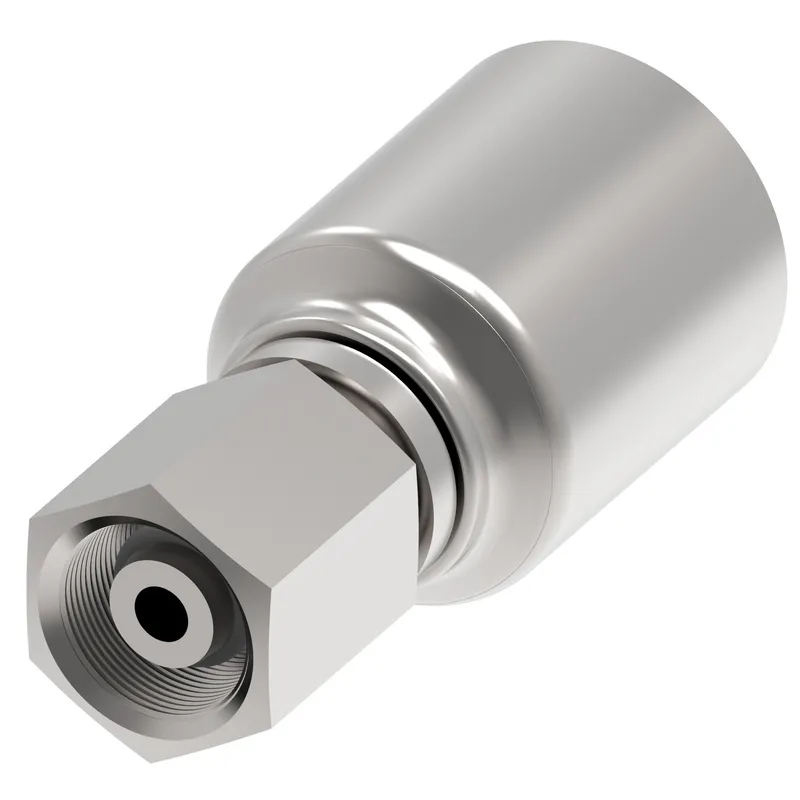

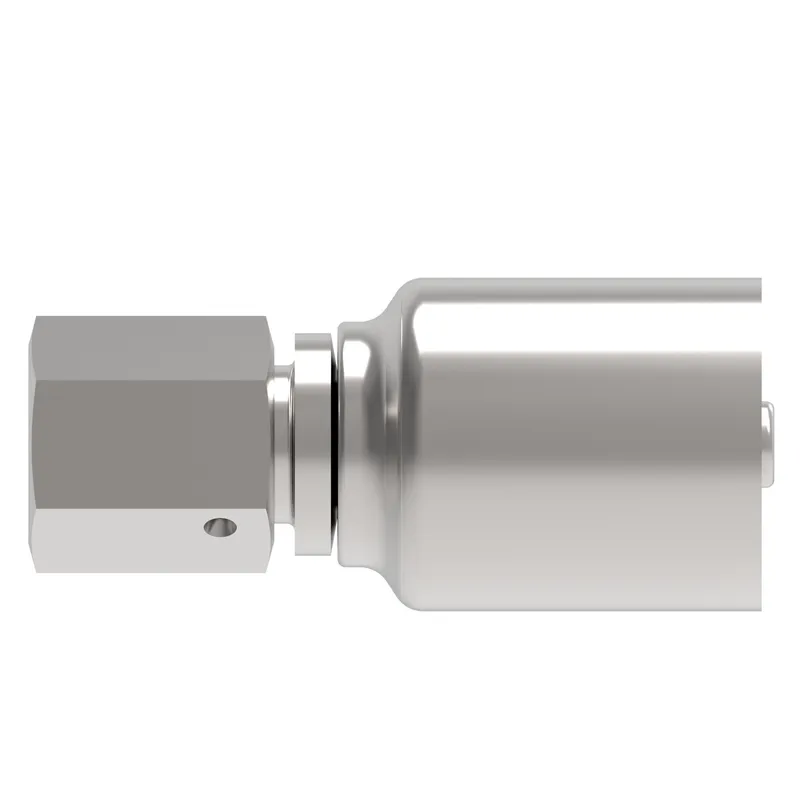

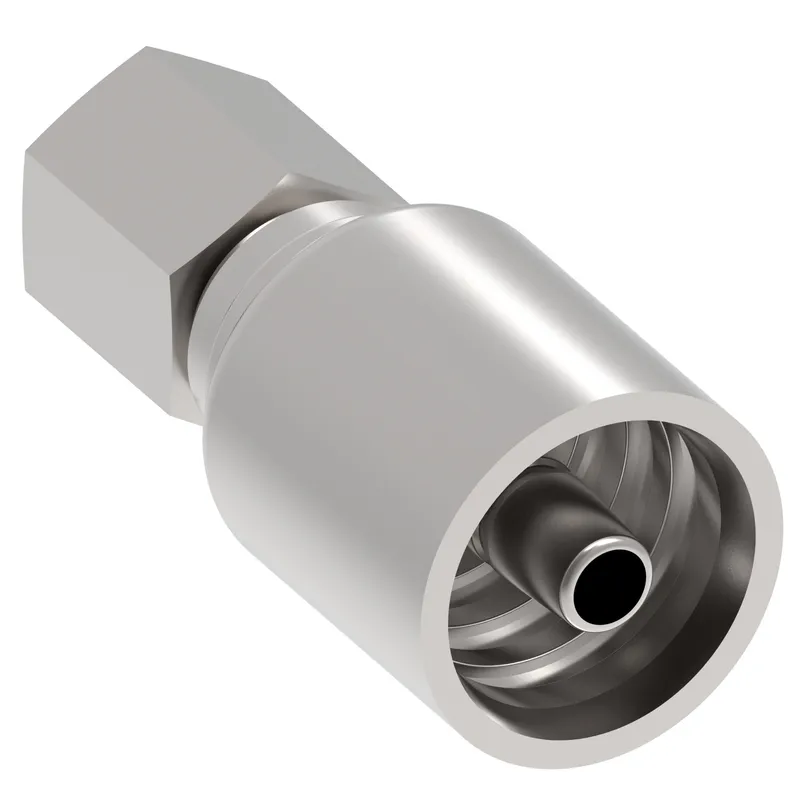

HOSE FTG, 4T/04, DKOL/05, CS, STR

MPN: 4T5DL4
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T5DL4?

Danfoss HOSE FTG, 4T/04, DKOL/05, CS, STR, manufacturer part number 4T5DL4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810903034701
A dimension IN	1.780
A dimension MM	45.300
Angle shape	Straight
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Construction Style	Crimp
End size 1	-5
End type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.551
Hex size 1 MM	14.000
Hex size 2 IN	0.550
Hex size 2 MM	14.000
Hose cut off factor IN	0.860
Hose cut off factor MM	21.900
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.826
Product height mm	20.980
Product length in	1.800
Product length mm	45.720
Product material	Carbon steel
Product width in	0.826
Product width mm	20.980 mm
Seal material	Nitrile (NBR)
Thread sealant	No
Thread size 1	M12x1.5
Working pressure max BAR	350
Working pressure max PSI	5100
