Danfoss 4T20DS12

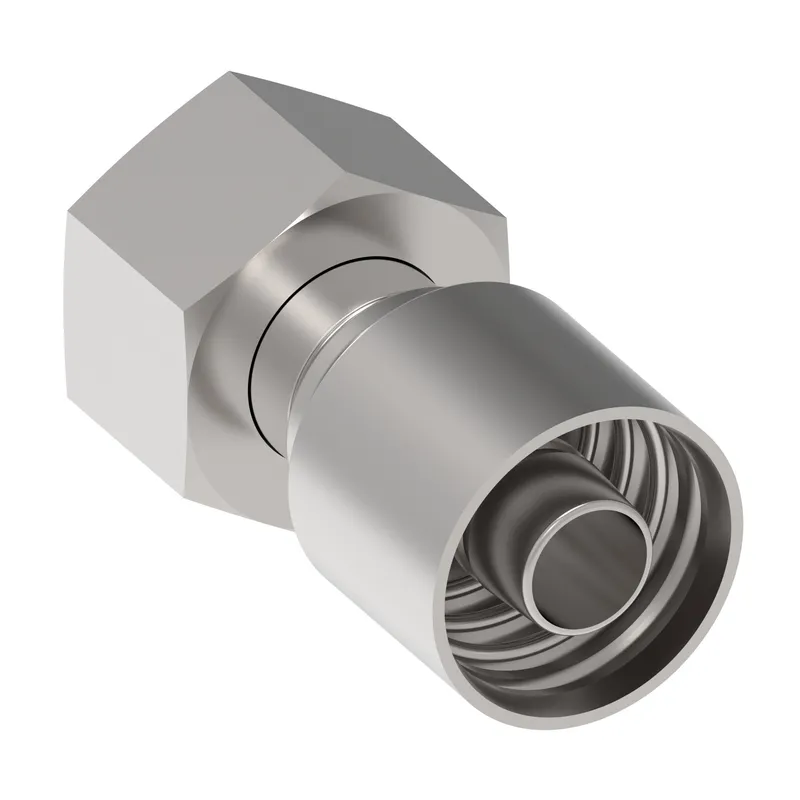

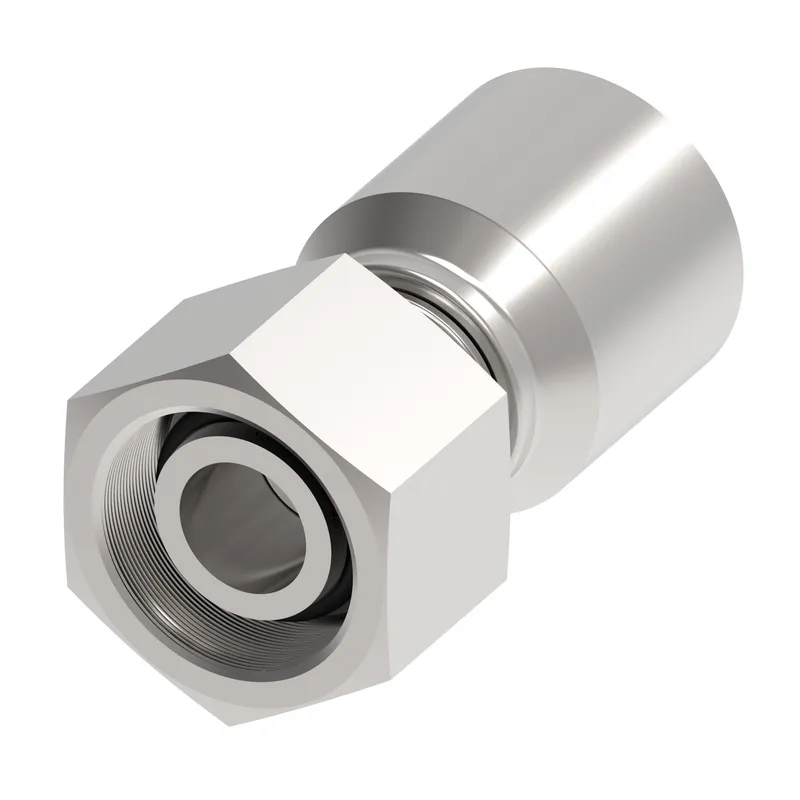

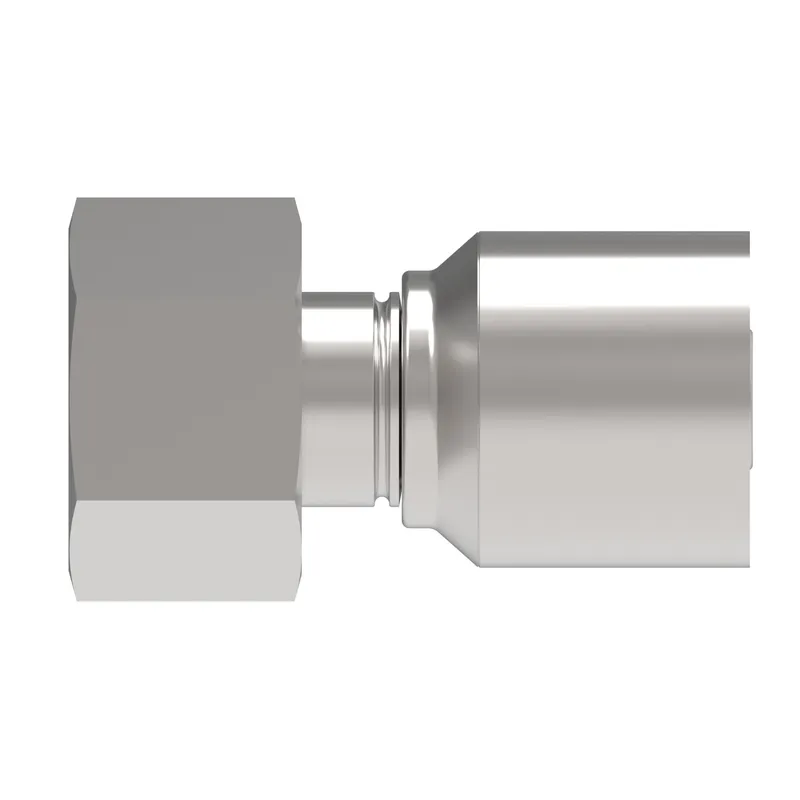

HOSE FTG, 4T/12, DKOH-B/20, CS, STR

MPN: 4T20DS12
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T20DS12?

Danfoss HOSE FTG, 4T/12, DKOH-B/20, CS, STR, manufacturer part number 4T20DS12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.830
A dimension MM	72.000
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.050
Construction Style	Crimp
End size 1	-20
End type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	1.813
Hex size 1 MM	46.000
Hose cut off factor IN	1.650
Hose cut off factor MM	41.800
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.811
Product height mm	46.000
Product length in	2.952
Product length mm	75.000
Product material	Carbon steel
Product width in	1.811
Product width mm	46.000 mm
Seal material	Nitrile (NBR)
Thread sealant	No
Thread size 1	M36x2
Working pressure max BAR	172
Working pressure max PSI	2500
