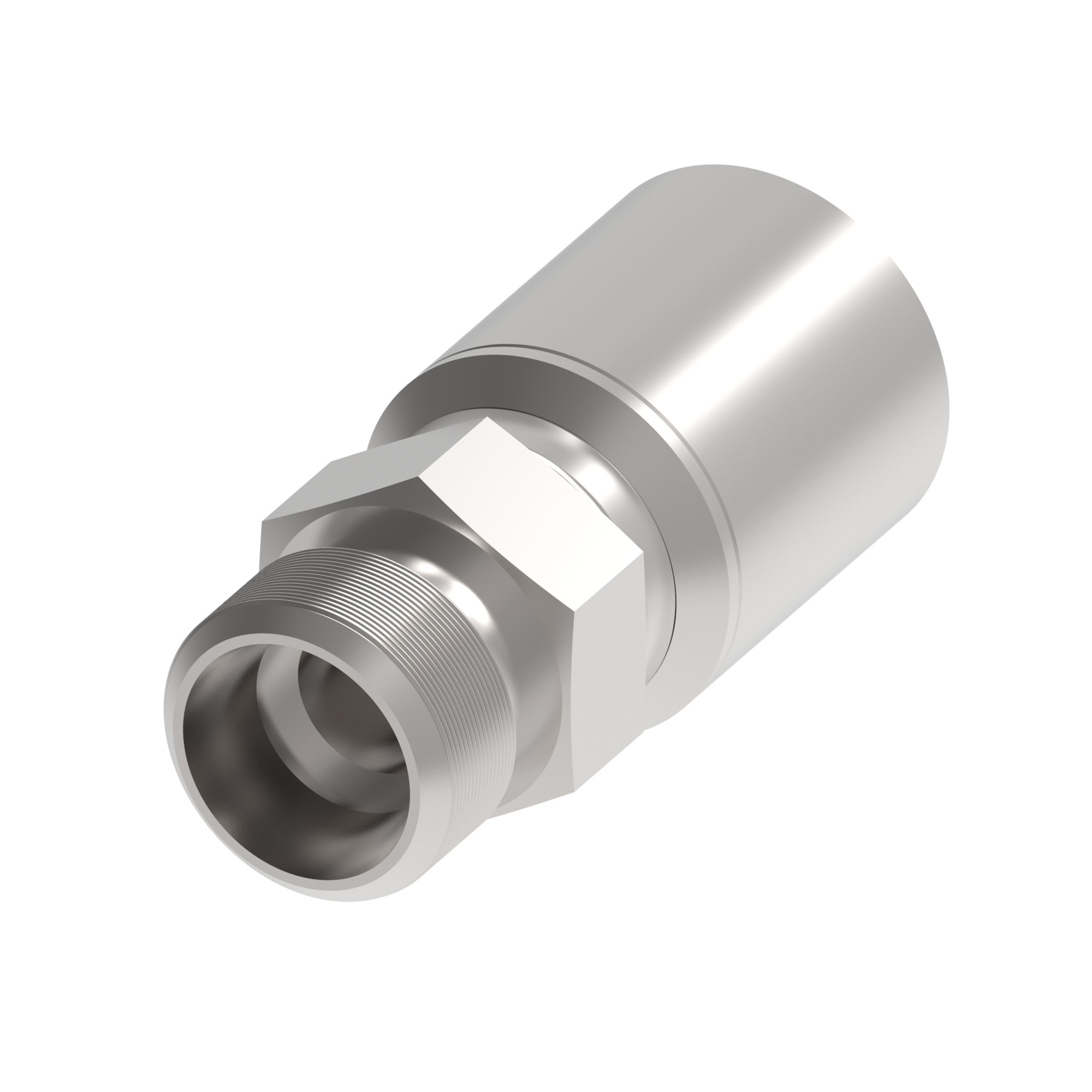

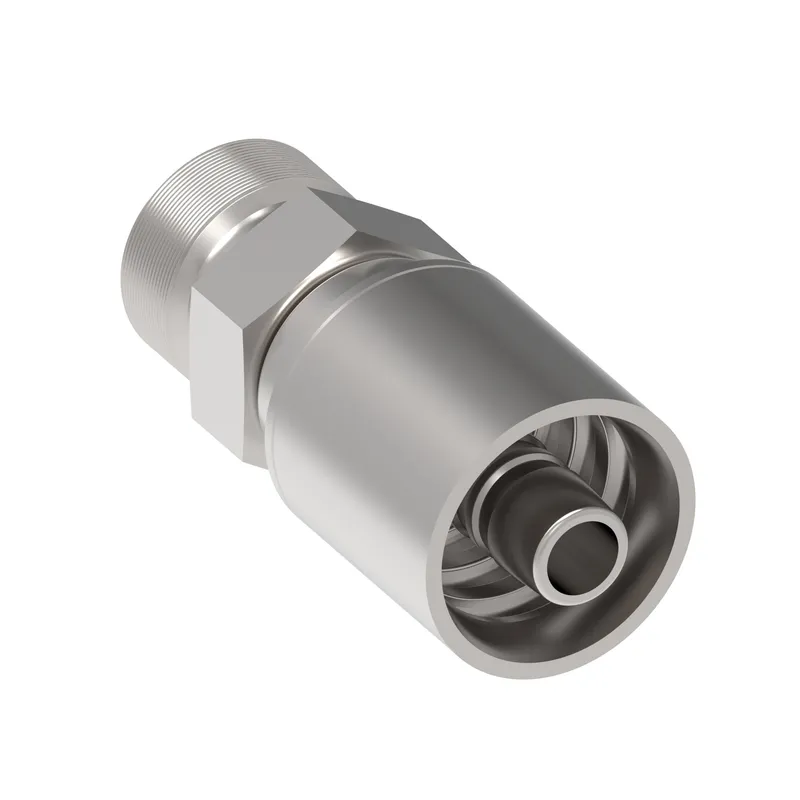

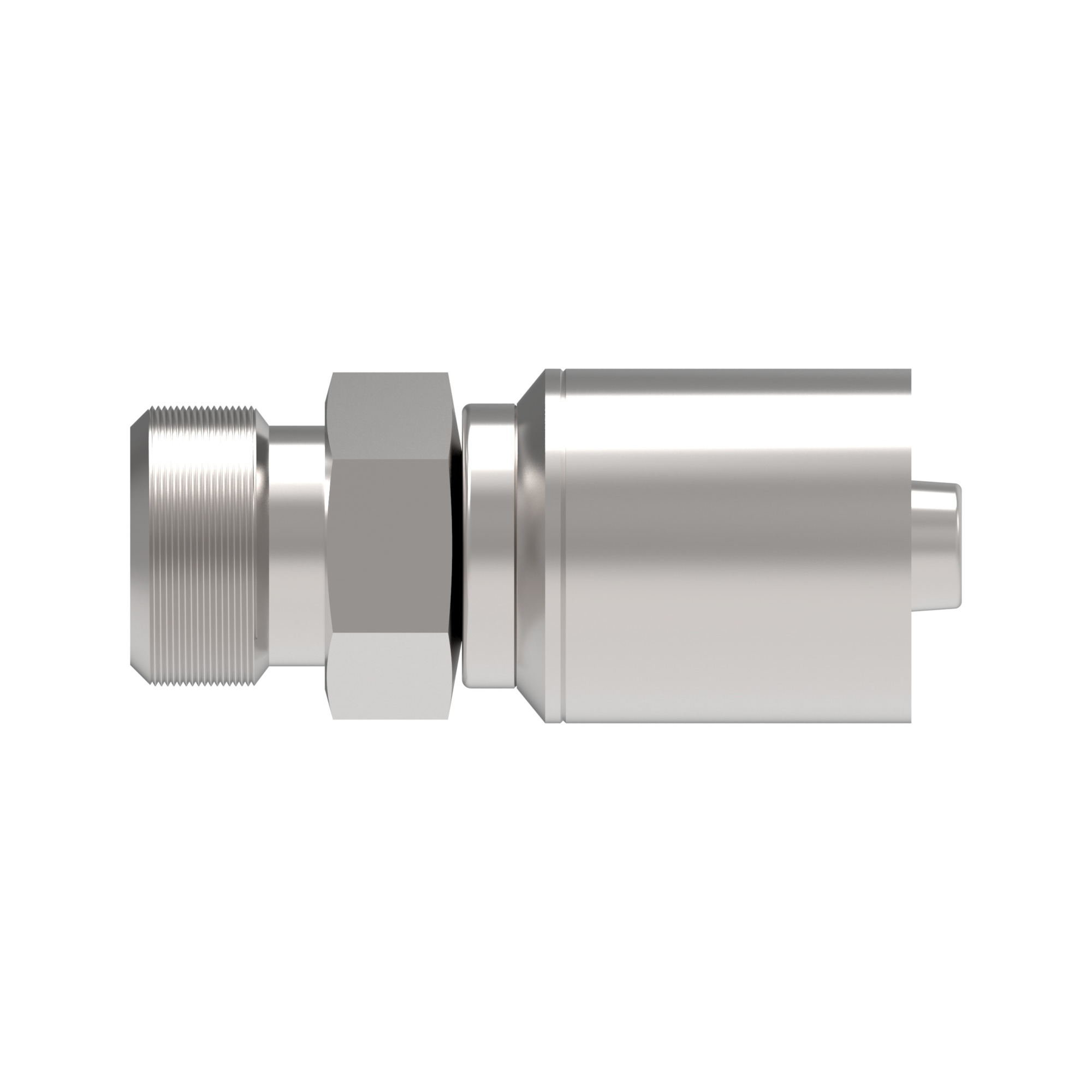

Danfoss 4T20DK12

HOSE FTG, 4T/12, DKL-M/20, CS, STR

MPN: 4T20DK12
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T20DK12?

Danfoss HOSE FTG, 4T/12, DKL-M/20, CS, STR, manufacturer part number 4T20DK12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.440
A dimension MM	62.000
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.050
Construction Style	Crimp
End size 1	-20
End type 1	24 deg. tube port light duty
Finish plating	Dura-Kote
Hex size 1 IN	1.259
Hex size 1 MM	32.000
Hose cut off factor IN	1.250
Hose cut off factor MM	31.800
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.259
Product height mm	32.000
Product length in	2.440
Product length mm	62.000
Product material	Carbon steel
Product width in	1.259
Product width mm	32.000 mm
Thread sealant	No
Thread size 1	M30x2
Working pressure max BAR	100
Working pressure max PSI	1450
