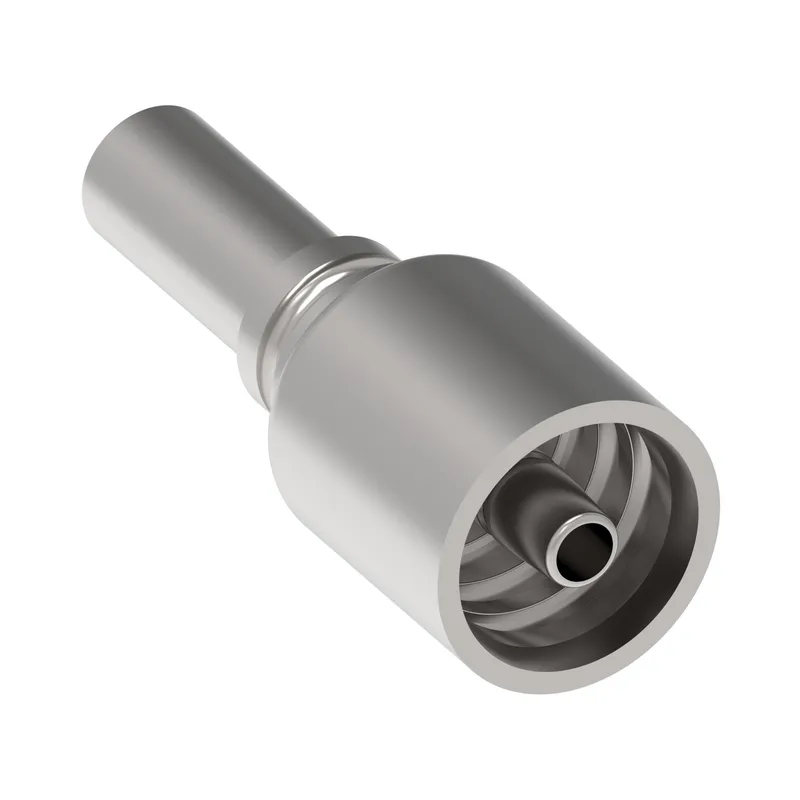

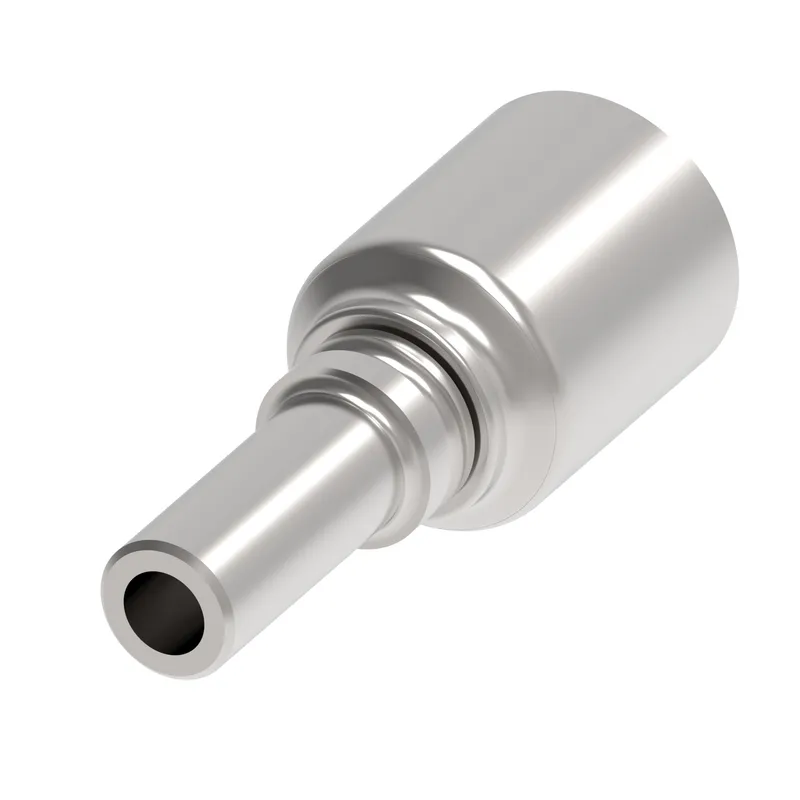

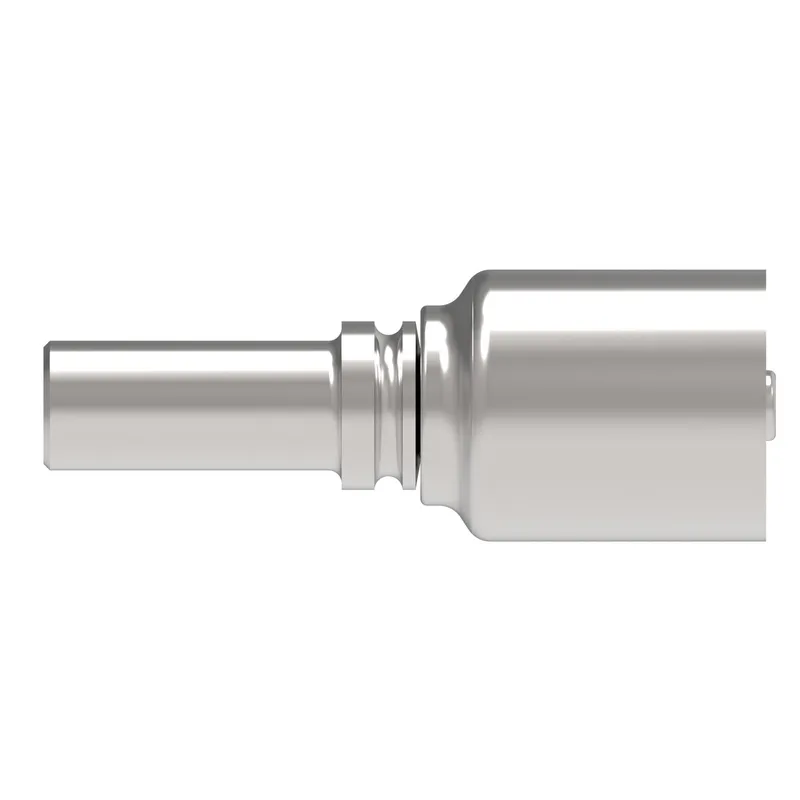

Danfoss 4T10LM4

HOSE FTG, 4T/04, STPIPE/10, CS, STR

MPN: 4T10LM4
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T10LM4?

Danfoss HOSE FTG, 4T/04, STPIPE/10, CS, STR, manufacturer part number 4T10LM4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.220
A dimension MM	56.500
Angle shape	Straight
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Construction Style	Crimp
End size 1	-10
End type 1	Standpipe Metric
Finish plating	Zinc plating
Hose cut off factor IN	1.300
Hose cut off factor MM	33.100
Hose size	-4
Inside diameter IN	0.160
Inside diameter MM	4.200
Product height in	0.787
Product height mm	20.000
Product length in	2.224
Product length mm	56.500
Product material	Carbon steel
Product width in	0.787
Product width mm	20.000 mm
Thread sealant	No
Working pressure max BAR	400
Working pressure max PSI	5800
