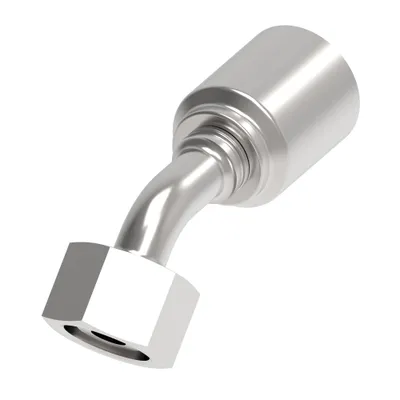

Danfoss 4T10DLA6

HOSE FTG, 4T/06, DKOL/10, CS, 45D

MPN: 4T10DLA6
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T10DLA6?

Danfoss HOSE FTG, 4T/06, DKOL/10, CS, 45D, manufacturer part number 4T10DLA6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.760
A dimension MM	70.000
Angle shape	45 Degree
Compatible hose ID IN	0.380
Compatible hose ID MM	9.525
Construction Style	Crimp
Drop dimension IN	0.690
Drop dimension MM	17.60
End size 1	-10
End type 1	24 deg. DKO swivel light duty
Finish plating	Protective oil
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hose cut off factor IN	1.760
Hose cut off factor MM	44.700
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.181
Product height mm	30.000
Product length in	2.952
Product length mm	75.000
Product material	Carbon steel
Product width in	0.984
Product width mm	25.000 mm
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	250
Working pressure max PSI	3650

4T10DLA6: frequently asked questions

When can 4T10DLA6 be shipped?

4T10DLA6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4T10DLA6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4T10DLA6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4T10DLA6, subject to availability and destination.
