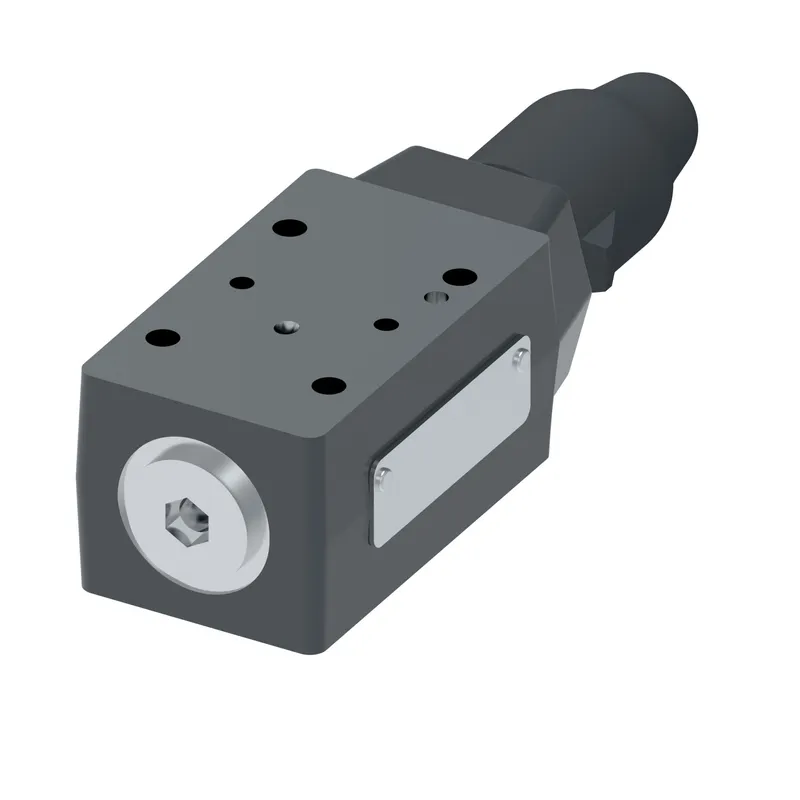

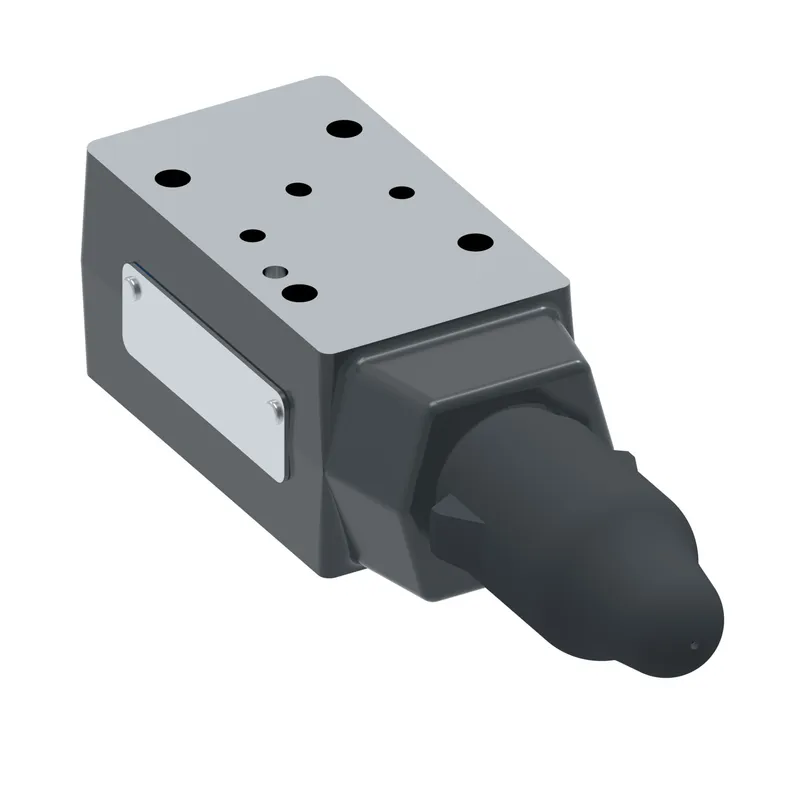

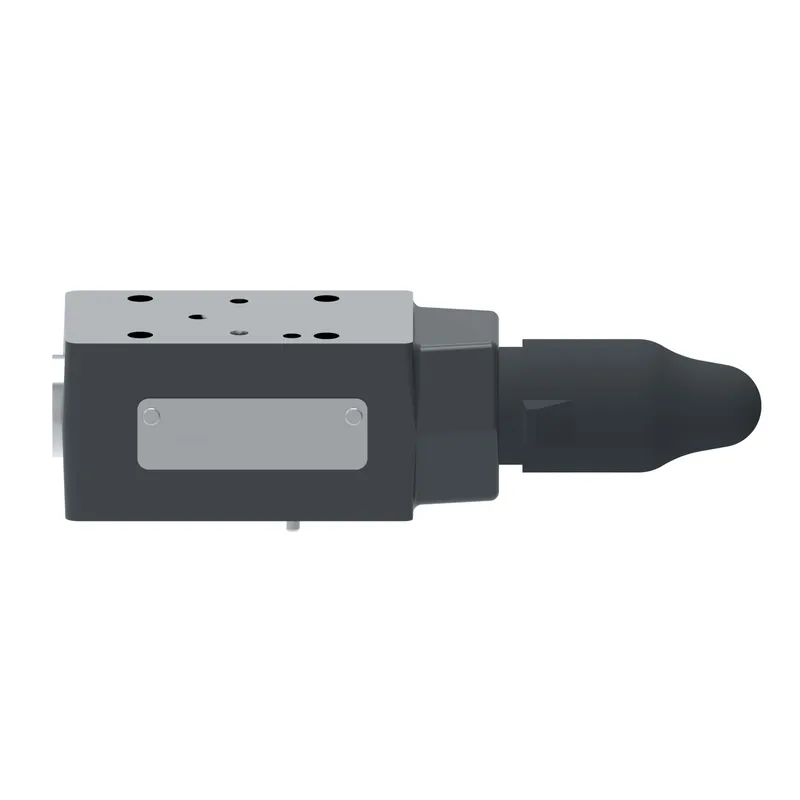

Danfoss 478993

CVGCA 3 W 125 10, CVGCA3W12510

MPN: 478993
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 478993?

Danfoss CVGCA 3 W 125 10, CVGCA3W12510, manufacturer part number 478993. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Wrench with hex locknut
Brand	Vickers by Danfoss
Design Series	10 Design
Flow rate LPM	5
Flow rate USGPM	1.3
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert type	Relief
Interface	Yes
Leakage	Standard
Model Code 1	CVGCA3W12510
Module Type	Relief A-T
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	1.570
Product height mm	39.878
Product length in	5.910
Product length mm	150.114
Product width in	1.930
Product width mm	49.022
Seal material	Buna-N
Size	ISO 4401, size 03
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve module
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

478993: frequently asked questions

When can 478993 be shipped?

478993 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 478993 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 478993 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 478993, subject to availability and destination.
