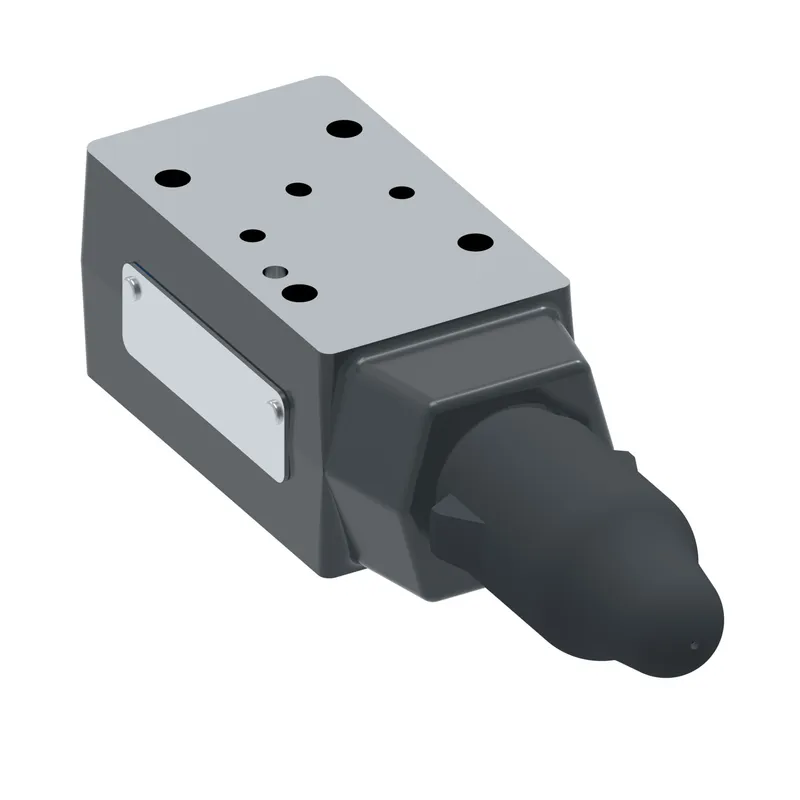

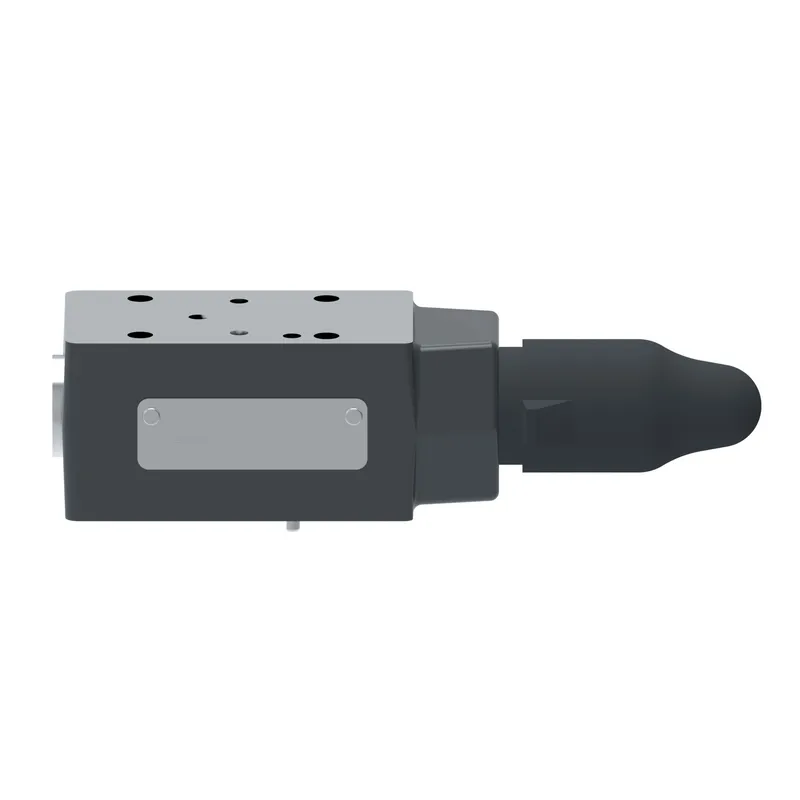

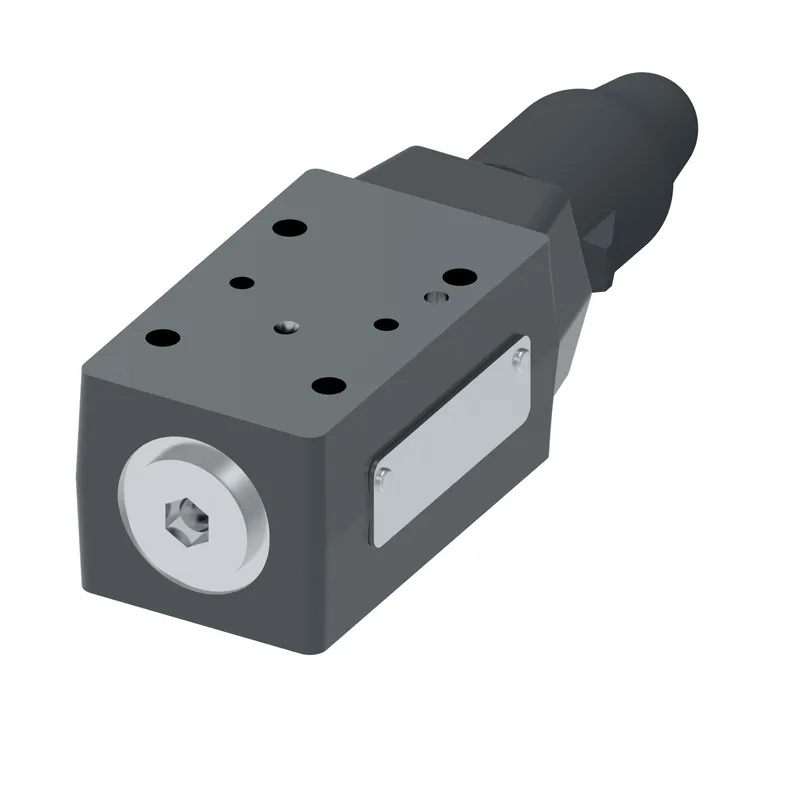

Danfoss 478885

CVGCPA 3 W 350 10, CVGCPA3W35010

MPN: 478885
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 478885?

Danfoss CVGCPA 3 W 350 10, CVGCPA3W35010, manufacturer part number 478885. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Wrench with hex locknut
Brand	Vickers by Danfoss
Design Series	10 Design
Flow rate LPM	5
Flow rate USGPM	1.3
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert type	Relief
Interface	Yes
Leakage	Standard
Model Code 1	CVGCPA3W35010
Module Type	Relief P & A-T
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000.00
Seal material	Buna-N
Size	ISO 4401, size 03
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve module
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
