What is the Danfoss 421AK02245C?

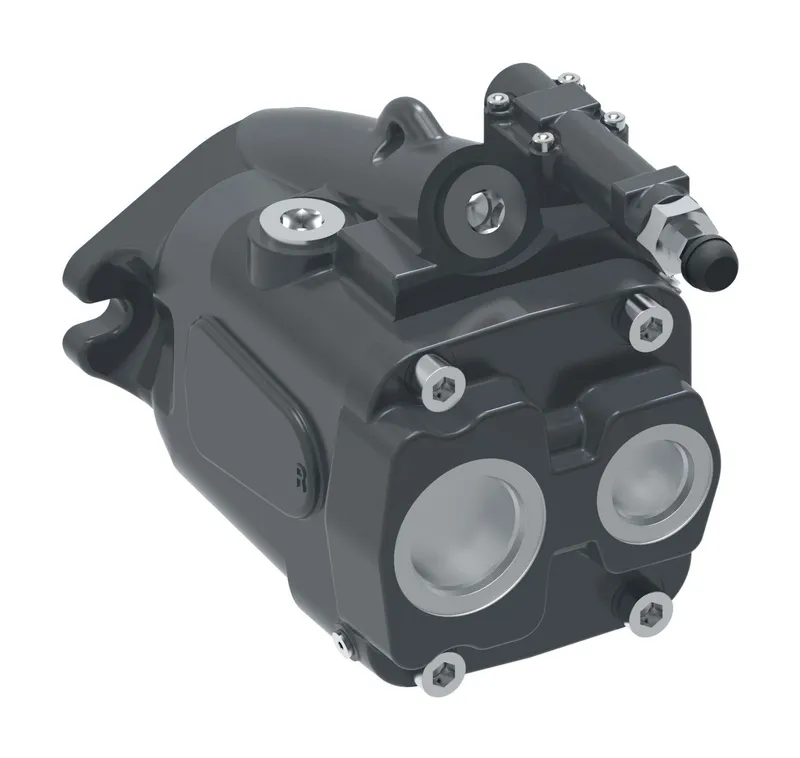

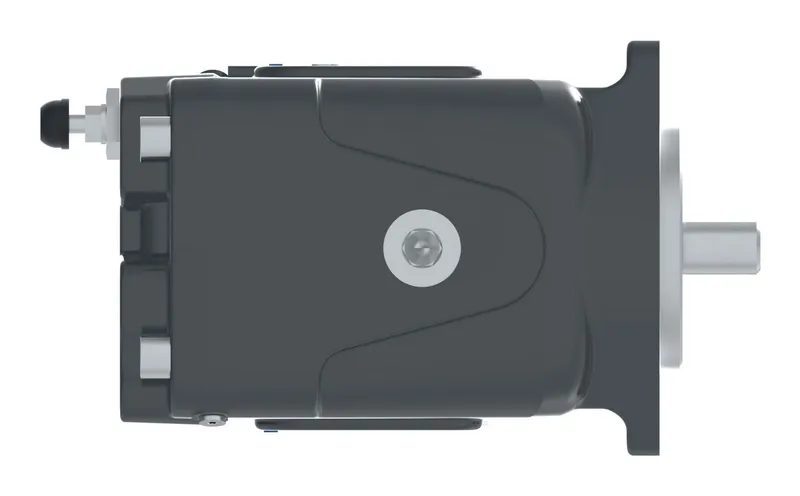

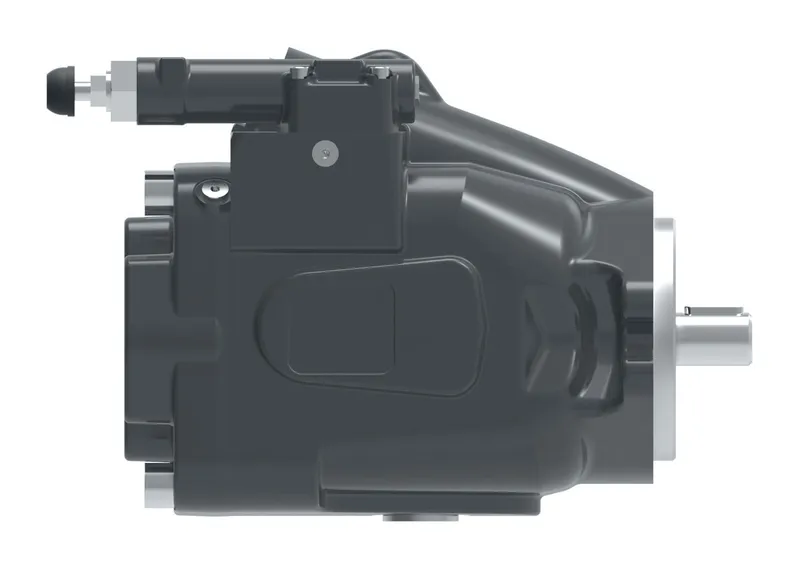

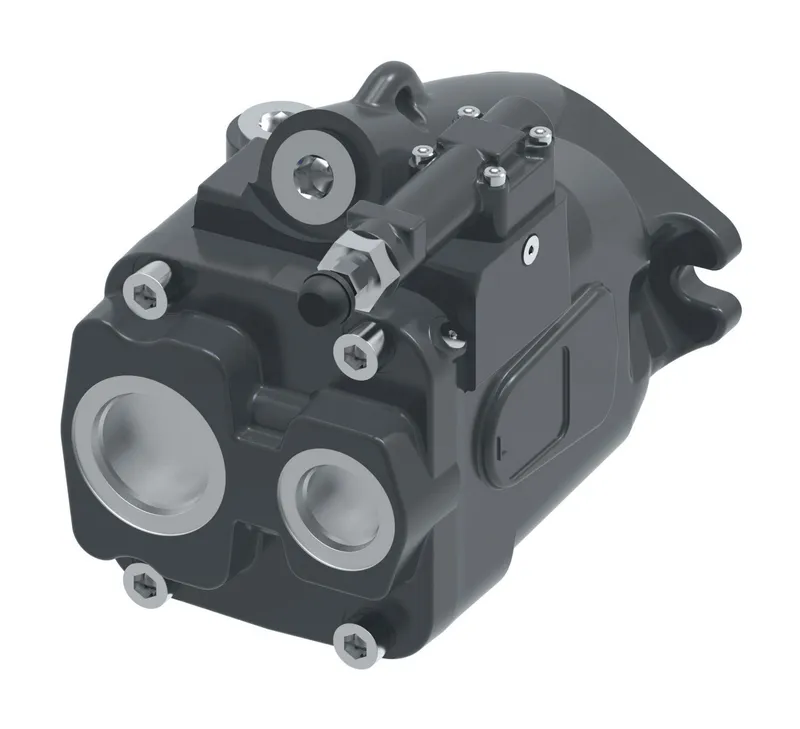

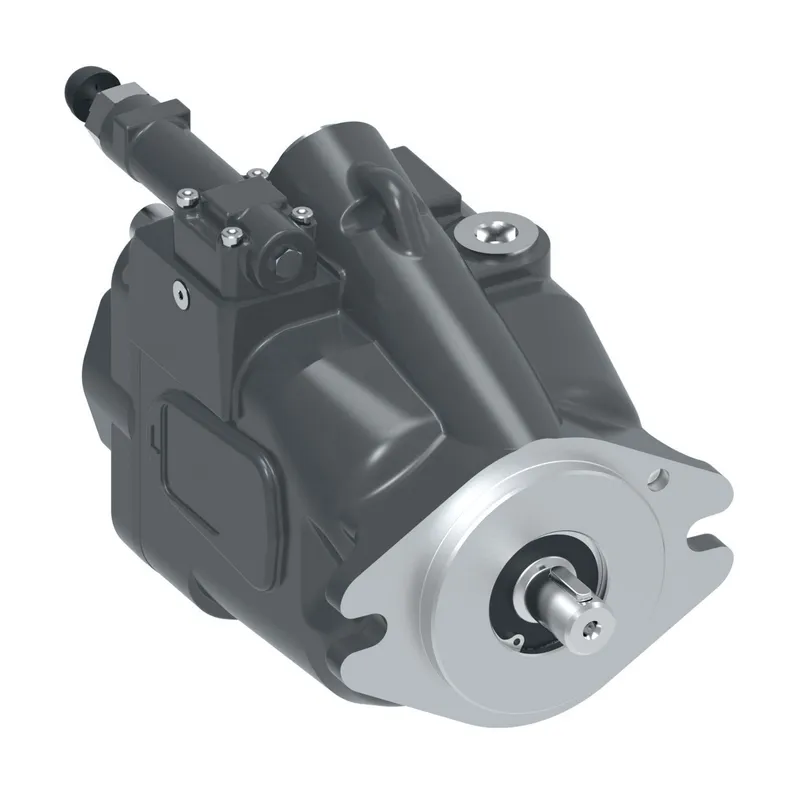

Danfoss 3.80 CID(62CC)420 CODE C, manufacturer part number 421AK02245C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Aux mount output shaftNO AUXILIARY MOUNTING FEATURES
CODE TITLEPRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special featuresNO CONTROL SPECIAL FEATURES
Controller typePRESSURE & FLOW COMPENSATOR WITH M12 X 1.5 METRIC O-RING LOAD SENSE PORT (RIGHT SIDE)
Design codeTHIRD DESIGN
Diagnostic pressure portsM12 X 1.5 METRIC O-RING PORTS - SUCTION & PRESSURE PORTS - PLUGGED
Displacement62.3 cm3/r [3.80 in3/r]
Drain port size locationM27 X 2 METRIC O-RING PORT - LEFT SIDE (SWASH SENSOR BOSS) M27 X 2 METRIC O-RING PORTS TOP & BOTTOM (PLUGGED)
Flow comp rpc setting20.68-23.44 bar [300-340 lbf/in2]
Front mounting input shaft2 BOLT B (SAE J744-101-2) WITH 15 TOOTH 16/32 SPLINE (ANSI B92.1-1996 MOD) SHAFT EXT 46 [1.81]
Identification packagingJOHN DEERE - MARK EATON PRODUCT NUMBER & MODEL CODE UP TO ROTATION & CUSTOMER PRODUCT NUMBER ON LABEL
Input shaft rotationLEFT-HAND ROTATION (CCW) LEFT SIDE SUCTION PORT RIGHT SIDE PRESSURE PORT
Main ports size locationSIDE PORTS; SUCTION - 2.00 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH M12 X 1.75 THREAD; PRESSURE - 1.004-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH M10 X 1.5 THREAD
Maximum displacement optionSTANDARD DISPLACEMENT (AS GIVEN IN CODE TITLE)
PaintGREEN PER SPEC 209-13K
PRESSURE COMP SETTING210.3-217.2 bar [3050-3150 lbf/in2]
PUMP SPECIAL FEATURESNO PUMP SPECIAL FEATURES
Shaft sealDOUBLE TWO-WAY SHAFT SEAL FLUOROCARBON W/ VHO FILTER
Torque control settingNO TORQUE CONTROL OR SECONDARY COMPENSATOR
