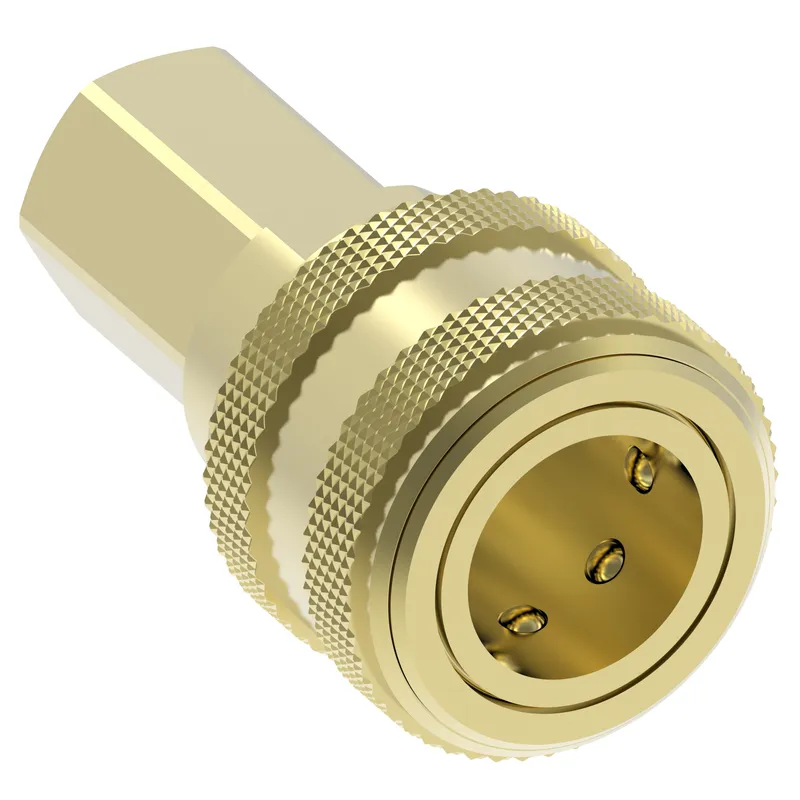

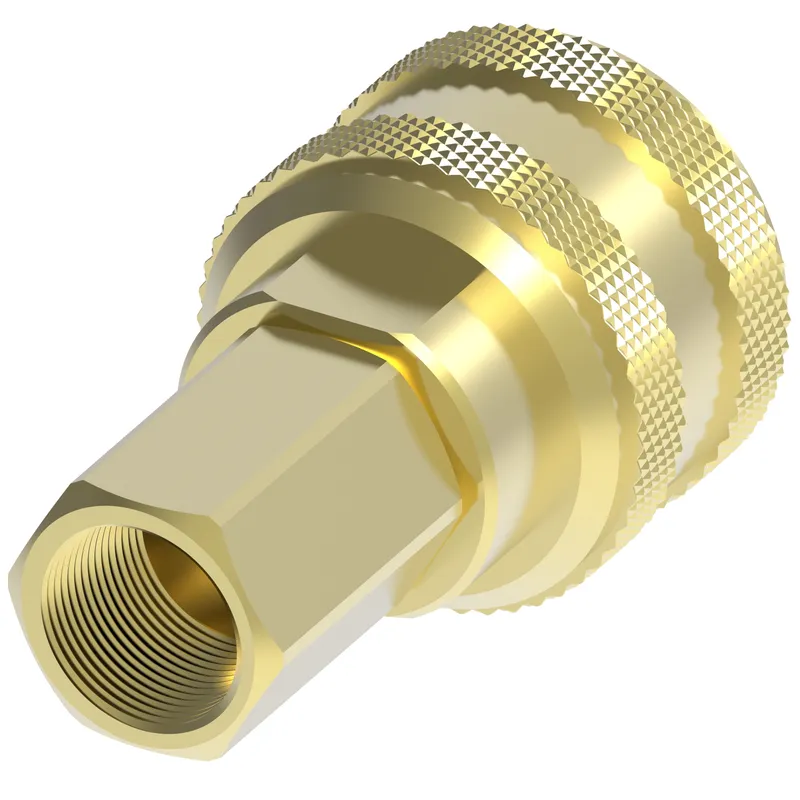

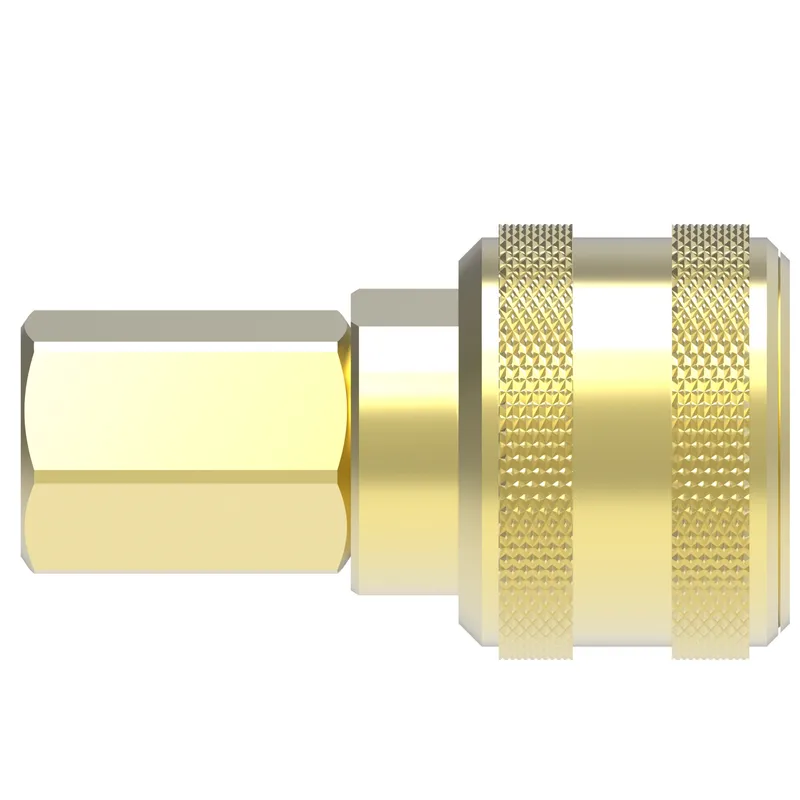

Cplng, 4000 Series FEMALE, BRASS

Name: Cplng, 4000 Series FEMALE, BRASS
Brand: Danfoss (Drives)
SKU: 4200BV143

MPN: 4200BV143 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 4200BV143 be shipped?

4200BV143 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4200BV143 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4200BV143 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4200BV143, subject to availability and destination.

Danfoss Cplng, 4000 Series FEMALE, BRASS, manufacturer part number 4200BV143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146166487
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	276
Burst pressure min psi	4000
Connection style	Manual connect
End size 1	-6
Flow rate GPM	336.56
Flow rate LPM	1274.02
Hex size 1 IN	0.880
Hex size 1 MM	22.352
Item type	Female half
Product material	Brass
Safety locking mechanism	Pin lock
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Working pressure max psi	1000
Working pressure max BAR	69
Working temperature max C	204
Working temperature max F	400
Working temperature min C	-26
Working temperature min F	-15
