Danfoss 42

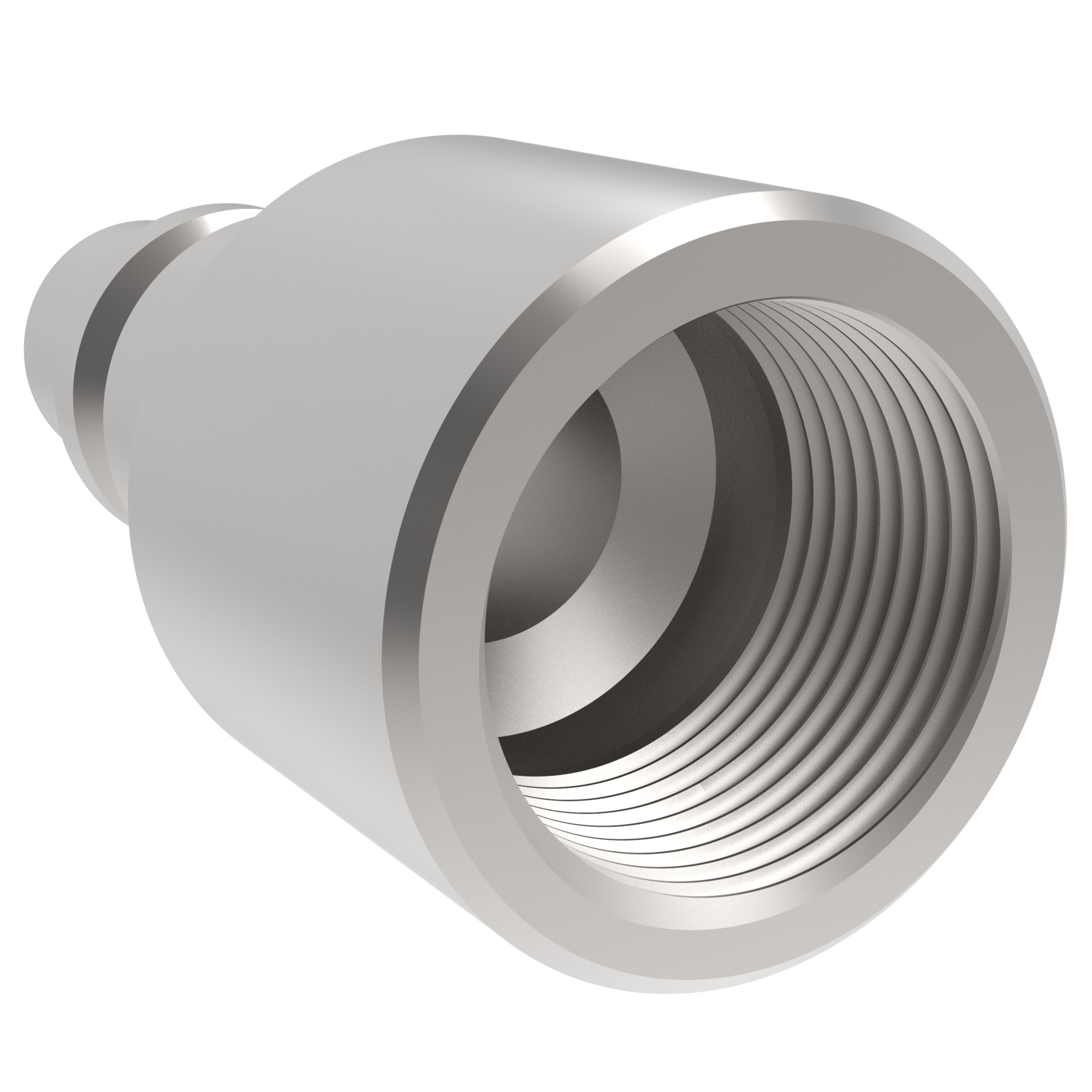

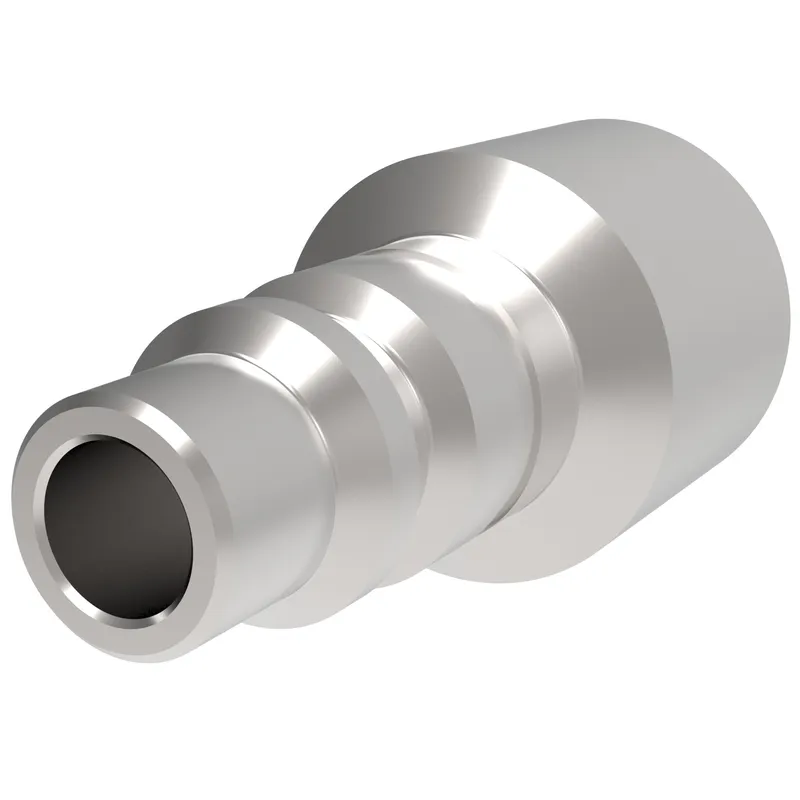

COUPLING,400,M,3/8,B,-6NPT

MPN: 42
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 42?

Danfoss COUPLING,400,M,3/8,B,-6NPT, manufacturer part number 42. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789348173
Angle shape	Straight
Body size	3/8
Burst pressure min bar	276
Burst pressure min psi	4000
Connection style	Manual connect
End size 2	-6
End type 1	Male push to connect
End type 2	Male pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	336.00
Flow rate LPM	1271.90
Fluid compatibility	Compressed air, Gases and liquids
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Male half
Latch type	Push/pull
Product height in	0.790
Product height mm	20.066
Product length in	1.880
Product length mm	47.752
Product material	Carbon steel
Product width in	0.790
Product width mm	20.066 mm
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Valve type	2 way
Working pressure max psi	1000
Working pressure max BAR	69
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

42: frequently asked questions

When can 42 be shipped?

42 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 42 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 42 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 42, subject to availability and destination.
