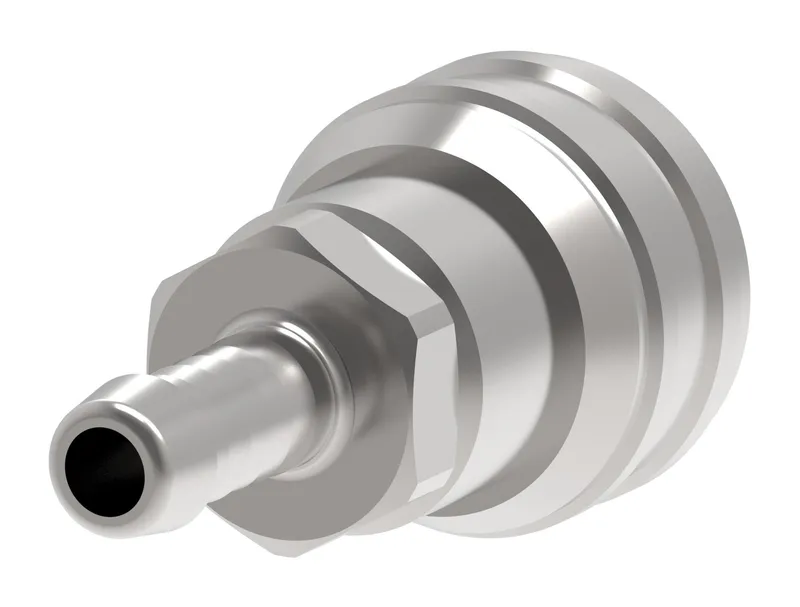

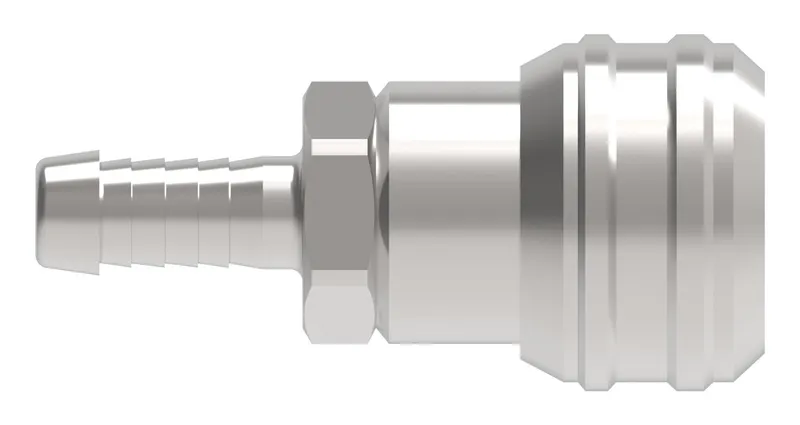

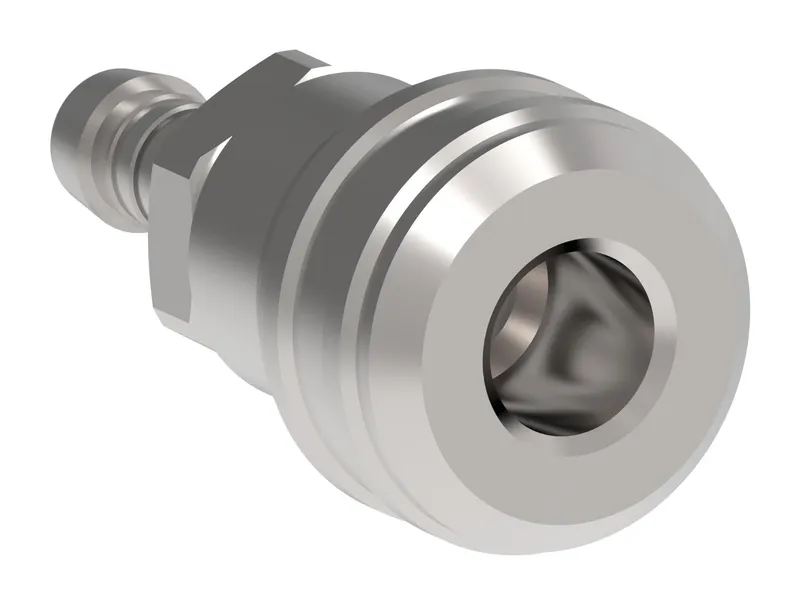

Danfoss 40800

COUPLING,4000,F,3/8,B,-8BARB

MPN: 40800
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 40800?

Danfoss COUPLING,4000,F,3/8,B,-8BARB, manufacturer part number 40800. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146102133
Angle shape	Straight
Body size	1/8
Burst pressure min bar	276
Burst pressure min psi	4000
Connection style	Manual connect
End type 1	Female Push to Connect
End type 2	Line/hose/tube
Flow rate GPM	336.56
Flow rate LPM	1274.02
Fluid compatibility	Air, Gases and liquids
Item type	Female half
Latch type	Push/pull
Product height in	1.380
Product height mm	35.052
Product length in	2.820
Product length mm	71.628
Product material	Brass
Product width in	1.380
Product width mm	35.052 mm
Safety locking mechanism	Pin lock
Seal material	Nitrile (NBR)
Valve type	2 way
Working pressure max psi	1000
Working pressure max BAR	69
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
