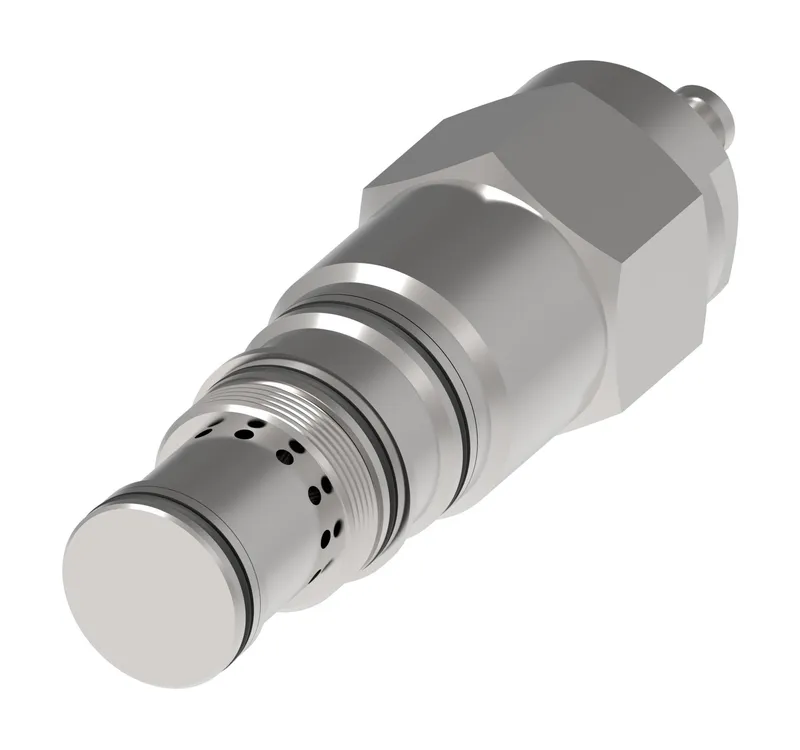

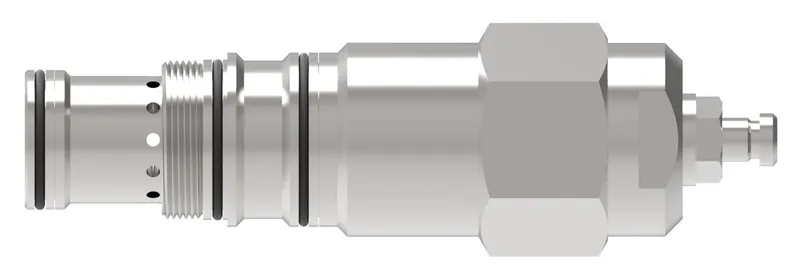

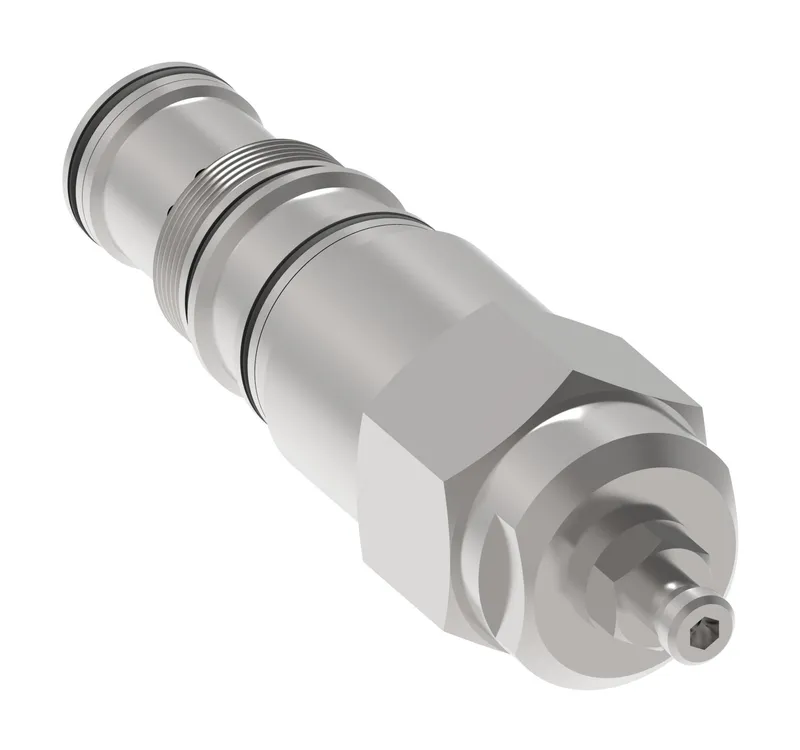

Danfoss 406AA03135A

1SEL140F40S300/50 OVERCENTRE CARTRIDGE, 1SEL140-F-40-S-300-50

MPN: 406AA03135A
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 406AA03135A?

Danfoss 1SEL140F40S300/50 OVERCENTRE CARTRIDGE, 1SEL140-F-40-S-300-50, manufacturer part number 406AA03135A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Screw
Brand	Danfoss
Cavity	A20094
Flow rate LPM	140.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Counterbalance Valve
Housing	No
Installation type	Screw-in Cartridge
Leakage	0.25 cc/min
Max pilot adjust p BAR	54.098
Max relief press BAR	380.000
Min pilot adjust p BAR	44.262
Model Code 1	1SEL140-F-40-S-300-50
Number of housing ports	3
Number of valve ports	3
Operating temperature	-30 C to 90 C (-22 to 194 F)
Operation	Pilot operated
Pilot ratio	6.1:1
Port size	None
Port type	Cartridge Only
Pressure rating BAR	350.000
Product height in	2.080
Product height mm	52.832
Product length in	6.730
Product length mm	170.942
Product width in	1.259
Product width mm	31.979 mm
Recommended filtration level	18/16/13
Seal type	Nitrile
Special features	None
Style	Pilot assisted relief w check
