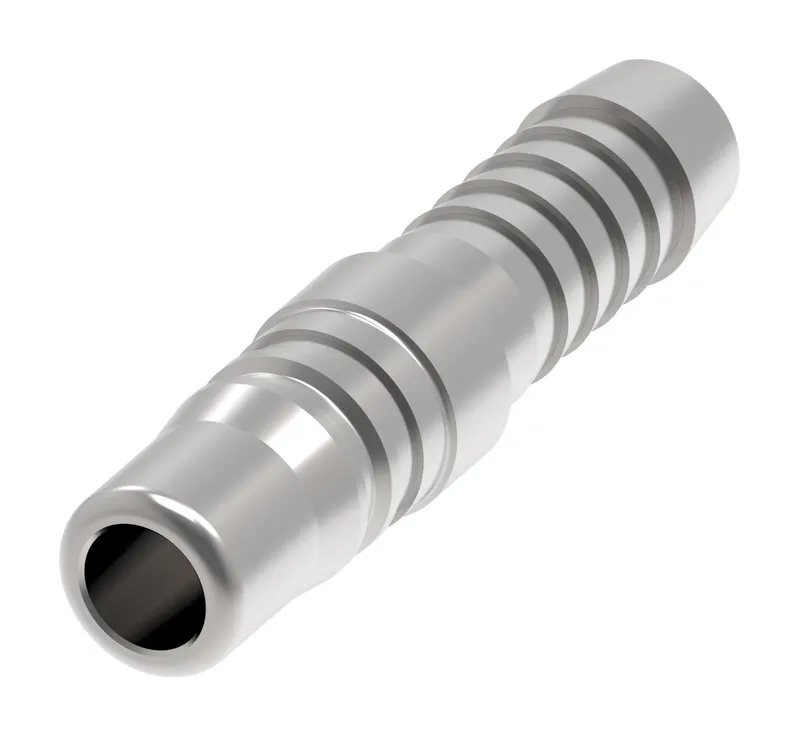

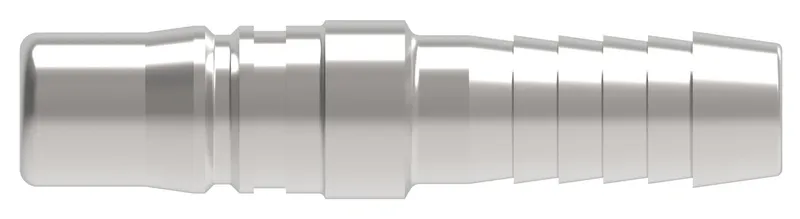

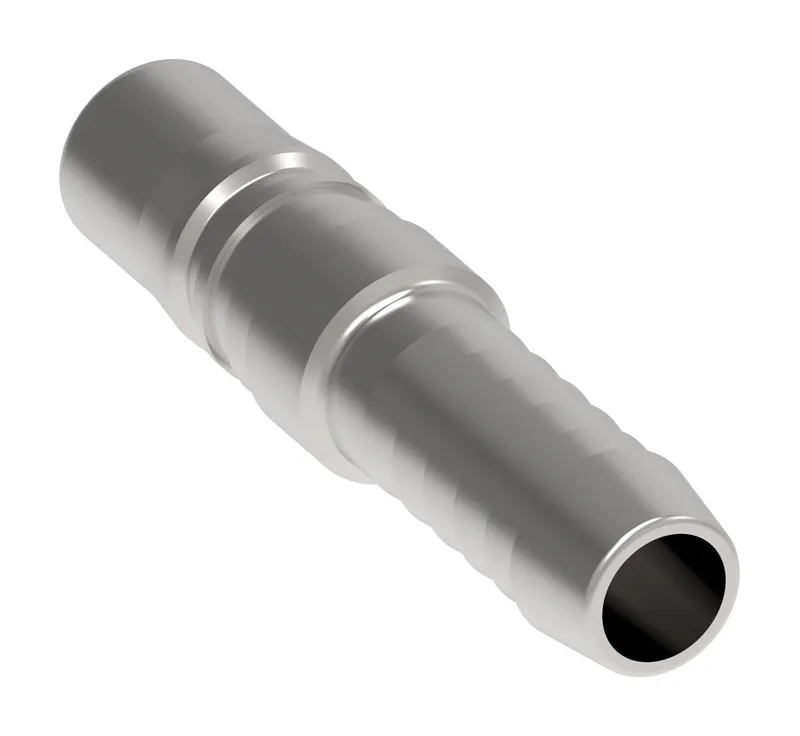

Danfoss 3L195G

Cplng, 3RL SERIES Male

MPN: 3L195G
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 3L195G?

Danfoss Cplng, 3RL SERIES Male, manufacturer part number 3L195G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146101518
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	83
Burst pressure min psi	1200
Connection style	Manual connect
End type 1	Male push to connect
End type 2	Line/hose/tube
Finish plating	Zinc
Flow rate GPM	594.00
Flow rate LPM	2248.53
Fluid compatibility	Compressed air
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	Ring lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Working pressure max psi	300
Working pressure max BAR	21
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
