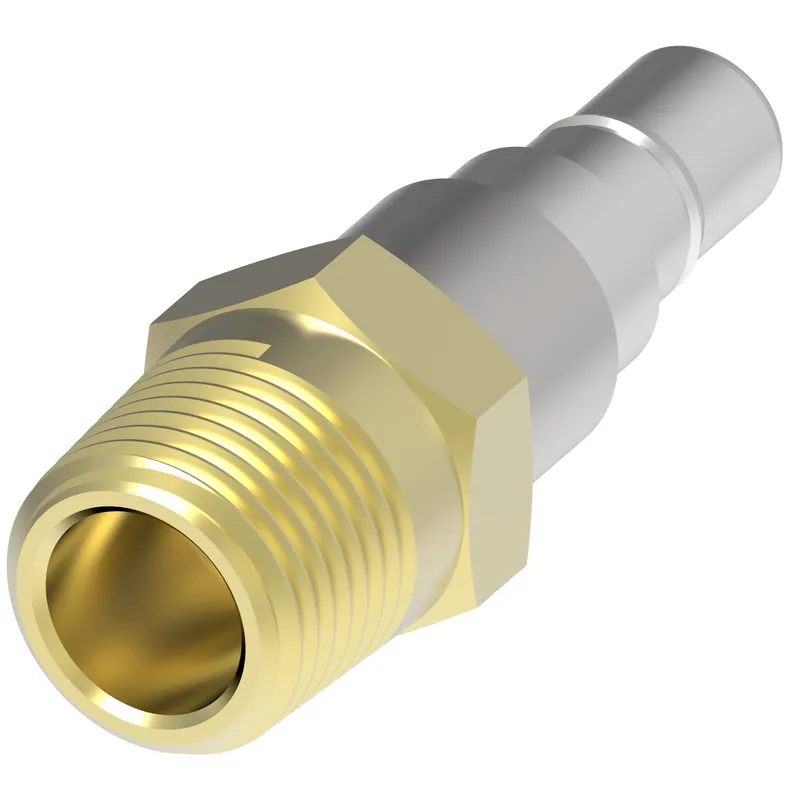

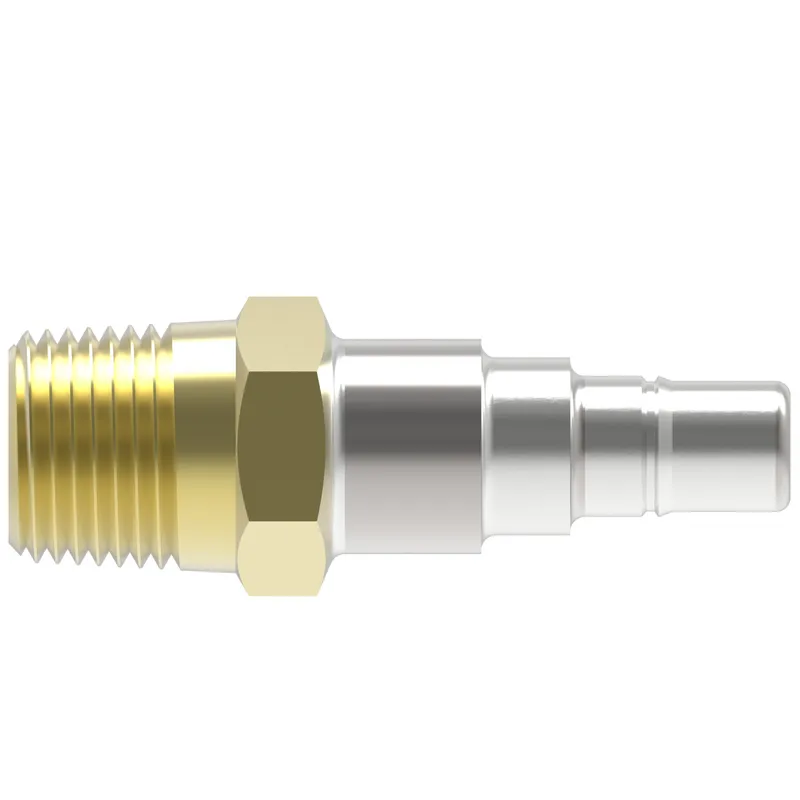

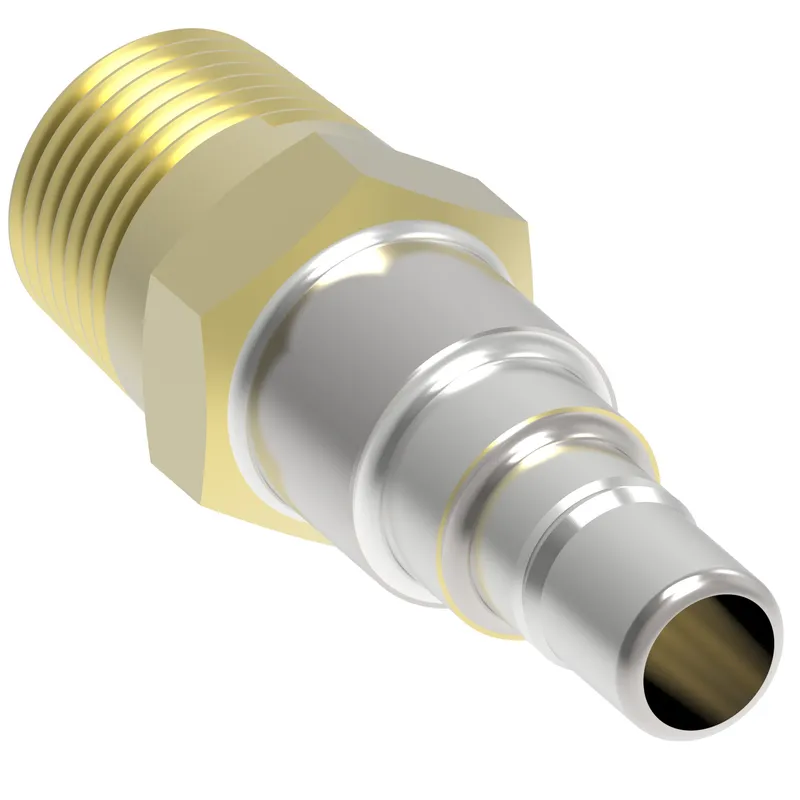

What is the Danfoss 3L16G?

Danfoss Cplng, 3RL SERIES, manufacturer part number 3L16G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146165152
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	83
Burst pressure min psi	1200
Connection style	Manual connect
End size 2	-4
End type 1	Male push to connect
End type 2	Female pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	594.00
Flow rate LPM	2248.53
Fluid compatibility	Compressed air
Hex size 1 IN	0.880
Hex size 1 MM	22.352
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	Ring lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Working pressure max psi	300
Working pressure max BAR	21
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
