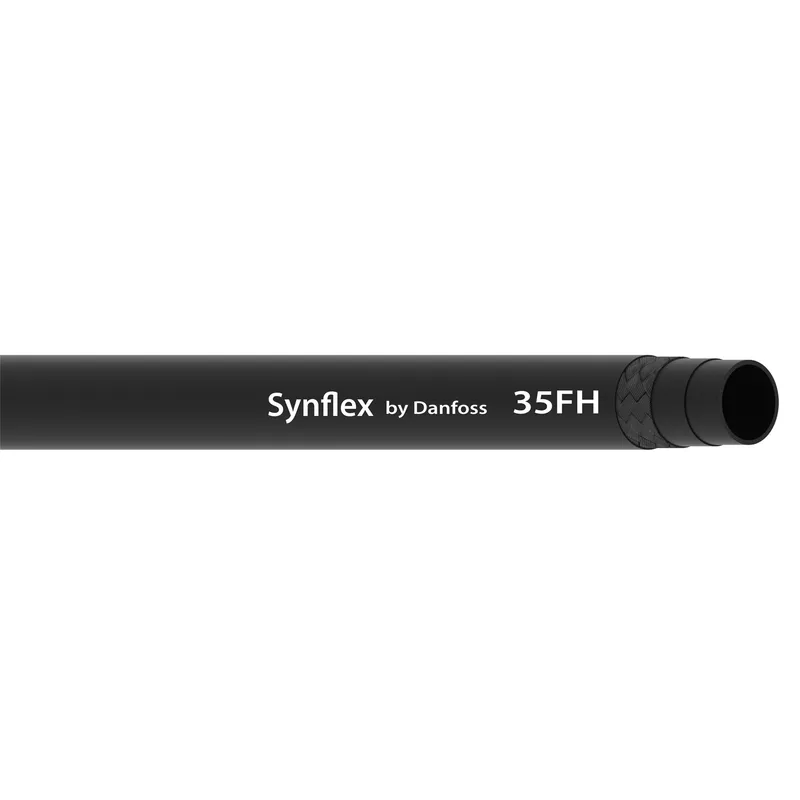

Danfoss 35FH-50203-001
Tube CARB FUEL 5/16ID 300FT RL OF 35FH50
- MPN
- 35FH-50203-001
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 35FH-50203-001?
Danfoss Tube CARB FUEL 5/16ID 300FT RL OF 35FH50, manufacturer part number 35FH-50203-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789355591 |
| Bend radius min (inch) | 1.500 |
| Bend radius min (mm) | 38.100 |
| Brand | Synflex by Danfoss |
| Burst pressure (bar) | 48 |
| Burst pressure (psi) | 700 |
| Color | Black |
| Compliances | SAE J1527B1, SAE J30R6 |
| Conductivity | Non-conductive |
| Cover material | Polyvinyl chloride (PVC) |
| Inside diameter (inch) | 0.31 |
| Inside diameter (mm) | 7.87 |
| Outside diameter (inch) | 0.56 |
| Outside diameter (mm) | 14.22 |
| Package form | Reel |
| Qualified hose fittings | 4738-4743 |
| Reinforcement material | Fabric |
| Size | -5 |
| Tube material | Thermoplastic |
| Tube wall thickness (inch) | 0.13 |
| Tube wall thickness (mm) | 3.18 |
| Working pressure max (bar) | 12 |
| Working pressure max (psi) | 175 |
| Working temperature max (C) | 71 |
| Working temperature max (F) | 160.0 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
