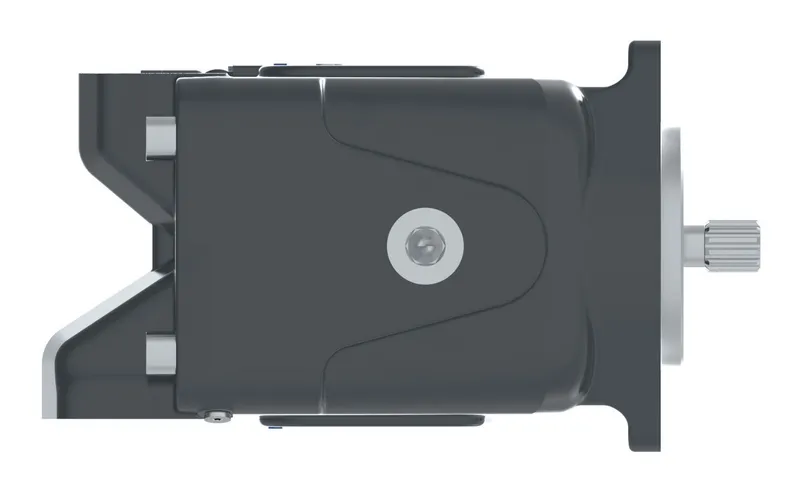

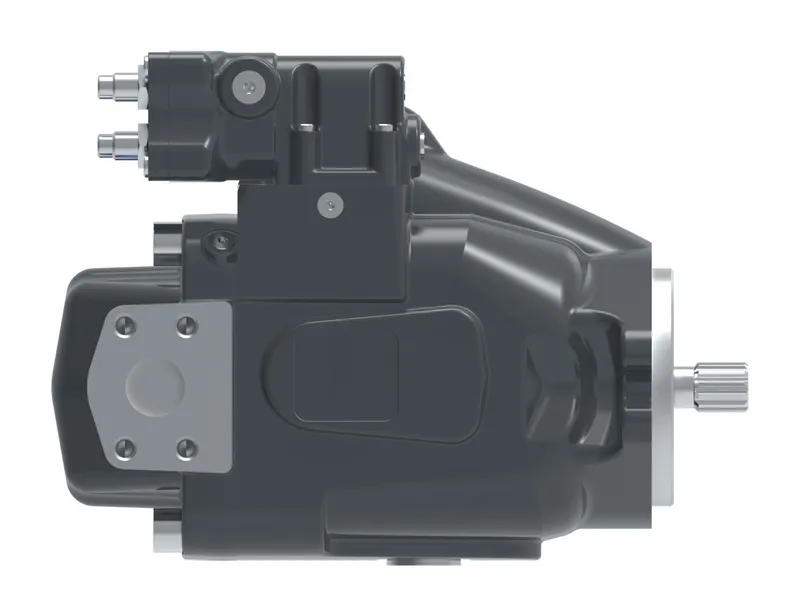

TANDEM, B2B 7240OPV49, CW, ADVRA3AMFHHC2C023AMFHH0E00A0000B0A

Name: TANDEM, B2B 7240OPV49, CW, ADVRA3AMFHHC2C023AMFHH0E00A0000B0A
Brand: Danfoss (Drives)
SKU: 358AK00055A

MPN: 358AK00055A · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mobile closed-circuit piston pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 358AK00055A be shipped?

358AK00055A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 358AK00055A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 358AK00055A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 358AK00055A, subject to availability and destination.

Danfoss TANDEM, B2B 7240OPV49, CW, ADVRA3AMFHHC2C023AMFHH0E00A0000B0A, manufacturer part number 358AK00055A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additional functions	Diameter 0.91 [0.036] orifice (P) diameter 1.85 [.073] orifice (S1 & S2)
Aux port and bypass valve	.750-16 UNF-2B SAE o-ring ports - left (C1) and right (C2) sides, right side plugged; bypass valve front and rear
Auxiliary mount features	Dual SAE J744 flange 101-2 (2-bolt B) accepts 13 tooth 16/32 pitch spline with 41.2 [1.62] shaft extention (no coupler required)
Auxiliary pump number	None
Brand	Danfoss
Charge pump	No charge pump
Charge relief set and routing	20.68-22.41 bar [300-350 lbf/in2]; relieved to case
CODE TITLE	Dual servo controlled variable displacement axial piston pump with SAE J744 flange 101-2 (2 bolt B)
Control assembly front	Manual control,wide band neutral, neutral lockout switch, destroke valve with 12 VDC coil (normally open) and deutsch connector
Control assembly rear	Manual control,wide band neutral, neutral lockout switch, destroke valve with 12 VDC coil (normally open) and deutsch connector
Design code	A
Disp and rotating kit front	49.2 cm3/r [3.00 in3/r]; rotating kit-high pressure
Disp and rotating kit rear	49.2 cm3/r [3.00 in3/r]; rotating kit-high pressure
Drain port size location front	1.0625-12 UN-2B SAE o-ring port - left (D1) & right (D2) housing
Drain port size location rear	None
Flow rate gpm	46.8
Flow rate lpm	177.0
Identification	Standard
Input shaft	15 tooth external spline, 16/32 pitch, 24.981 [.9835] major diameter; 46 [1.81] shaft extension
Input shaft rotation	Righthand rotation (CW)
Main ports (A and B)	4x 1.0625-12 UN-2B SAE o-ring ports; front ports right, rear ports left
Maximum output speed	3600
Maximum temperature C	107.00
Maximum temperature F	225.00
Model Code 1	ADVRA3AMFHHC2C023AMFHH0E00A000
Model Code 2	0B0A
Mounting flange	2-bolt-B
Note	For more info, contact Danfoss
Output torque lbf-in2	1551.8
Output torque Nm	175.3
Paint	Black per spec 209-13B
Product height in	10.450
Product height mm	265.430
Product length in	20.940
Product length mm	531.876
Product width in	10.980
Relief set main port A front	224.1 bar [3250 lbf/in2]
Relief set main port A rear	224.1 bar [3250 lbf/in2]
Relief set main port B front	224.1 bar [3250 lbf/in2]
Relief set main port B rear	224.1 bar [3250 lbf/in2]
Special features	None
Valve plate front	Type 1
Valve plate rear	Type 1
Working pressure bar	224
Working pressure psi	3250
