Danfoss 3500X12

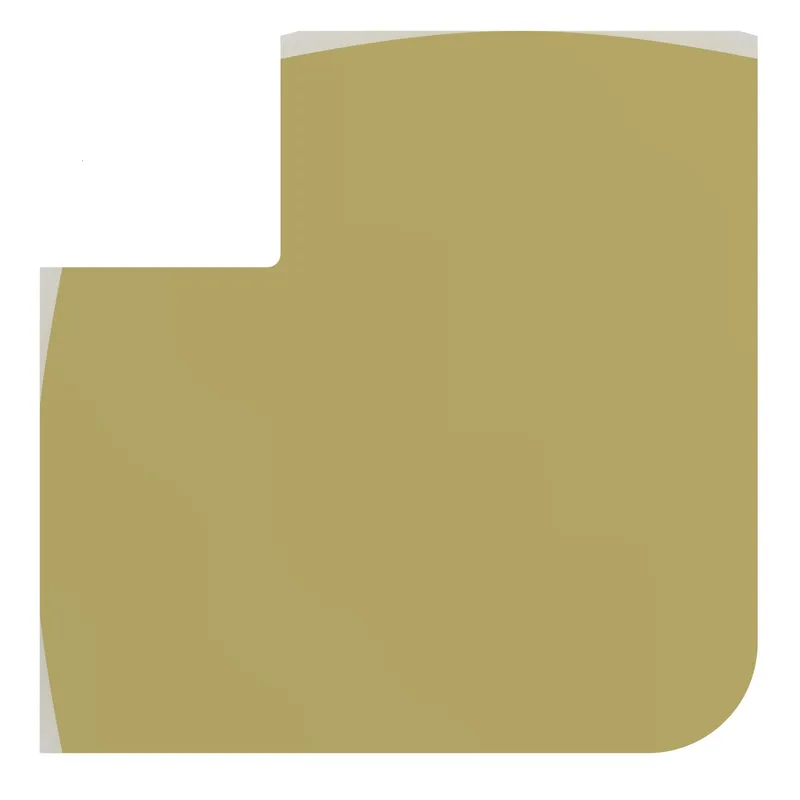

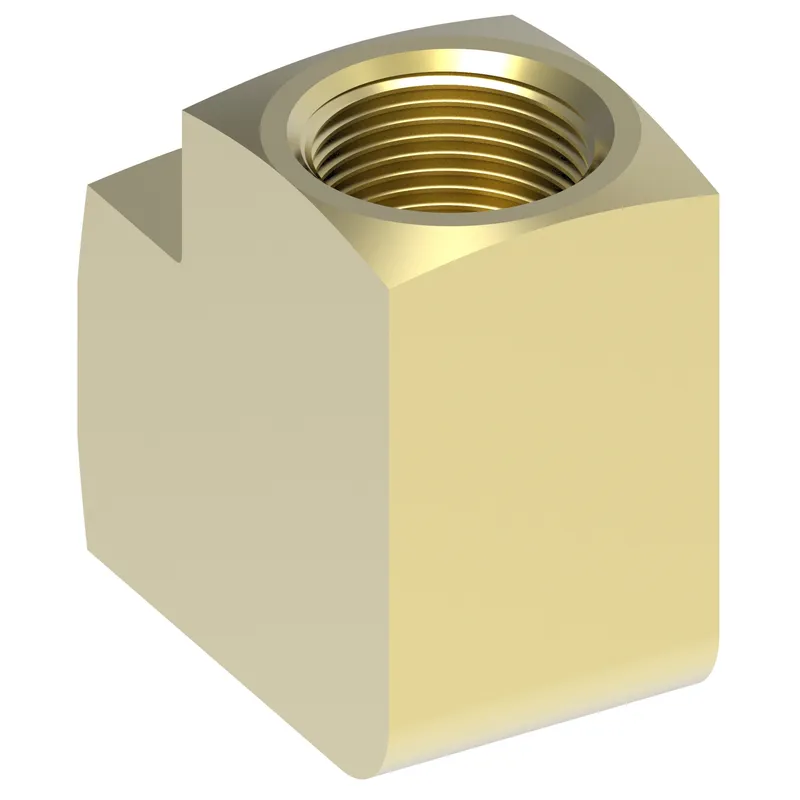

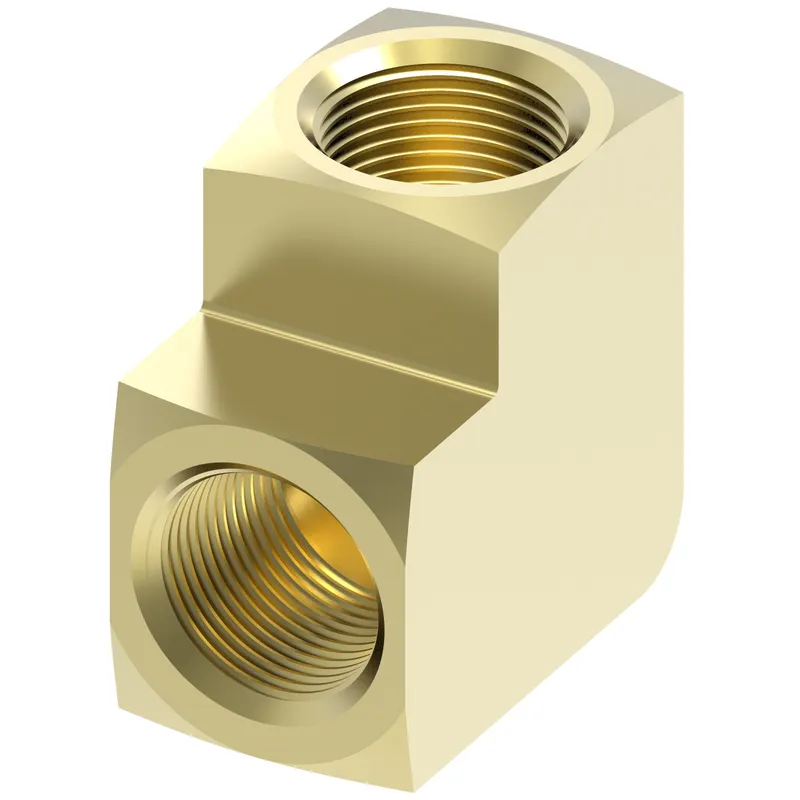

ADAPTER,BRASS,PIPE 90 D 3/4 FP BOTH ENDS

MPN: 3500X12
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 3500X12?

Danfoss ADAPTER,BRASS,PIPE 90 D 3/4 FP BOTH ENDS, manufacturer part number 3500X12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975725474
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	1.160
Drop dimension MM	29.50
End Type 1	Female pipe (NPTF)
End Type 2	Female pipe (NPTF)
Hex size 1 IN	1.260
Hex size 1 MM	32.000
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.890
Tube outside diameter 1 MM	22.6
Tube outside diameter 2 IN	0.890
Tube outside diameter 2 MM	22.6
Working pressure bar	83.0
Working pressure psi	1200
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
