HOSE-OTHER-IMPORT
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hose, fittings, and assemblies |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 34PW-16-250BX be shipped?
34PW-16-250BX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 34PW-16-250BX in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 34PW-16-250BX and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 34PW-16-250BX, subject to availability and destination.

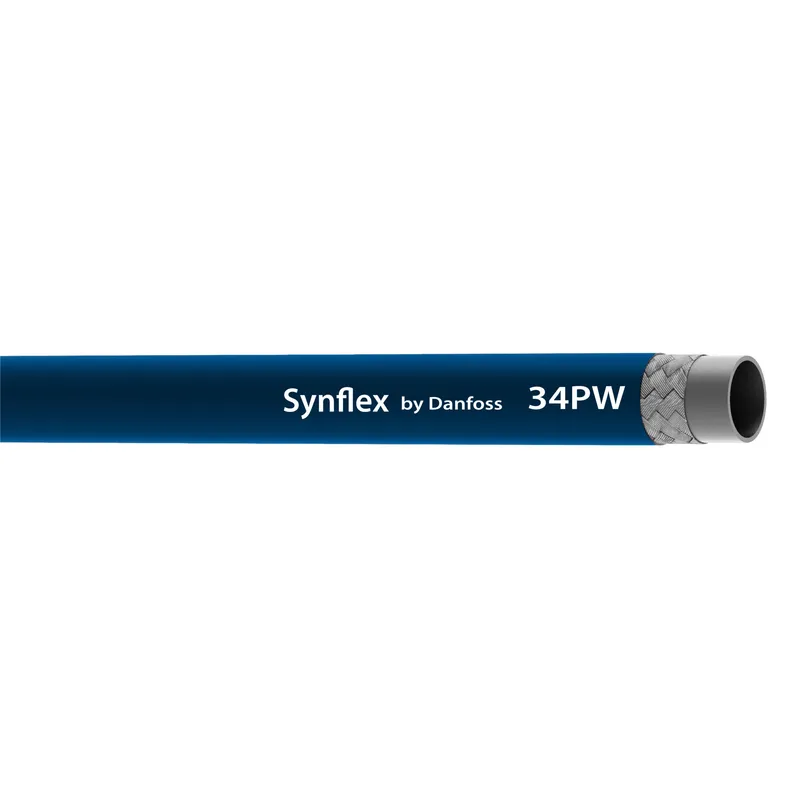

Danfoss HOSE-OTHER-IMPORT, manufacturer part number 34PW-16-250BX. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789347824 |
| Abrasion resistance | Premium |
| Application | Water |
| Bend radius min (inch) | 8.000 |
| Bend radius min (mm) | 203.200 |
| Burst pressure (bar) | 414 |
| Burst pressure (psi) | 6000 |
| Certifications | MIL-STD-767A |
| Color | Blue |
| Compliances | NSF-51, NSF-61 |
| Conductivity | Non-conductive |
| Construction | 1 Ply braid |
| Cover material | Polyurethane (TPU) |
| Inside diameter (inch) | 1.00 |
| Inside diameter (mm) | 25.40 |
| Lay line style | Ink jet |
| Outside diameter (inch) | 1.46 |
| Outside diameter (mm) | 37.08 |
| Package form | Box |
| Qualified hose fittings | 90A, 90L |
| Reinforcement material | Fabric |
| Series | 34PW Series |
| Size | -16 |
| Tube material | Polyethylene (PE) |
| Tube wall thickness (inch) | 0.23 |
| Tube wall thickness (mm) | 5.84 |
| Working pressure max (bar) | 103 |
| Working pressure max (psi) | 1500 |
| Working temperature max (C) | 66 |
| Working temperature max (F) | 150.0 |
| Working temperature min (C) | -23 |
| Working temperature min (F) | -10.0 |
More Danfoss (Drives) parts
Available on requestHose PURE WATER Order 34PW-08-250BX
Available on requestHOSE,THERMO PURE WATER BLUE 3/4 ID 250F
Available on requestHose PURE WATER 250FT RANDOM LGTH

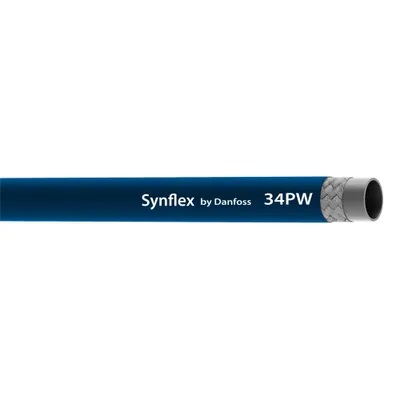

Available on requestPure_Water_Hose-Synflex
Available on requestHose PURE WATER 250FT RANDOM LGTH
Available on requestPure_Water_Hose-SynflexAvailable on requestINTERNAL SNAP RING SAME AS N5000-100

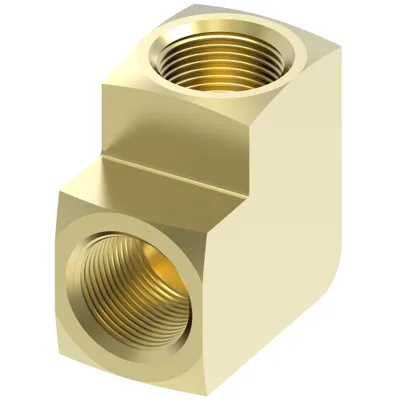

Available on requestADAPTER,BRASS,PIPE 90 D 3/4 FP BOTH ENDS
