Danfoss 3333-139

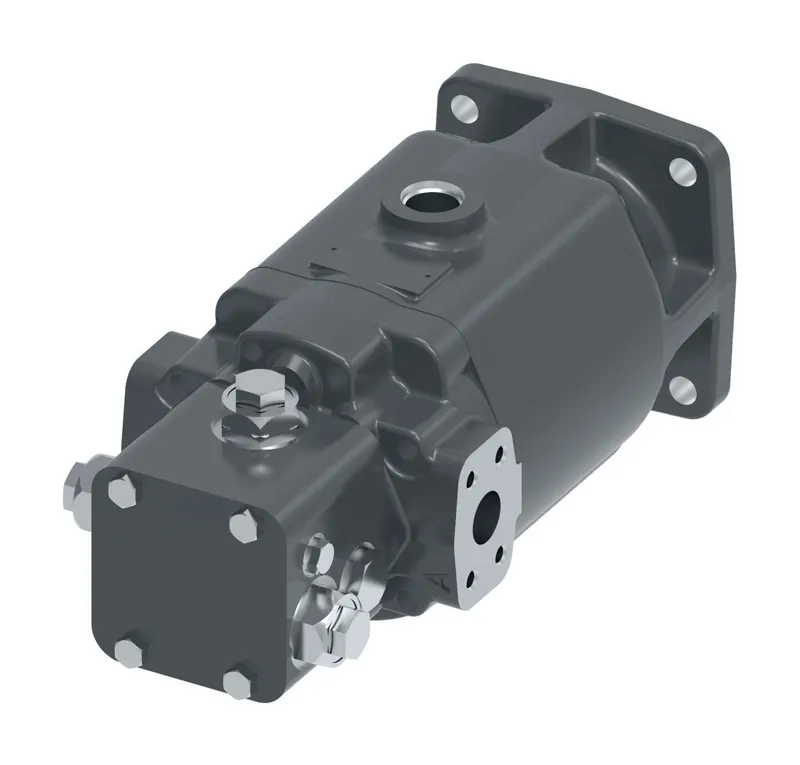

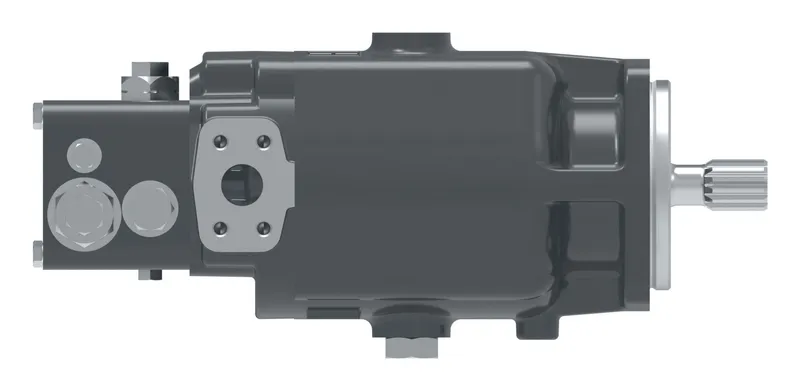

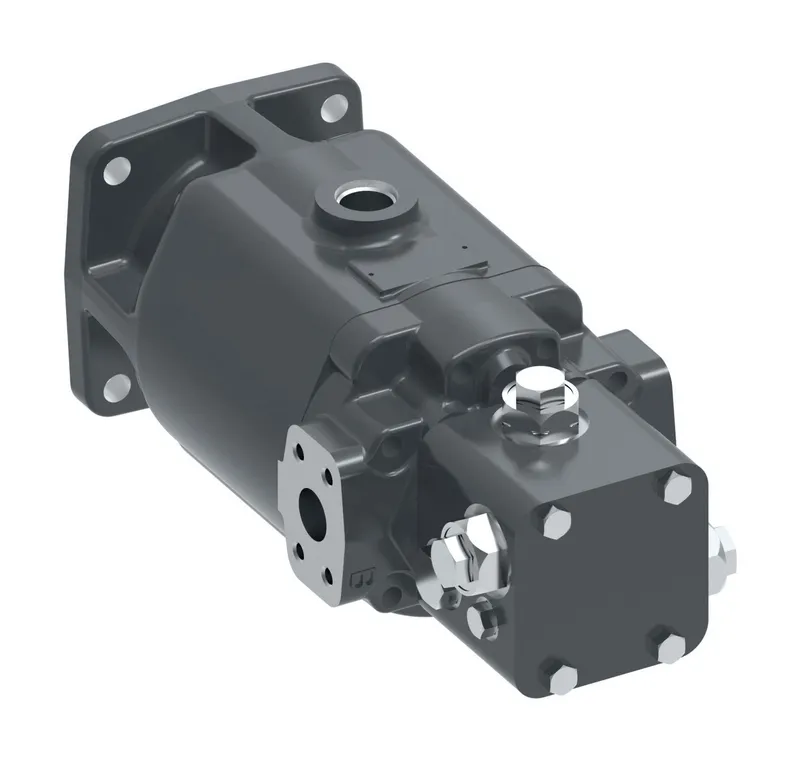

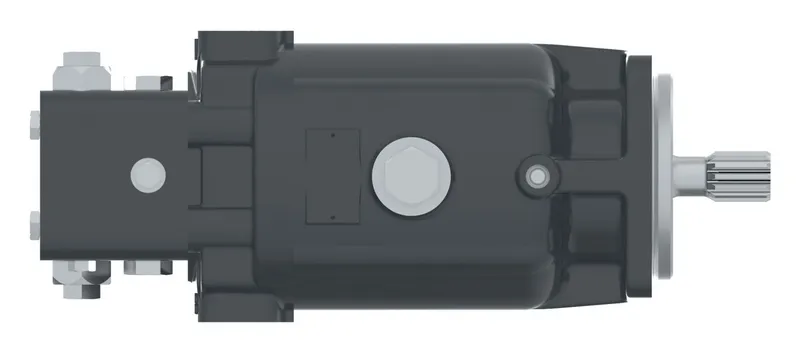

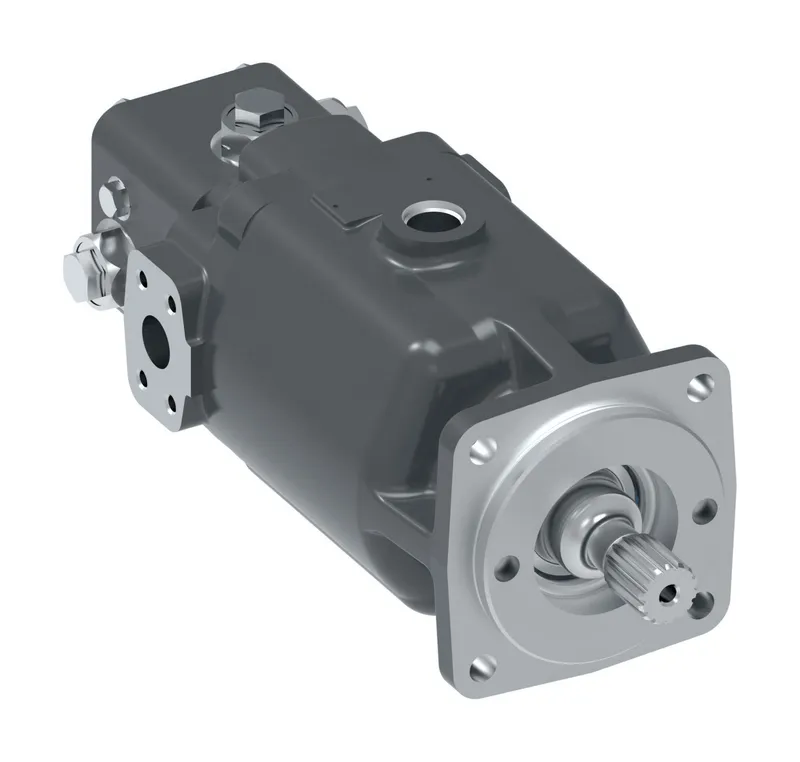

MOTOR-FIXED DISPL, S1MF054, HHD333314BB1E3K3KC0000B

MPN: 3333-139
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 3333-139?

Danfoss MOTOR-FIXED DISPL, S1MF054, HHD333314BB1E3K3KC0000B, manufacturer part number 3333-139. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
CPRV setting	CPRV, 220 psi (15.2 bar)
CPRV type	Standard charge pressure relief valve
Design code	Design code B
Design type	Fixed clearance with lip seal (33/39/46/54/64 only)
Displacement	3.316 cid (54.34 cc)
End cover and comp valve block	Valve block with shuttle valve, low-rate springs, charge pressure relief valve, and high pressure relief valves
Flow rate gpm	62.5
Flow rate lpm	236.8
High pres relief valve port A	Standard
High pres relief valve port B	Standard
HPRV setting port A	HPRV port A, 5000 psi (344.7 bar)
HPRV setting port B	HPRV port B, 5000 psi (344.7 bar)
Identification	Standard
Main ports	1.00 code 62 opposite side ports
Maximum output speed	4357
Maximum temperature C	82.20
Maximum temperature F	180.00
Model Code 1	HHD333314BB1E3K3KC0000B
Mounting Flange	4-BOLT-C
Output shaft	14 tooth 12/24 pitch spline (33/39/46/54/64 only)
Output torque lbf-in2	2638.8
Output torque Nm	298.1
Paint	Standard, primer blue
Product height in	7.760
Product height mm	197.104
Product length in	14.680
Product length mm	372.872
Product Series	Heavy duty hydrostatic fixed displacement motor
Product type	Fixed displacement motor
Product width in	6.880
Product width mm	174.752
Special features	No special features
Speed sensor	No speed sensor, but plugged and ready for magnetic or digital speed sensor
Working pressure bar	345
Working pressure psi	5000
