Home / Danfoss (Drives) / Fixed displacement axial piston motors / Danfoss 3333-126

Danfoss (Drives)

Danfoss 3333-126

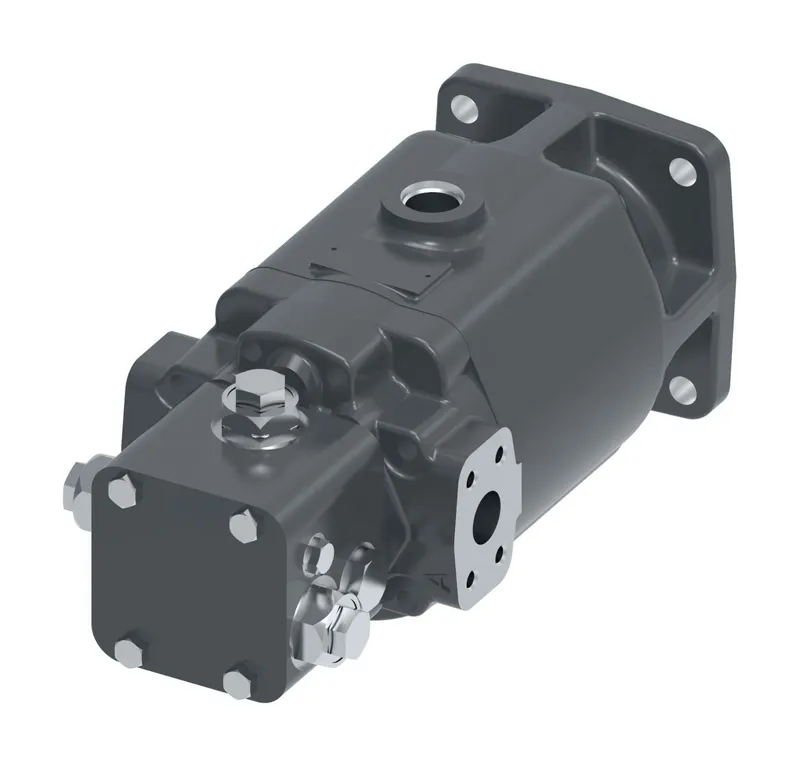

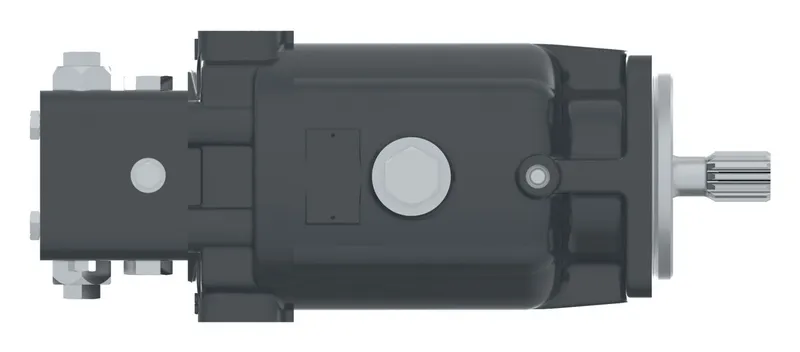

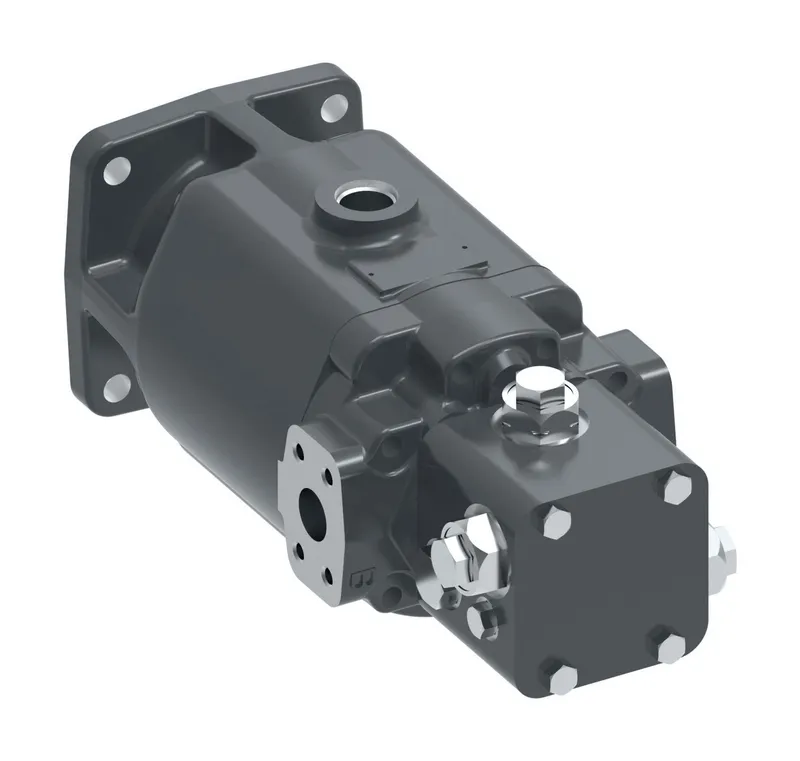

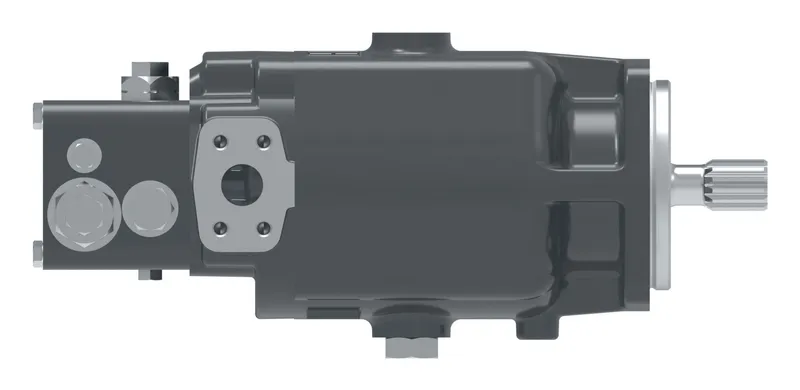

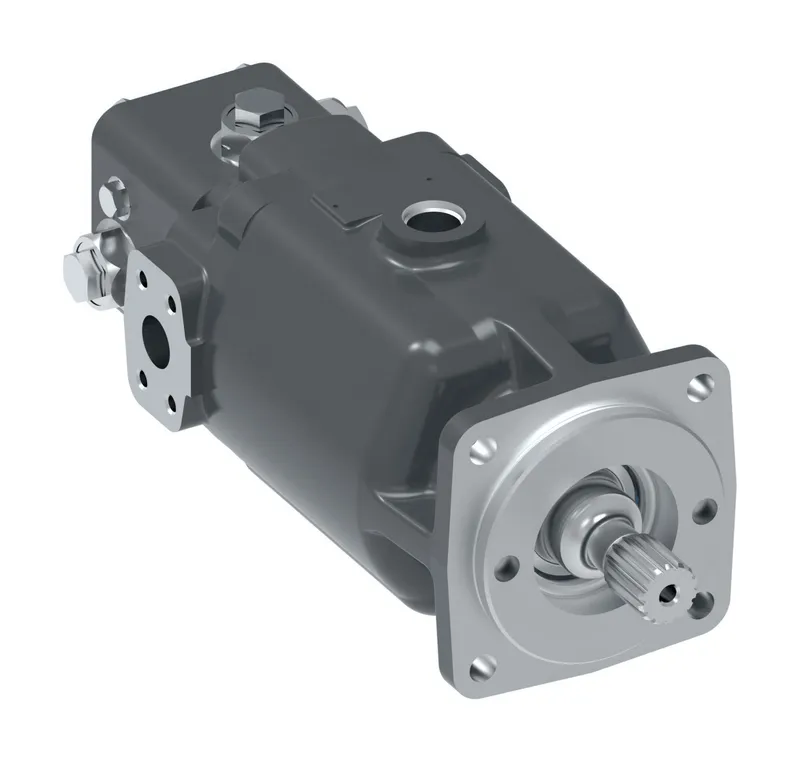

MOTOR-FIXED DISPL, S1MF054, HHD333321BG1B00000600PB

MPN: 3333-126
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 3333-126?

Danfoss MOTOR-FIXED DISPL, S1MF054, HHD333321BG1B00000600PB, manufacturer part number 3333-126. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
CPRV setting	CPRV, 160 psi (11 bar)
CPRV type	Standard charge pressure relief valve
Design code	Design code B
Design type	Fixed clearance with lip seal (33/39/46/54/64 only)
Displacement	3.316 cid (54.34 cc)
End cover and comp valve block	Integral shuttle valve, low-rate springs, and charge pressure relief valve
Flow rate gpm	62.5
Flow rate lpm	236.8
High pres relief valve port A	No HPRV in port-A
High pres relief valve port B	No HPRV in port-B
HPRV setting port A	HPRV Setting Port A, None
HPRV setting port B	HPRV Setting Port B, None
Identification	Special Eaton Hydraulics
Main ports	1.00 code 62 opposite side ports
Maximum output speed	4357
Maximum temperature C	82.20
Maximum temperature F	180.00
Model Code 1	HHD333321BG1B00000600PB
Mounting Flange	4-BOLT-C
Output shaft	21 tooth 16/32 pitch spline (33/39/46/54/64 only)
Output torque lbf-in2	3166.5
Output torque Nm	357.8
Paint	Standard, primer blue
Product height in	6.000
Product height mm	152.400
Product length in	14.680
Product length mm	372.872
Product Series	Heavy duty hydrostatic fixed displacement motor
Product type	Fixed displacement motor
Product width in	6.000
Product width mm	152.4
Special features	Nametag opposite dowel, housing mounting flange without o-ring groove special packagin(rp, vci, bag, zip tie, box and crate)
Speed sensor	No speed sensor
Working pressure bar	414
Working pressure psi	6000
