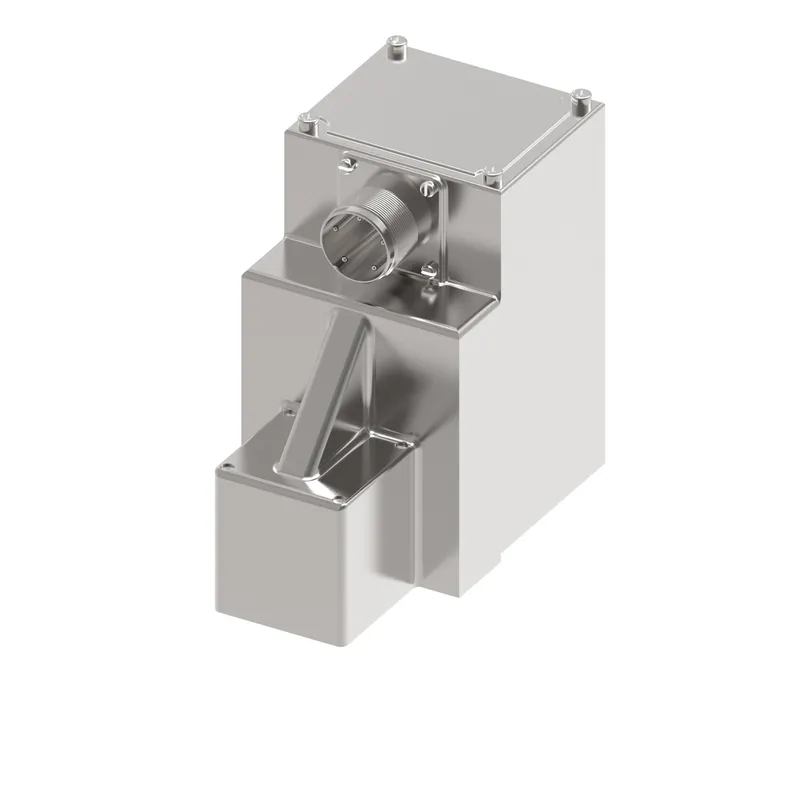

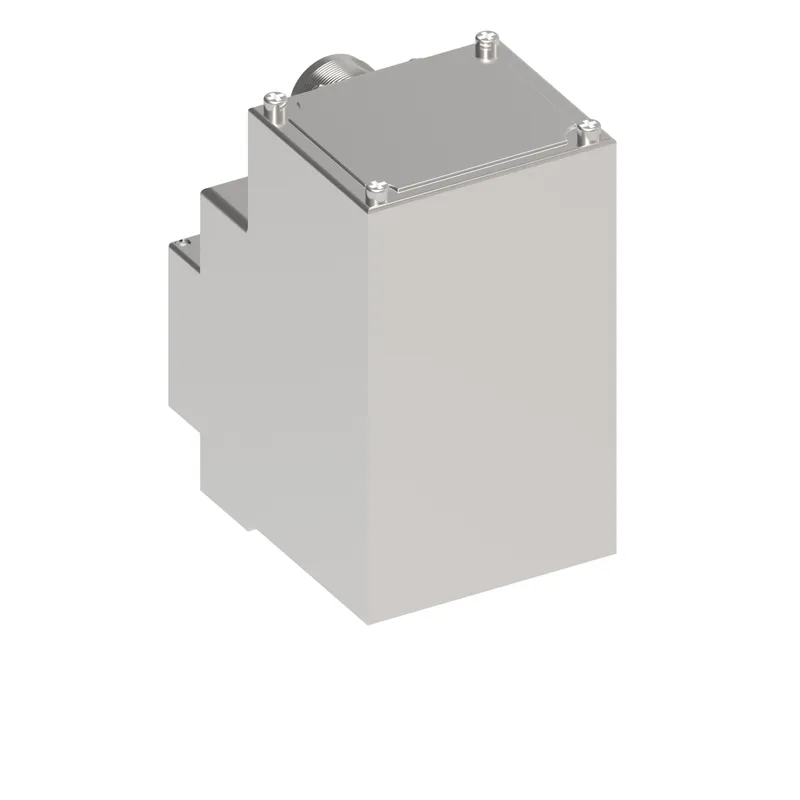

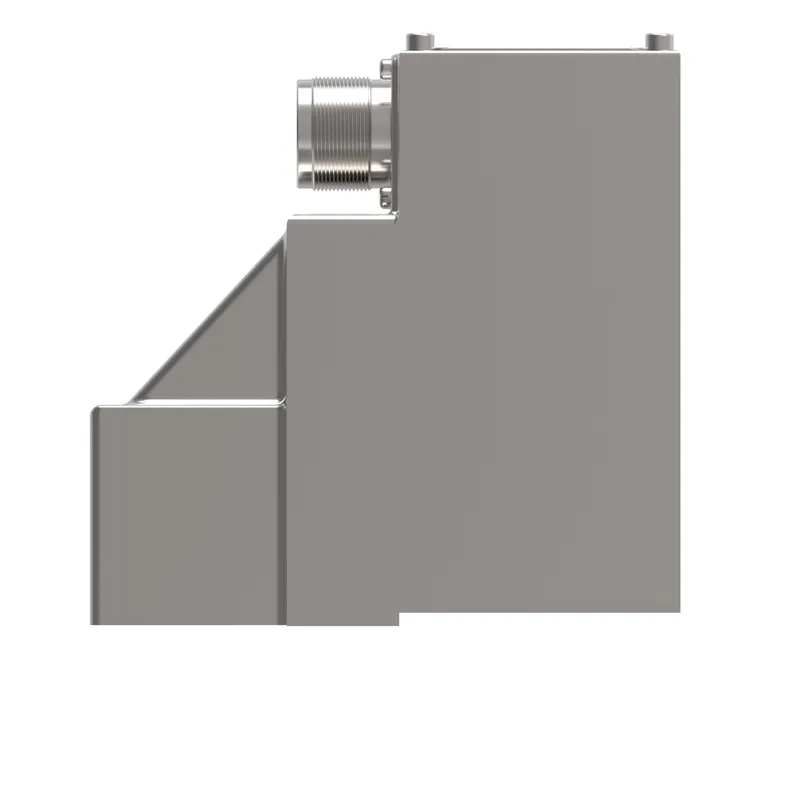

VALVE EHST-3-BIE-40, EHST3BIE40
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3025058 be shipped?
3025058 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3025058 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3025058 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3025058, subject to availability and destination.
Danfoss VALVE EHST-3-BIE-40, EHST3BIE40, manufacturer part number 3025058. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Solenoid controlled |
| Brand | Vickers by Danfoss |
| Build orientation | None |
| Coil voltage | 24 Volt DC |
| Command input | 4-20mA, DC |
| Communication protocol | None |
| Design Series | 40 Series |
| Electrical Connection | Requires MS3106A-14S connector |
| Feedback sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-03/NFPA D03/CETOP 3/NG06 |
| Manual override | None |
| Maximum flow LPM | 2.5 |
| Maximum flow USGPM | 0.7 |
| Maximum pressure BAR | 90 |
| Maximum pressure PSI | 1305 |
| Model Code 1 | EHST3BIE40 |
| On board electronics | Yes |
| Performance | High |
| Pressure range | 4-90 bar (58-1305 psi) |
| Product height in | 4.760 |
| Product height mm | 120.904 |
| Product length in | 5.750 |
| Product length mm | 146.050 |
| Product width in | 3.150 |
| Product width mm | 80.01 |
| ProFX compatible | No |
| Reducer module | No |
| Reverse flow check | No |
| Seal type | Buna-N |
| Special features | None |
| Stage | Single stage |
| Tank port rating BAR | 20 |
| Tank port rating PSI | 290 |
| Valve Mount Type | Subplate |
| Valve type | Proportional pressure relief |
| Working temp max C | 50 |
| Working temp max F | 122 |
| Working temp min C | -20 |
| Working temp min F | -4 |
