EHST 3 FIF 40, EHST3FIF40
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3025055 be shipped?
3025055 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3025055 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3025055 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3025055, subject to availability and destination.

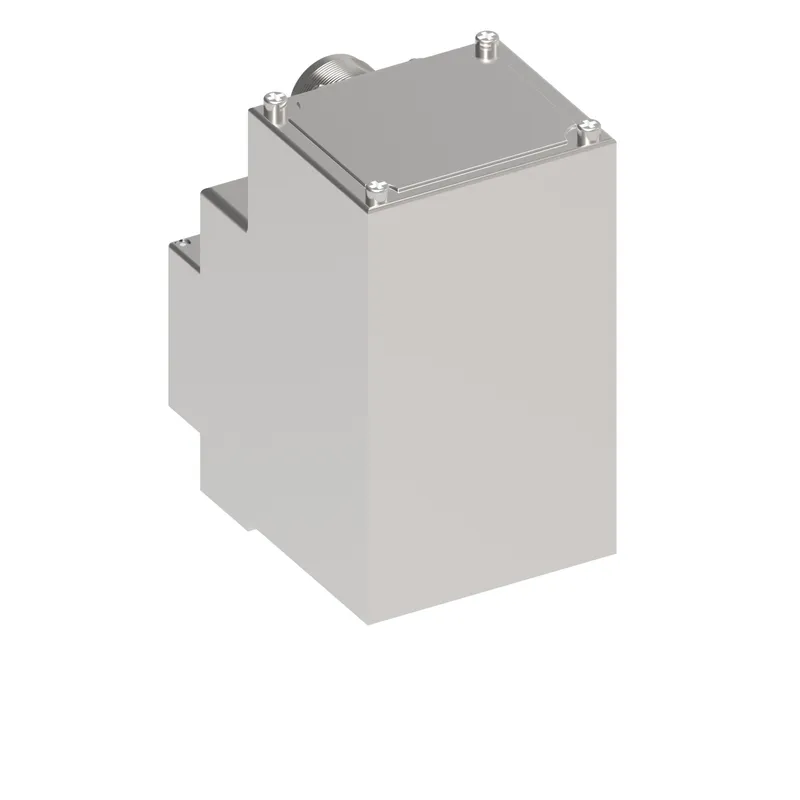

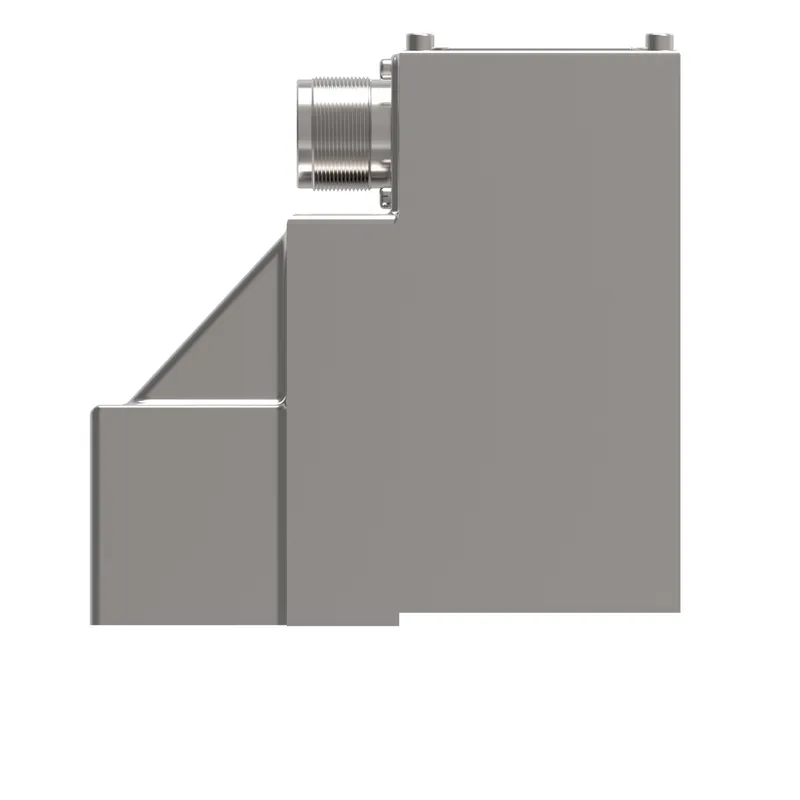

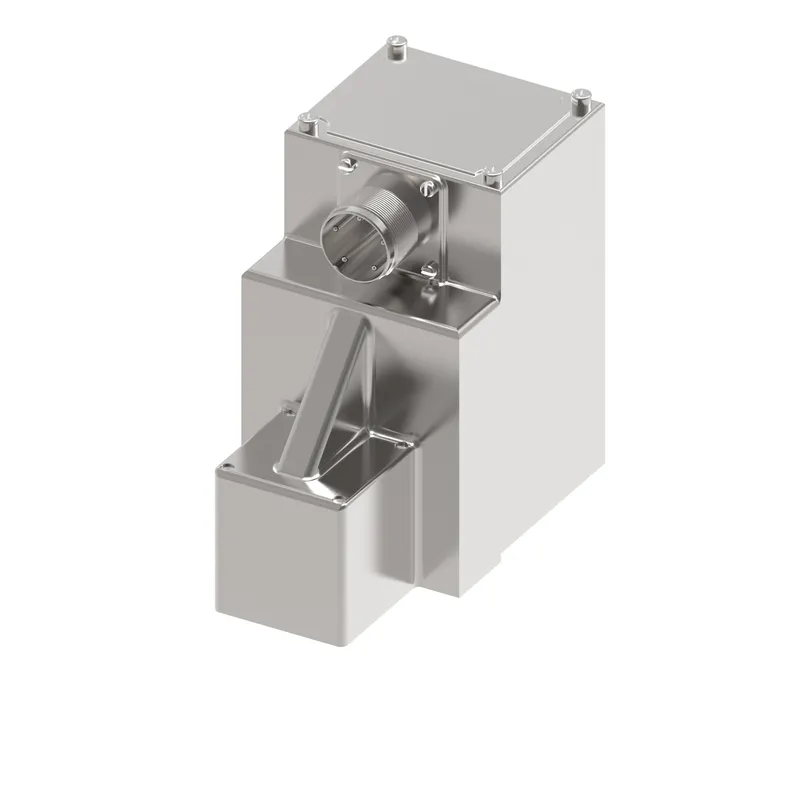

Danfoss EHST 3 FIF 40, EHST3FIF40, manufacturer part number 3025055. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Solenoid controlled |
| Brand | Vickers by Danfoss |
| Build orientation | None |
| Coil voltage | 24 Volt DC |
| Command input | 4-20mA, DC |
| Communication protocol | None |
| Design Series | 40 Series |
| Electrical Connection | Requires MS3106A-14S connector |
| Feedback sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-03/NFPA D03/CETOP 3/NG06 |
| Manual override | None |
| Maximum flow LPM | 2.5 |
| Maximum flow USGPM | 0.7 |
| Maximum pressure BAR | 210 |
| Maximum pressure PSI | 3000 |
| Model Code 1 | EHST3FIF40 |
| On board electronics | Yes |
| Performance | High |
| Pressure range | 5.5-210 bar (78-3045 psi) |
| ProFX compatible | No |
| Reducer module | No |
| Reverse flow check | No |
| Seal type | Buna-N |
| Special features | None |
| Stage | Single stage |
| Tank port rating BAR | 20 |
| Tank port rating PSI | 290 |
| Valve Mount Type | Subplate |
| Valve type | Proportional pressure relief |
| Working temp max C | 50 |
| Working temp max F | 122 |
| Working temp min C | -20 |
| Working temp min F | -4 |
