Home / Danfoss (Drives) / COUPLING,2HKGL,F,1/4,SS,-4BARB,NBR
Available on request

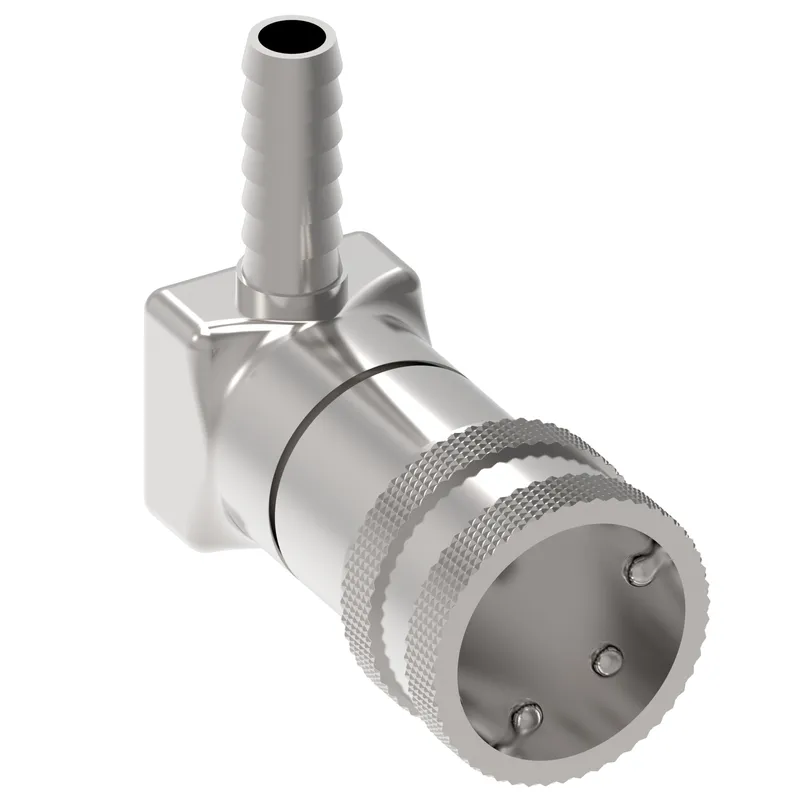

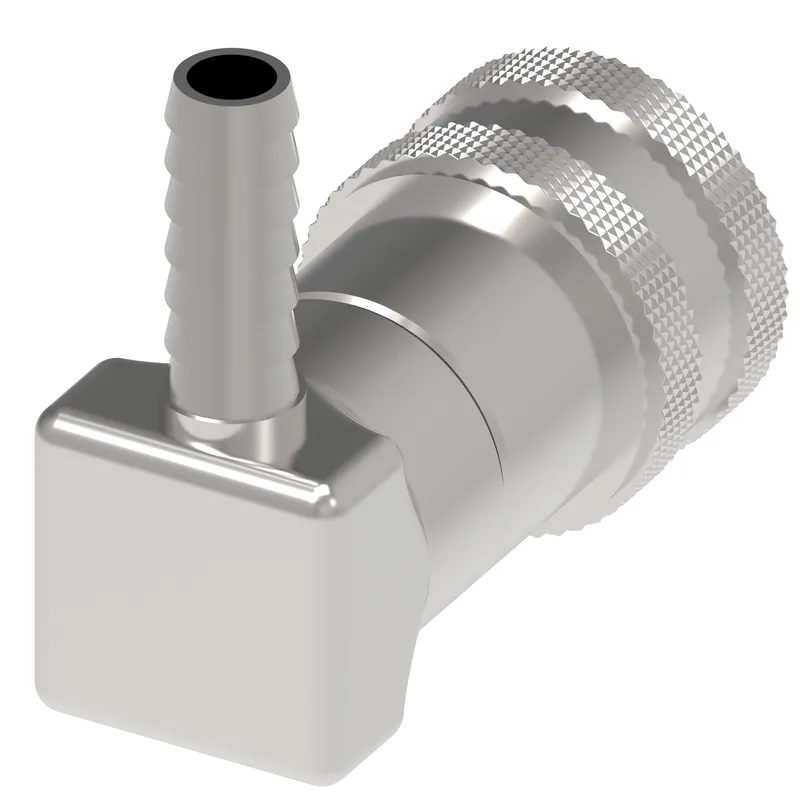

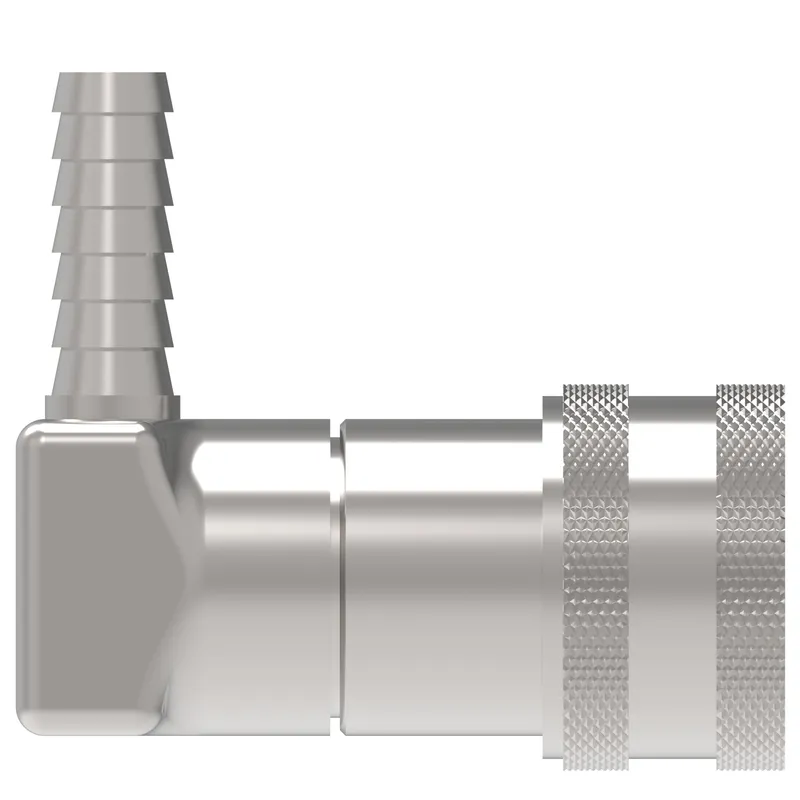

COUPLING,2HKGL,F,1/4,SS,-4BARB,NBR

MPN: 2HLRB · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryDanfoss Hansen® quick disconnect couplings
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 2HLRB be shipped?

2HLRB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2HLRB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2HLRB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2HLRB, subject to availability and destination.

Danfoss COUPLING,2HKGL,F,1/4,SS,-4BARB,NBR, manufacturer part number 2HLRB. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146198334
Air inclusion max cc2.20
Air inclusion max in30.13
Angle shape90 Degree
Body size1/4
Burst pressure min bar414
Burst pressure min psi6000
Connection styleManual connect
End type 1Female Push to Connect
End type 2Line/hose/tube
Flow rate GPM2.20
Flow rate LPM8.33
Fluid compatibilityLiquid and gases
Fluid loss cc1.00000
Fluid loss in30.06100
Item typeFemale half
Latch typePush/pull
Product length in2.160
Product materialStainless steel
Safety locking mechanismNone
Seal materialNitrile (NBR)
Torque lbs-ft17.50
Working pressure max psi1500
Working pressure max BAR103
Working temperature max C121
Working temperature max F250
Working temperature min C-40
Working temperature min F-40
