What is the Danfoss 288710?

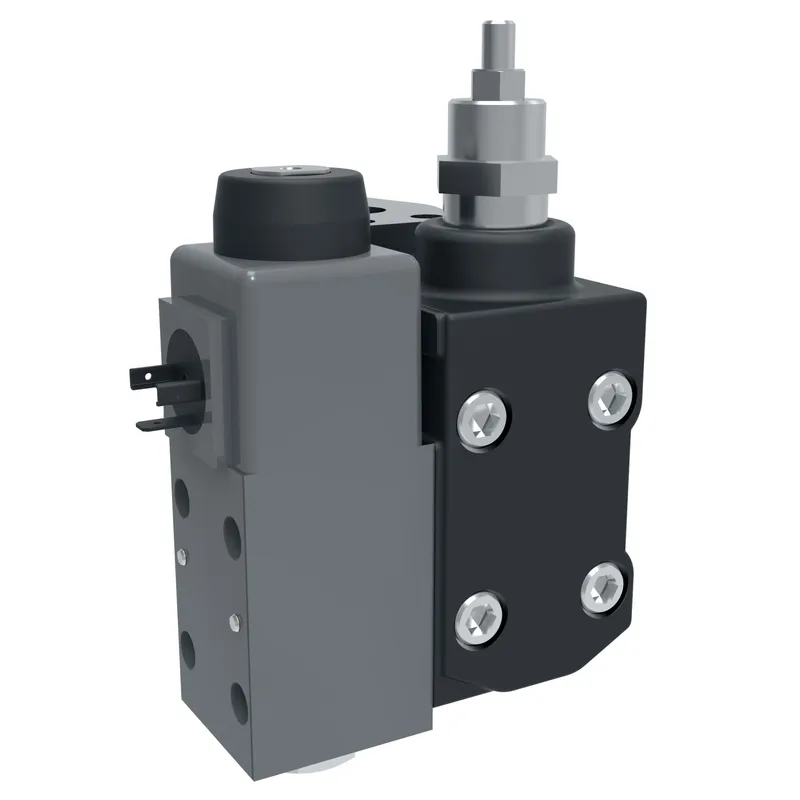

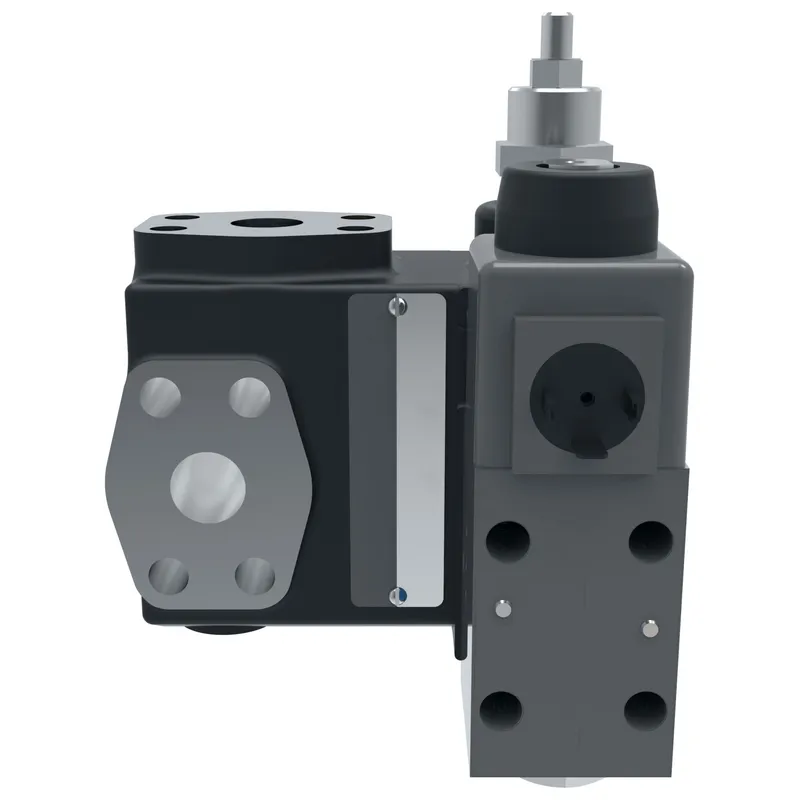

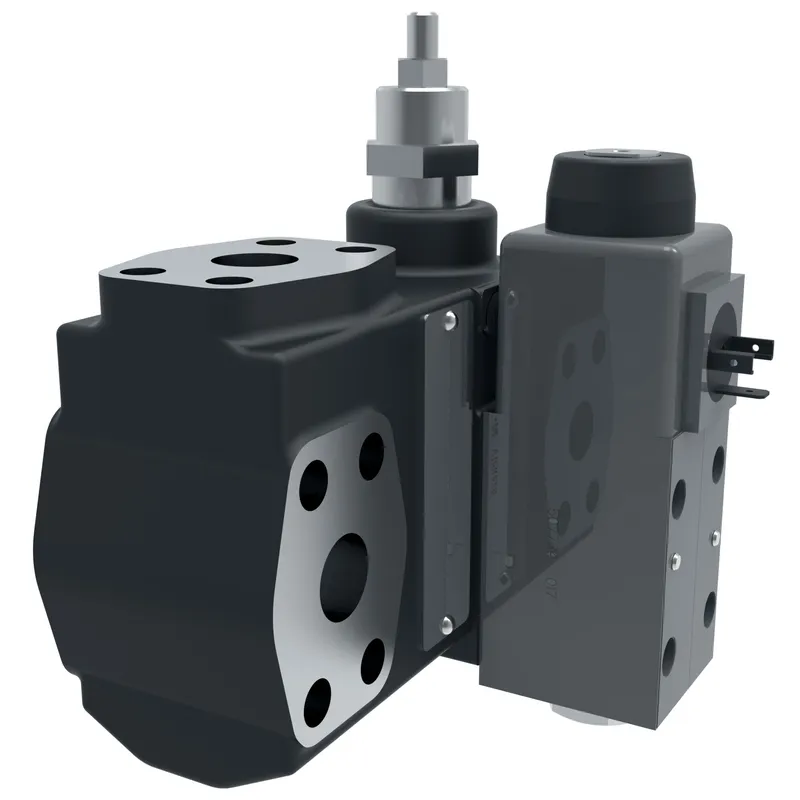

Danfoss F3 CF 16 C 10, F3CF16C10, manufacturer part number 288710. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Adjustment range	35-140 bar (500-2000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	10 Series
Electrical connection	None
Flow rate lpm	473.0
Flow rate USGPM	125.0
Fluid Cleanliness	20/18/15 Micron
Fluid compatibility	Phosphate esters
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	F3CF16C10
Performance	Standard
Product height in	8.060
Product height mm	204.724
Product length in	6.780
Product length mm	172.212
Product width in	4.250
Product width mm	107.95
Seal material	Fluorocarbon
Size	Size 16
Special feature	None
Stage	Two stage
Valve Mount Type	Flange mounted
Valve type	Balanced piston relief valve
Working temperature max C	80
Working temperature max F	176
Working temperature min C	-20
Working temperature min F	-4
