Danfoss 288133

URT2 06 B 12, URT206B12

MPN: 288133
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

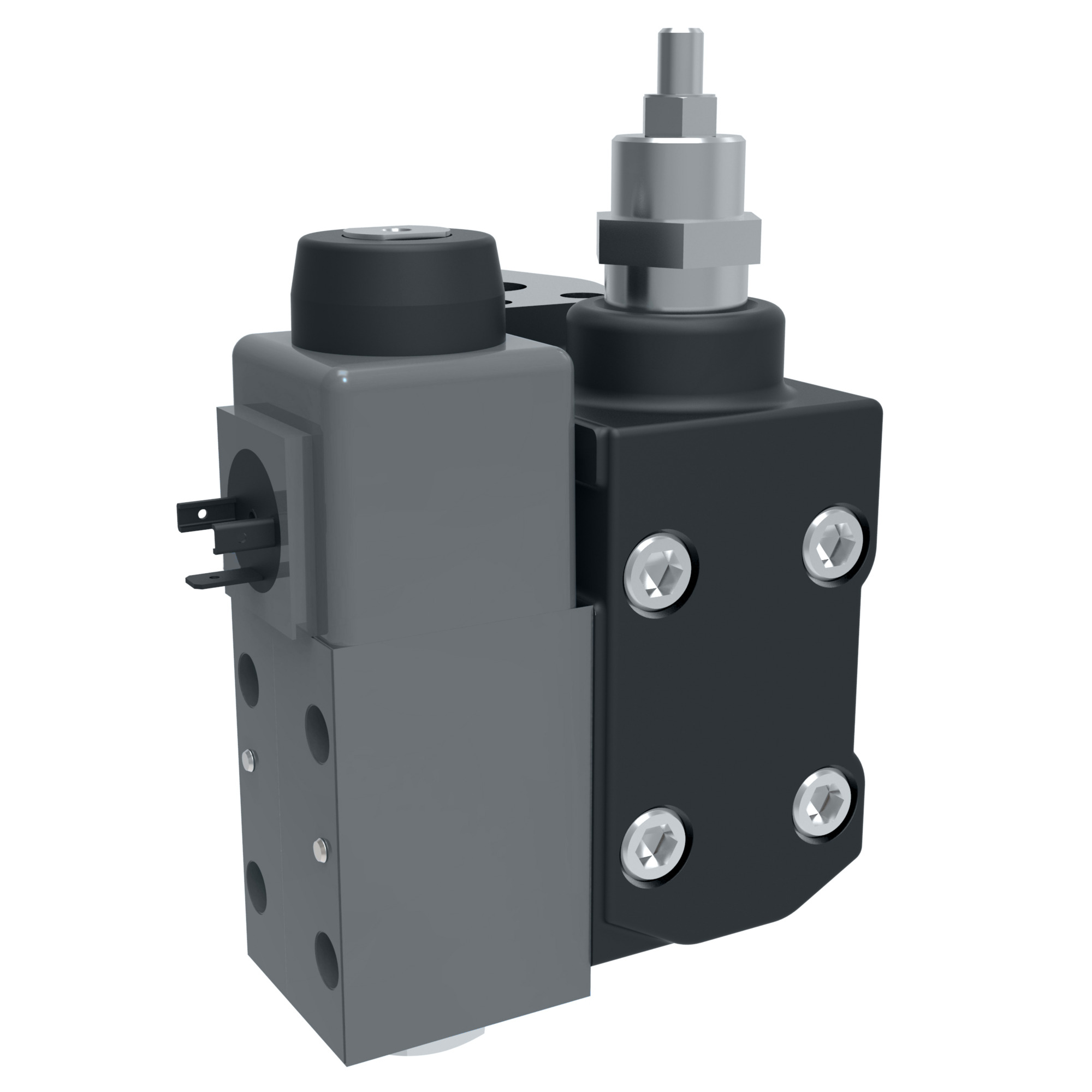

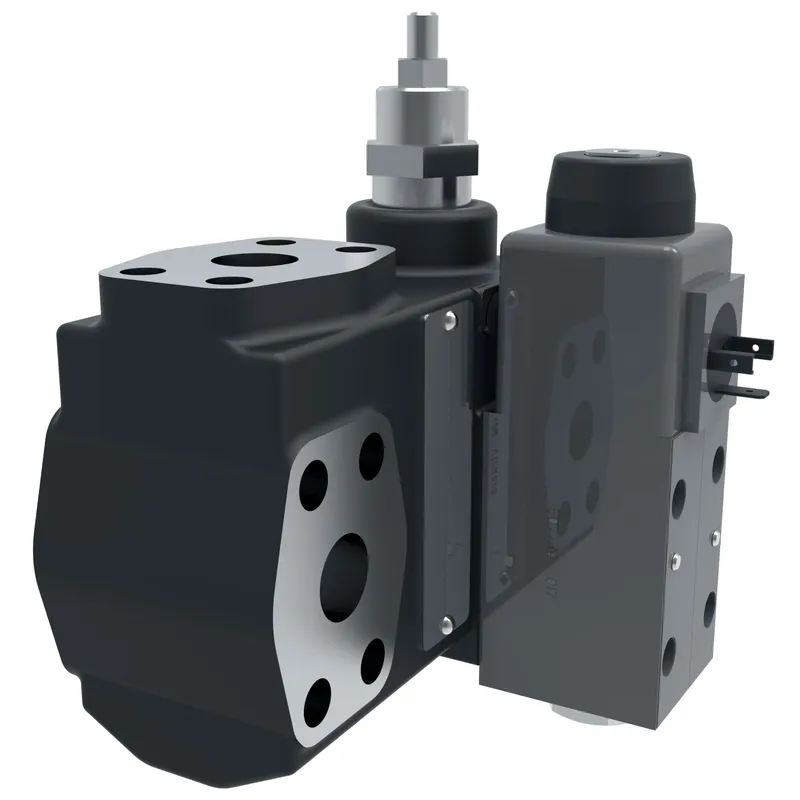

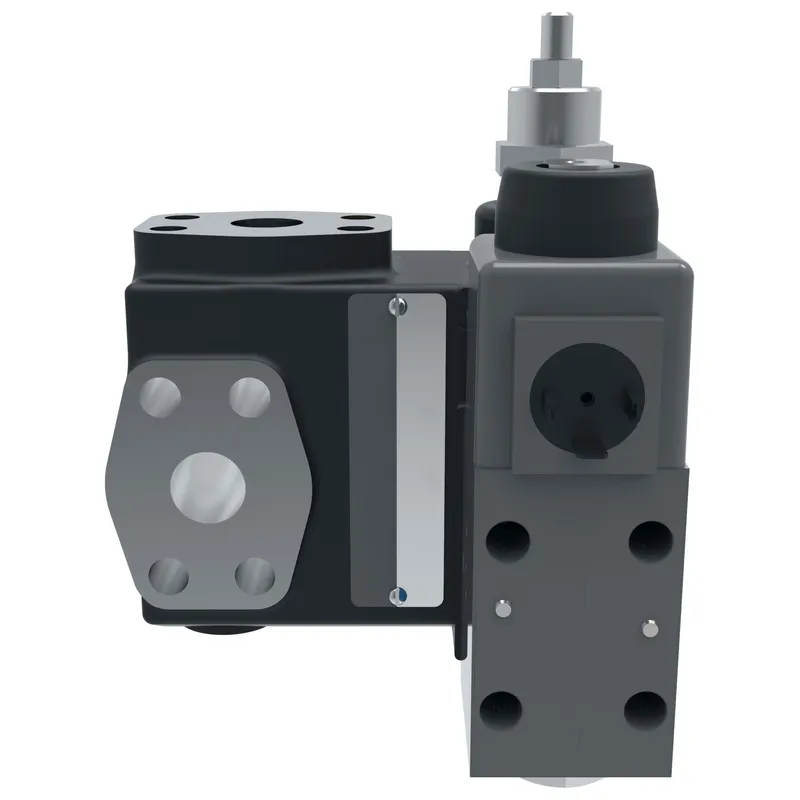

What is the Danfoss 288133?

Danfoss URT2 06 B 12, URT206B12, manufacturer part number 288133. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Adjustment range	24-70 bar (350-1000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	12 Series
Drain	Internal
Electrical connection	None
Flow rate lpm	76.0
Flow rate USGPM	20.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Gauge port thread	1/4 NPTF
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	URT206B12
Performance	Standard
Product height in	6.250
Product height mm	158.750
Product length in	5.630
Product length mm	143.002
Product width in	3.060
Product width mm	77.724
Seal material	Nitrile
Size	Size 06
Special feature	None
Stage	Two stage
Valve Mount Type	3/4 inch NPT pipe mount
Valve type	Unloading relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
