Danfoss 278832

Industrial valve

MPN
278832
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 278832?

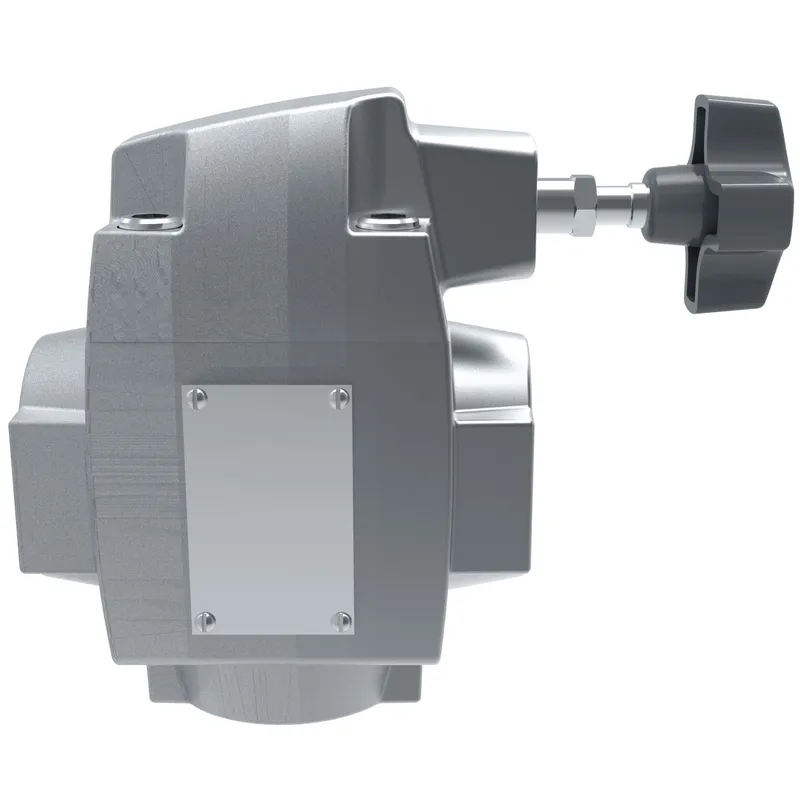

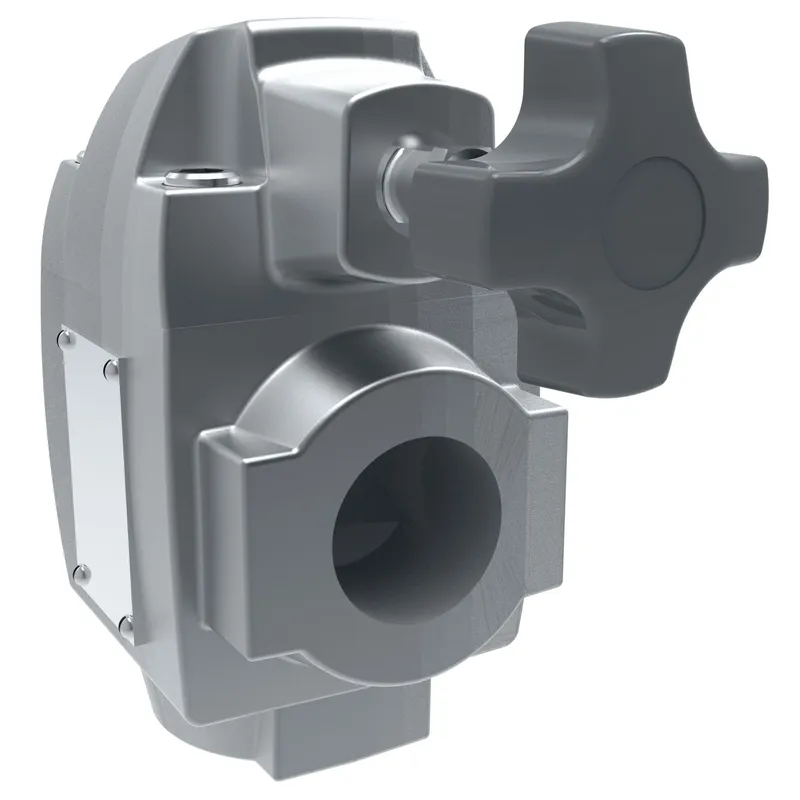

Danfoss CG 03 FV 10 S81, CG03FV10S81, manufacturer part number 278832. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeDirect acting
Adjustment range100-210 bar (1500-3000 psi)
Adjustment typeHandwheel
BrandVickers by Danfoss
Design Series10 Series
Electrical connectionNone
Flow rate lpm30.0
Flow rate USGPM8.0
Fluid Cleanliness19/17/14 Micron
Fluid compatibilityPetroleum oils
Hi-vent springYes
Indicator LightNo
Maximum pressure BAR210
Maximum pressure PSI3000
Model Code 1CG03FV10S81
PerformanceStandard
Product height in3.190
Product height mm81.026
Product length in6.250
Product length mm158.750
Product width in3.120
Product width mm79.248
Seal materialNitrile
SizeSize 03
Special featureOptional handwheel control
StageSingle stage
Valve Mount TypeSubplate/manifold mounted
Valve typeRelief valve
Working temperature max C70
Working temperature max F158
Working temperature min C-20
Working temperature min F-4

278832: frequently asked questions

When can 278832 be shipped?

278832 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 278832 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 278832 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 278832, subject to availability and destination.
