Danfoss 2766-4

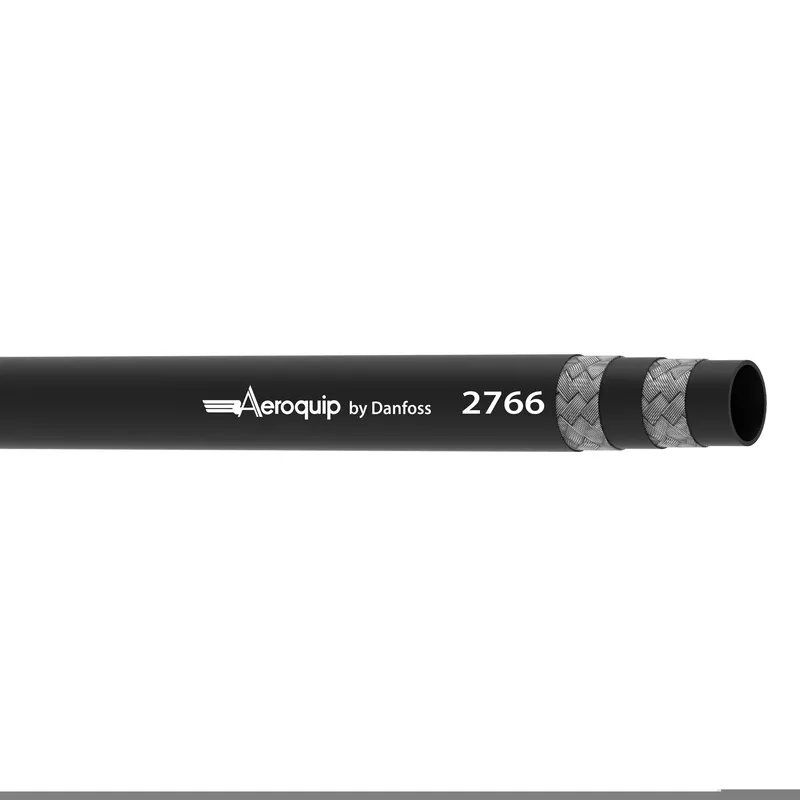

Hose CEX ITEM MIL-DTL-13531 TyII ClA
- MPN
- 2766-4
- Category
- Marine and military
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 2766-4?
Danfoss Hose CEX ITEM MIL-DTL-13531 TyII ClA, manufacturer part number 2766-4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146083616 |
| Abrasion resistance | Standard |
| Bend radius min (inch) | 4.000 |
| Bend radius min (mm) | 101.600 |
| Burst pressure (bar) | 1379 |
| Burst pressure (psi) | 20000 |
| Certifications | MIL-DTL-13531 Type 1, Class A |
| Color | Black |
| Conductivity | Conductive |
| Construction | 2 Ply braid |
| Cover material | Nitrile (NBR) |
| Inside diameter (inch) | 0.25 |
| Inside diameter (mm) | 6.35 |
| Matr grp for sales restriction | Country Excluded Products |
| Outside diameter (inch) | 0.72 |
| Outside diameter (mm) | 18.29 |
| Package form | Bulk |
| Qualified hose fittings | Global skive, Reusable |
| Reinforcement material | Brass plated steel wire |
| Series | 2766 Series |
| Size | -4 |
| Tube material | Nitrile (NBR) |
| Tube wall thickness (inch) | 0.47 |
| Tube wall thickness (mm) | 11.94 |
| Working pressure max (bar) | 345 |
| Working pressure max (psi) | 5000 |
| Working temperature max (C) | 93 |
| Working temperature max (F) | 200.0 |
| Working temperature min (C) | -54 |
| Working temperature min (F) | -65.0 |
