Danfoss
275738Danfoss 2766-12
Hose CEX ITEM MIL-DTL-13531 TyII ClA
- MPN
- 2766-12
- Category
- Marine and military
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

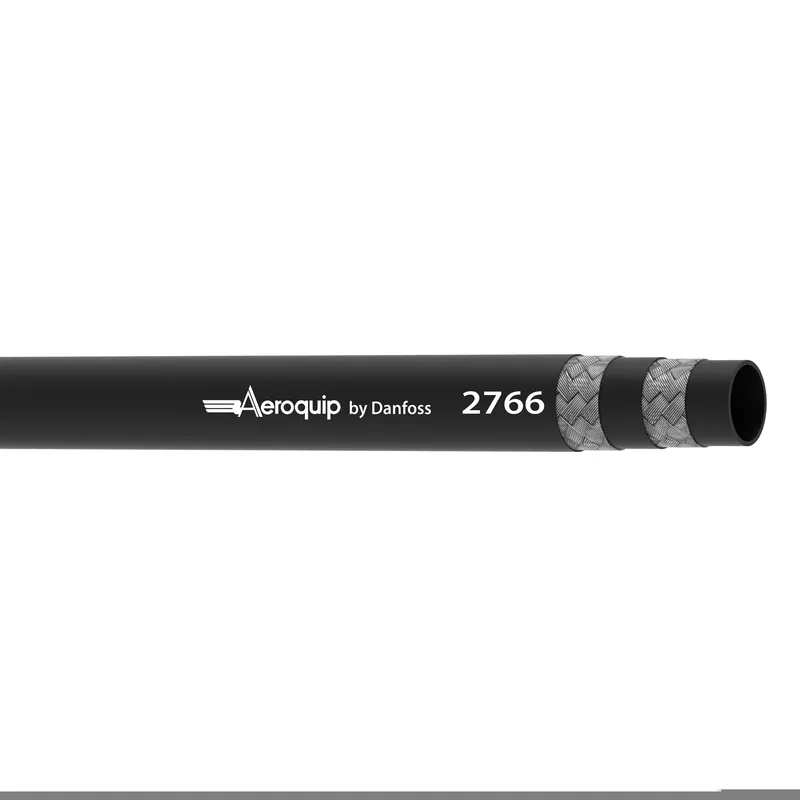

What is the Danfoss 2766-12?
Danfoss Hose CEX ITEM MIL-DTL-13531 TyII ClA, manufacturer part number 2766-12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146068651 |
| Abrasion resistance | Standard |
| Bend radius min (inch) | 9.500 |
| Bend radius min (mm) | 241.300 |
| Burst pressure (bar) | 621 |
| Burst pressure (psi) | 9000 |
| Certifications | MIL-DTL-13531 Type 1, Class A |
| Color | Black |
| Conductivity | Conductive |
| Construction | 2 Ply braid |
| Cover material | Nitrile (NBR) |
| Inside diameter (inch) | 0.75 |
| Inside diameter (mm) | 19.05 |
| Matr grp for sales restriction | Country Excluded Products |
| Outside diameter (inch) | 1.28 |
| Outside diameter (mm) | 32.51 |
| Package form | Bulk |
| Qualified hose fittings | Global skive, Reusable |
| Reinforcement material | Brass plated steel wire |
| Series | 2766 Series |
| Size | -12 |
| Tube material | Nitrile (NBR) |
| Tube wall thickness (inch) | 0.53 |
| Tube wall thickness (mm) | 13.46 |
| Working pressure max (bar) | 155 |
| Working pressure max (psi) | 2250 |
| Working temperature max (C) | 93 |
| Working temperature max (F) | 200.0 |
| Working temperature min (C) | -54 |
| Working temperature min (F) | -65.0 |
2766-12: frequently asked questions
When can 2766-12 be shipped?
2766-12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2766-12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2766-12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2766-12, subject to availability and destination.
