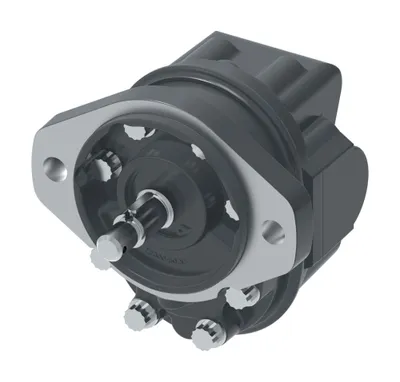

Danfoss 26706-DAB

GEAR MOTOR ASSY (21305-D SE REPLACEMENT)

MPN: 26706-DAB
Category: Gear motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 26706-DAB?

Danfoss GEAR MOTOR ASSY (21305-D SE REPLACEMENT), manufacturer part number 26706-DAB. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
Case drain	Internal with bi-directional checks, .5625-18 unf-2b sae o-ring port - bottom (plugged)
CODE TITLE	Series 26 gear motor
Design code	A
Displacement	17.4 cm3/r [1.06 in3/r]
Identification	Standard
Mounting feature	(2-bolt a) SAE flange series 82-2
Output shaft	Straight shaft dia 15.88 [.625], keyway 4.1 X 25.4 [.16 X 1.00], shaft ext 58.7 [2.31] (key included)
Paint	Primer per spec 209-13a
Ports and location	Inlet port 1.0625-12 un-2b SAE o-ring port; outlet port 1.0625-12 un-2b SAE o-ring port - side ports
Relief valve full flow setting	No relief valve setting
Relief valve type	No relief valve
Rotation	Bi-directional
Special features	No special features
Test data	Generic
Unit type	Plain
