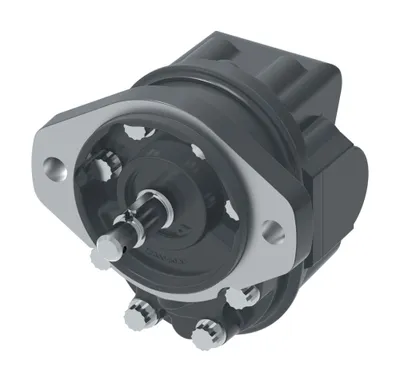

Danfoss 26705-DAD

GEAR MOTOR ASSY

MPN: 26705-DAD
Category: Gear motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 26705-DAD?

Danfoss GEAR MOTOR ASSY, manufacturer part number 26705-DAD. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
Case drain	Internal with bi-directional checks, .5625-18 unf-2b sae o-ring port - bottom (plugged)
CODE TITLE	Series 26 gear motor
Design code	A
Displacement	14.6 cm3/r [.89 in3/r]
Identification	Standard
Mounting feature	(2-bolt a) SAE flange series 82-2
Output shaft	Straight shaft dia 15.88 [.625], keyway 4.1 X 13.5 [.16 X .53], shaft ext 31.8 [1.25] (key included)
Paint	Primer per spec 209-13a
Ports and location	Inlet port 1.0625-12 un-2b SAE o-ring port; outlet port 1.0625-12 un-2b SAE o-ring port - side ports
Relief valve full flow setting	No relief valve setting
Relief valve type	No relief valve
Rotation	Bi-directional
Special features	No special features
Test data	Generic
Unit type	Plain
