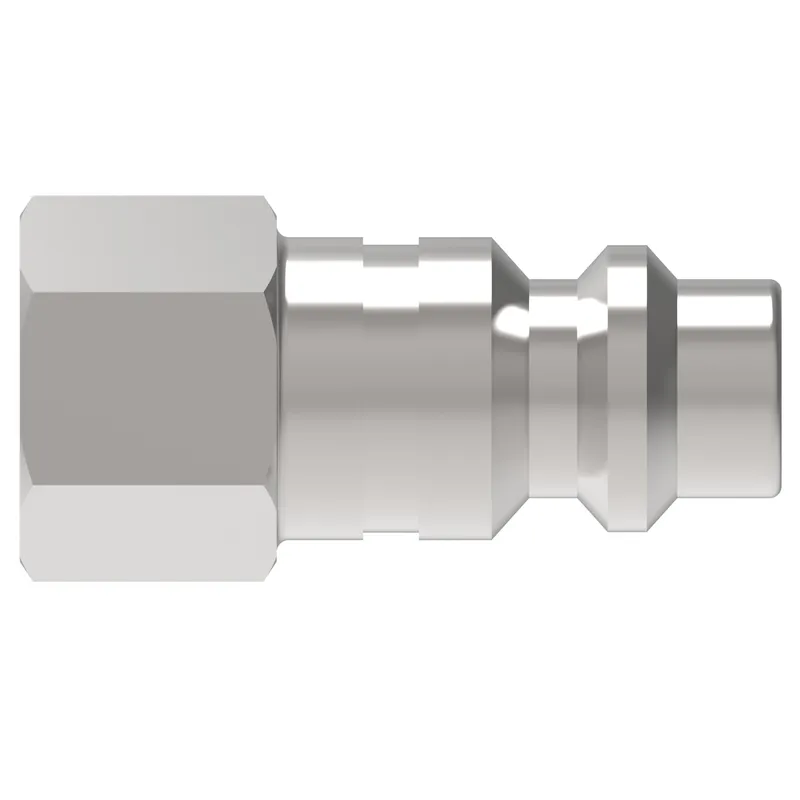

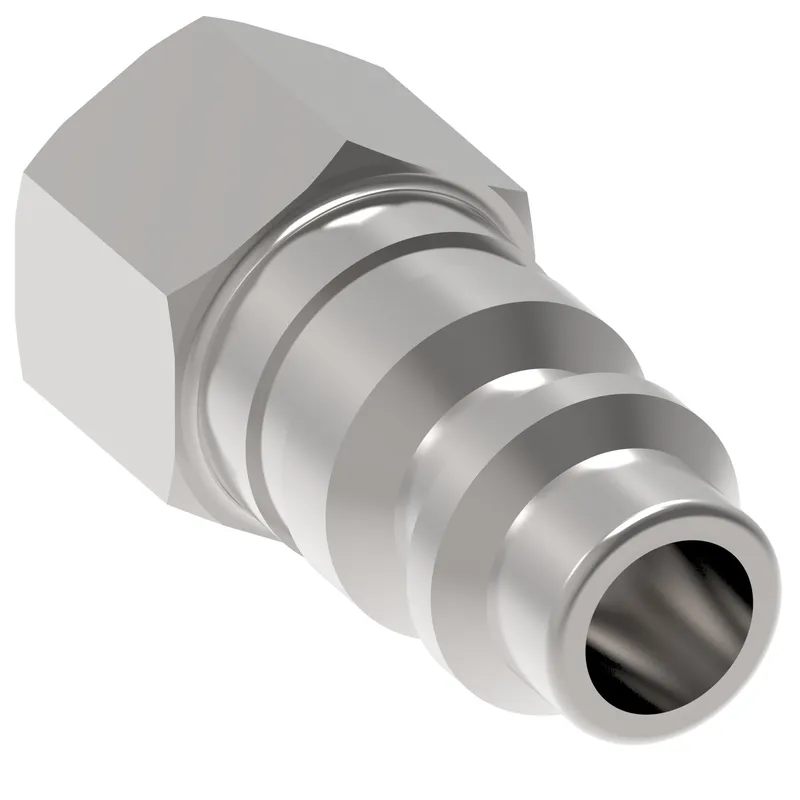

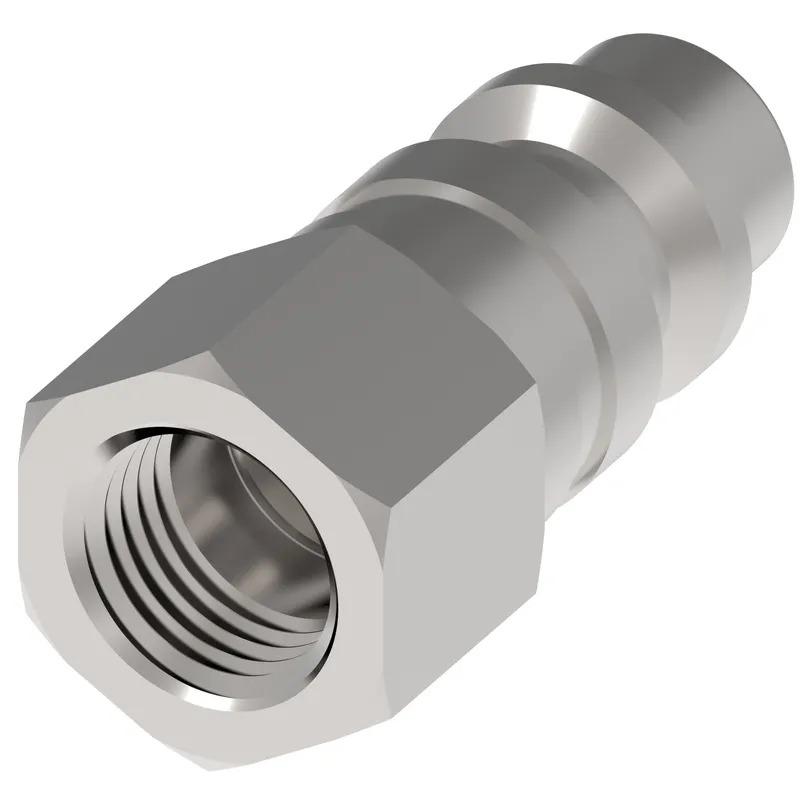

COUPLING,Auto-F,M,1/4,B,-4NPT,NBR

Name: COUPLING,Auto-F,M,1/4,B,-4NPT,NBR
Brand: Danfoss (Drives)
SKU: 2609

MPN: 2609 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 2609 be shipped?

2609 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2609 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2609 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2609, subject to availability and destination.

Danfoss COUPLING,Auto-F,M,1/4,B,-4NPT,NBR, manufacturer part number 2609. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146099594
Angle shape	Straight
Body size	1/4
Burst pressure min bar	41
Burst pressure min psi	600
Connection style	Automatic connect
End size 2	-4
End type 1	Male push to connect
End type 2	Female pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	209.22
Flow rate LPM	791.98
Fluid compatibility	Compressed air
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Male half
Latch type	Push/pull
Product height in	0.790
Product height mm	20.066
Product length in	1.550
Product length mm	39.370
Product material	Carbon steel
Product width in	0.790
Product width mm	20.066 mm
Safety locking mechanism	Pin lock
Seal material	Nitrile (NBR)
Working pressure max psi	150
Working pressure max BAR	10
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
