Danfoss 24291Y-08-06H29TZ

HOSE NIPPLE, 2P/06, ORS-F/08, CS, 90D

MPN
24291Y-08-06H29TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

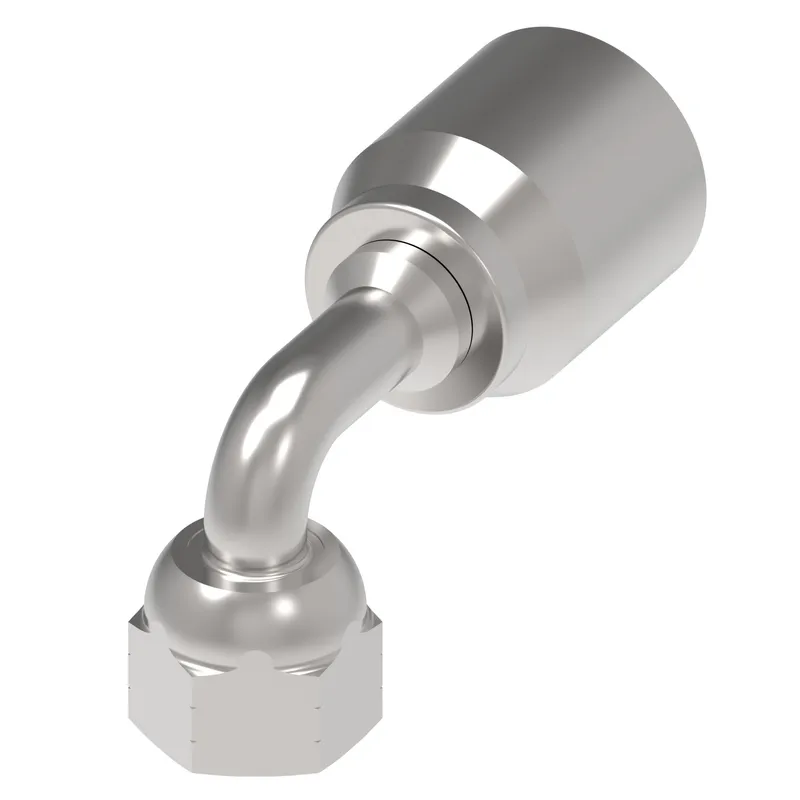

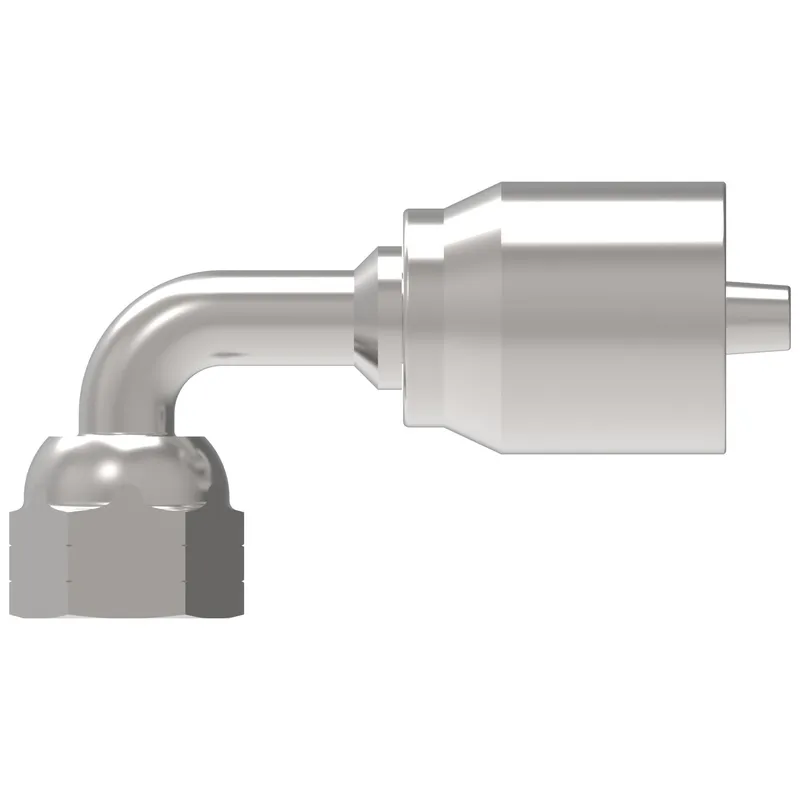

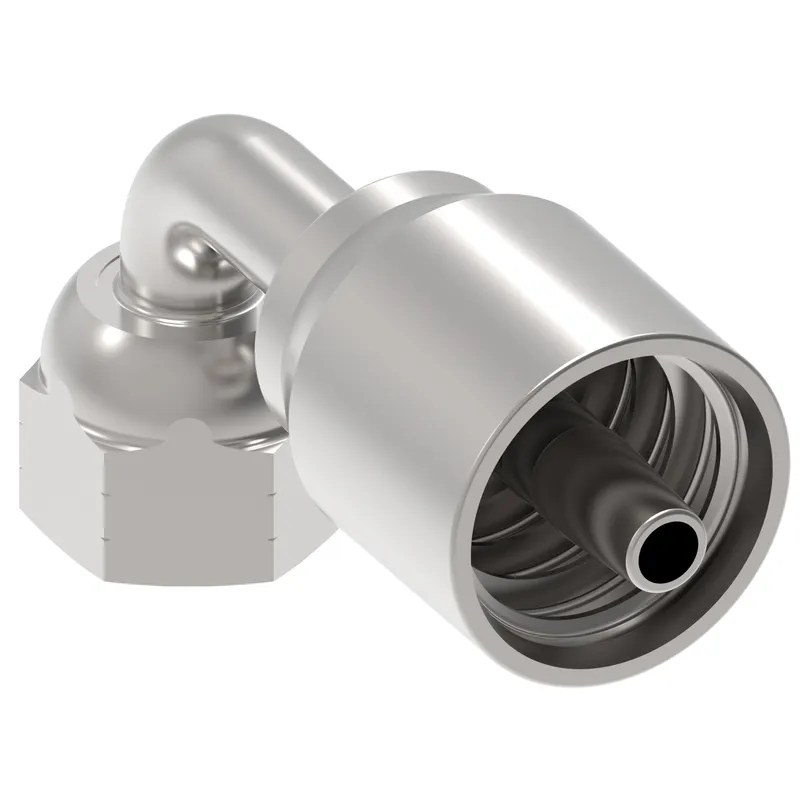

What is the Danfoss 24291Y-08-06H29TZ?

Danfoss HOSE NIPPLE, 2P/06, ORS-F/08, CS, 90D, manufacturer part number 24291Y-08-06H29TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.590
A dimension MM66.000
Angle shape90 Degree
Compatible hose ID IN0.380
Compatible hose ID MM9.525
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN1.140
Drop dimension MM29.00
End size 1-8
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 2 IN0.940
Hex size 2 MM23.876
Hose cut off factor IN1.417
Hose cut off factor MM36.000
Hose size-6
Inside diameter IN0.275
Inside diameter MM7.000
Product height in2.112
Product height mm53.645
Product length in3.070
Product length mm77.978
Product materialCarbon steel
Product width in1.074
Product width mm27.28
Thread sealantNo
Working pressure max BAR552
Working pressure max PSI8100
