Danfoss 24291Y-04-04CNZ

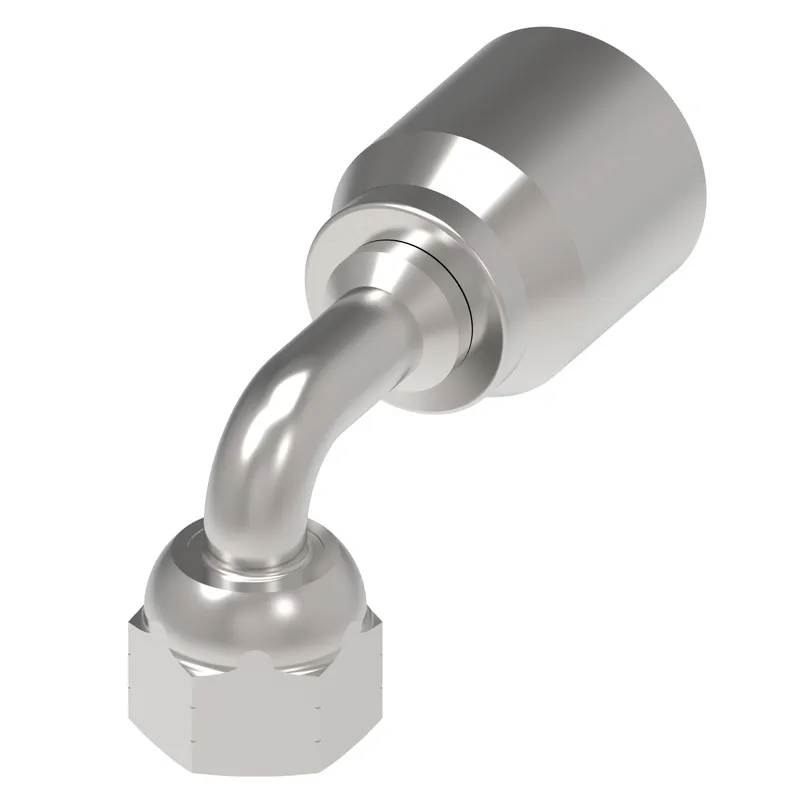

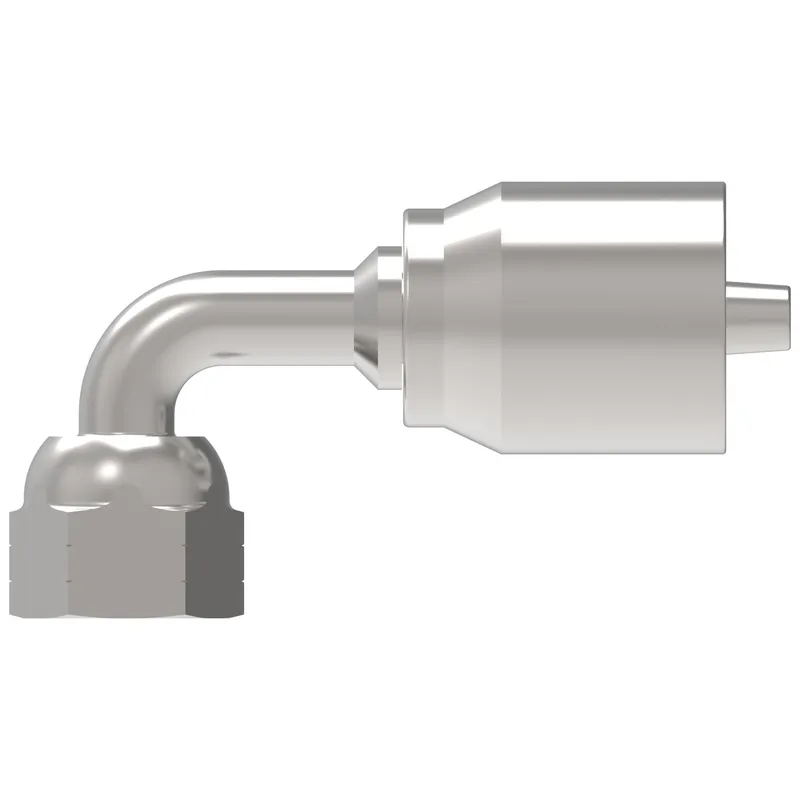

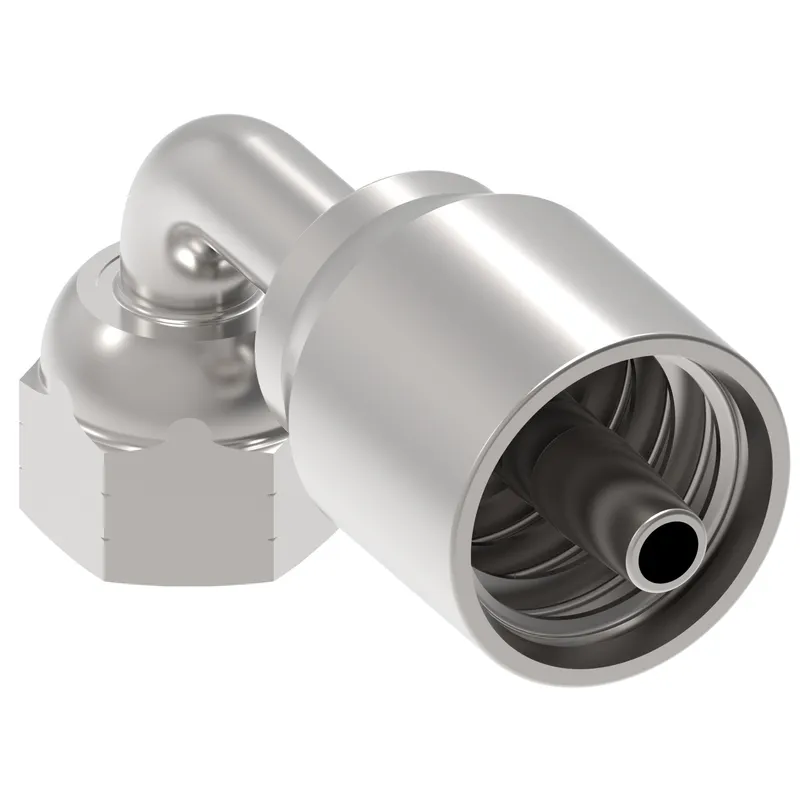

HOSE NIPPLE, 2P/04, ORS-F/04, CS, 90D

MPN
24291Y-04-04CNZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24291Y-04-04CNZ?

Danfoss HOSE NIPPLE, 2P/04, ORS-F/04, CS, 90D, manufacturer part number 24291Y-04-04CNZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.280
A dimension MM58.000
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Construction StyleCrimp
Drop dimension IN1.610
Drop dimension MM41.00
End size 1-4
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.670
Hex size 1 MM17.018
Hose cut off factor IN1.181
Hose cut off factor MM30.000
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in2.140
Product height mm54.356
Product length in2.610
Product length mm66.294
Product materialCarbon steel
Product width in0.900
Product width mm22.86
Thread sealantNo
Working pressure max BAR621
Working pressure max PSI9100

24291Y-04-04CNZ: frequently asked questions

When can 24291Y-04-04CNZ be shipped?

24291Y-04-04CNZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24291Y-04-04CNZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24291Y-04-04CNZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24291Y-04-04CNZ, subject to availability and destination.
