Danfoss 24291-16-16H65TZ

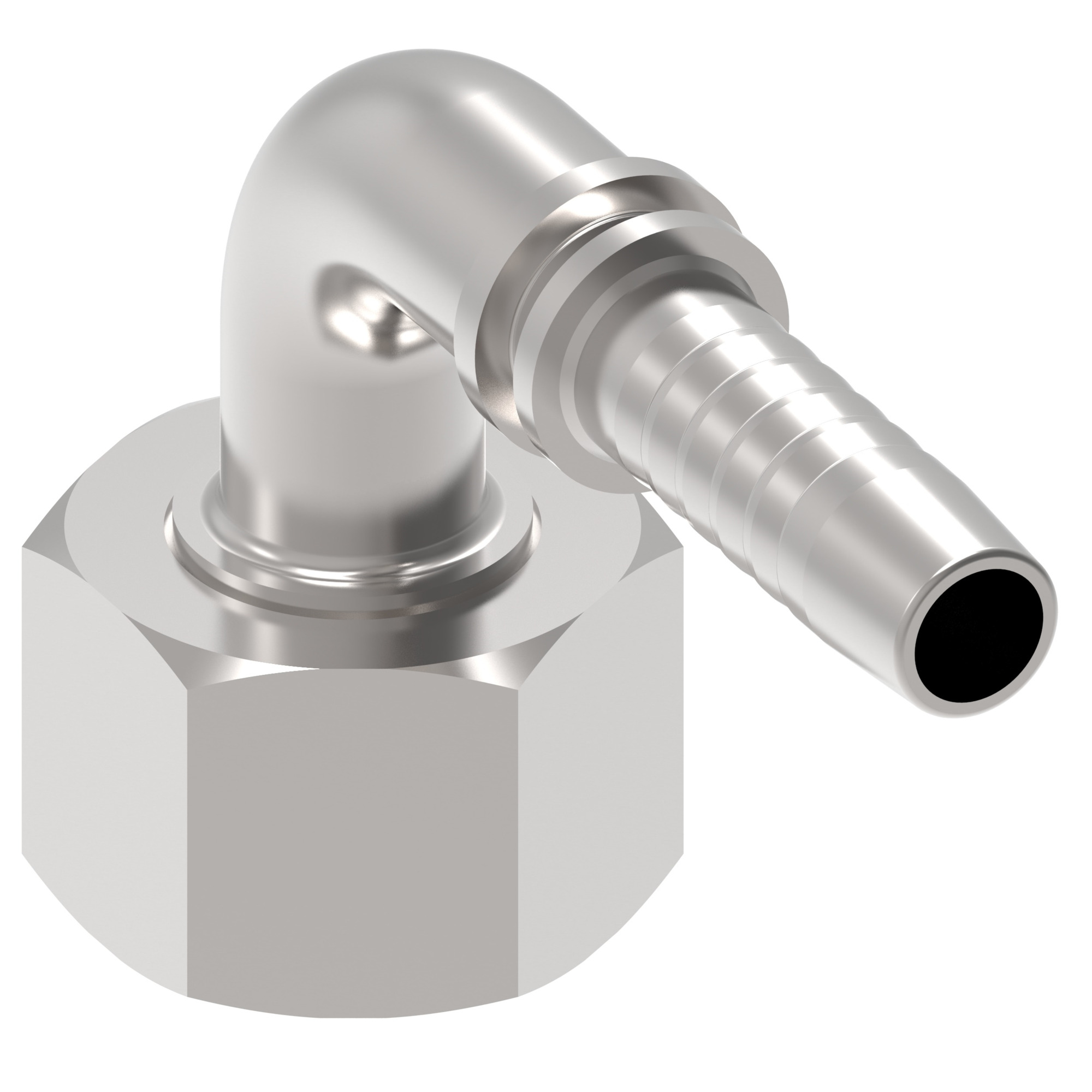

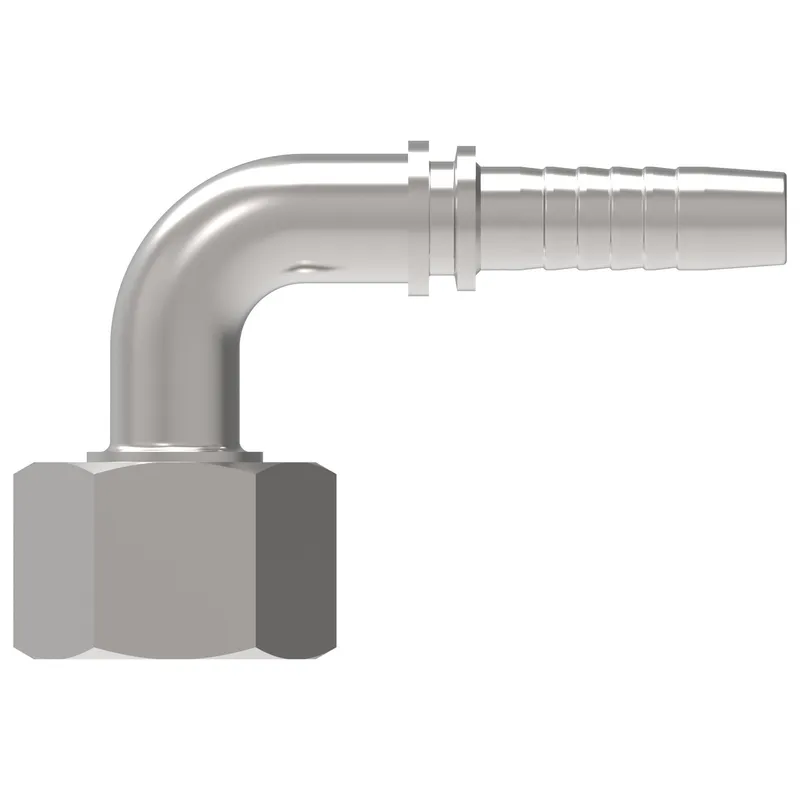

HOSE NIPPLE, 2P/16, ORS-F/16, CS, 90D

MPN
24291-16-16H65TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24291-16-16H65TZ?

Danfoss HOSE NIPPLE, 2P/16, ORS-F/16, CS, 90D, manufacturer part number 24291-16-16H65TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.870
A dimension MM123.900
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN2.570
Drop dimension MM65.50
End size 1-16
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 2 IN1.610
Hex size 2 MM40.894
Hose cut off factor IN3.027
Hose cut off factor MM76.900
Hose size-16
Inside diameter IN0.820
Inside diameter MM21.000
Product height in3.732
Product height mm94.793
Product length in5.685
Product length mm144.399
Product materialCarbon steel
Product width in1.614
Product width mm40.996
Thread sealantNo
Working pressure max BAR414
Working pressure max PSI6000

24291-16-16H65TZ: frequently asked questions

When can 24291-16-16H65TZ be shipped?

24291-16-16H65TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24291-16-16H65TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24291-16-16H65TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24291-16-16H65TZ, subject to availability and destination.
