Danfoss 24291-06-04H25TZ

HOSE NIPPLE, 2P/04, ORS-F/06, CS, 90D

MPN
24291-06-04H25TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24291-06-04H25TZ?

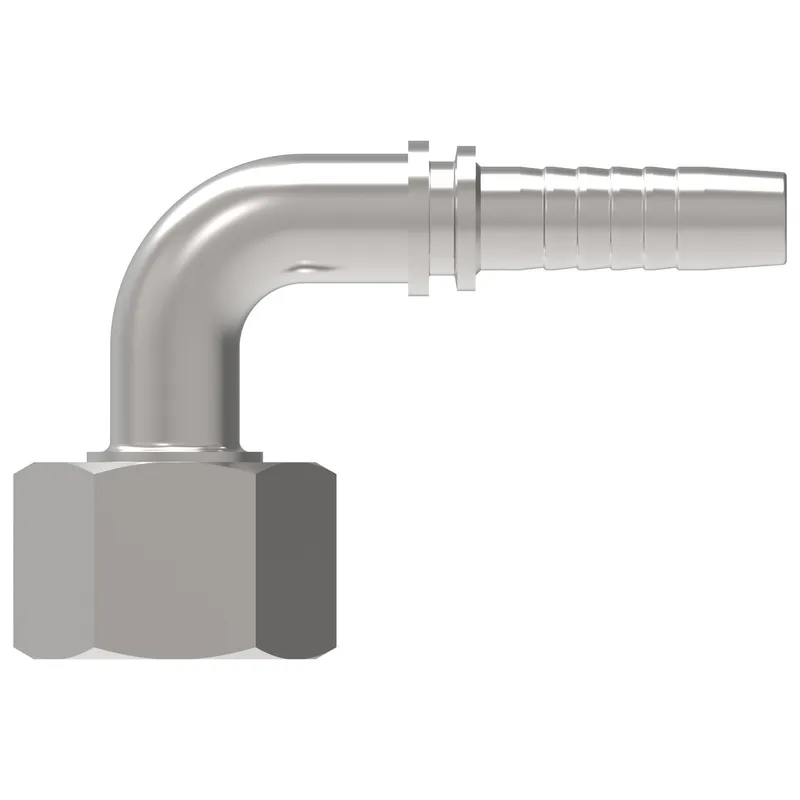

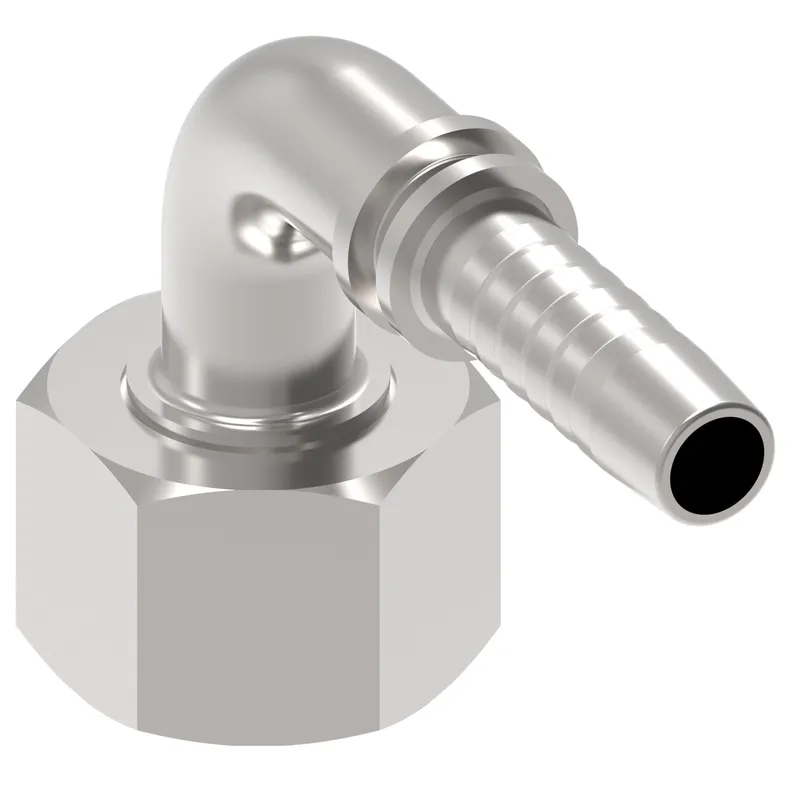

Danfoss HOSE NIPPLE, 2P/04, ORS-F/06, CS, 90D, manufacturer part number 24291-06-04H25TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.340
A dimension MM59.500
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN0.980
Drop dimension MM25.00
End size 1-6
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 2 IN0.870
Hex size 2 MM22.098
Hose cut off factor IN1.240
Hose cut off factor MM31.500
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in1.614
Product height mm40.996
Product length in2.775
Product length mm70.485
Product materialCarbon steel
Product width in0.866
Product width mm21.996
Thread sealantNo
Working pressure max BAR621
Working pressure max PSI9100

24291-06-04H25TZ: frequently asked questions

When can 24291-06-04H25TZ be shipped?

24291-06-04H25TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24291-06-04H25TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24291-06-04H25TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24291-06-04H25TZ, subject to availability and destination.
