Danfoss 24291-04-04H21ZF

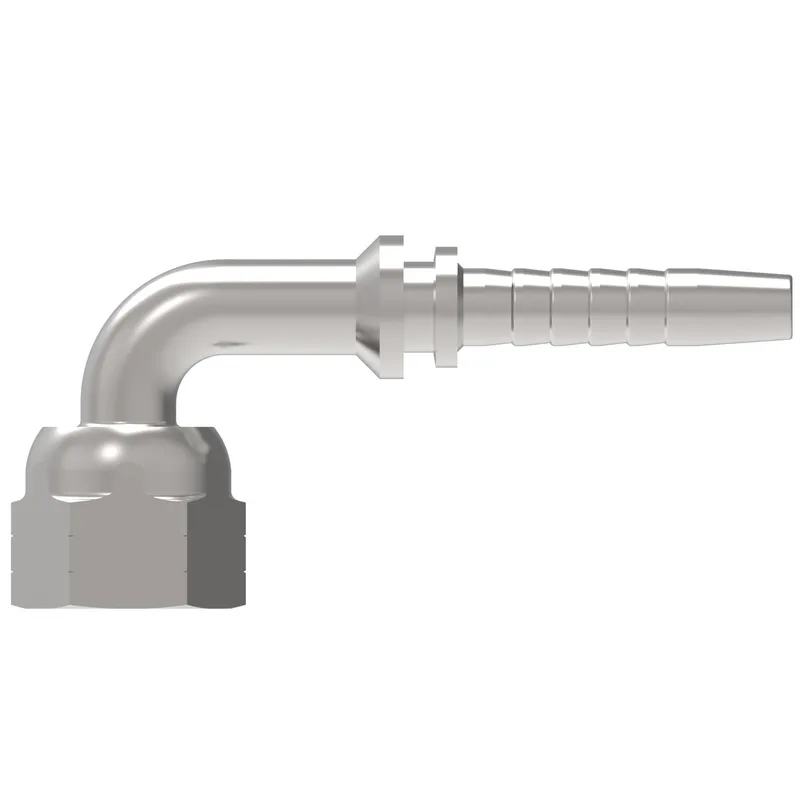

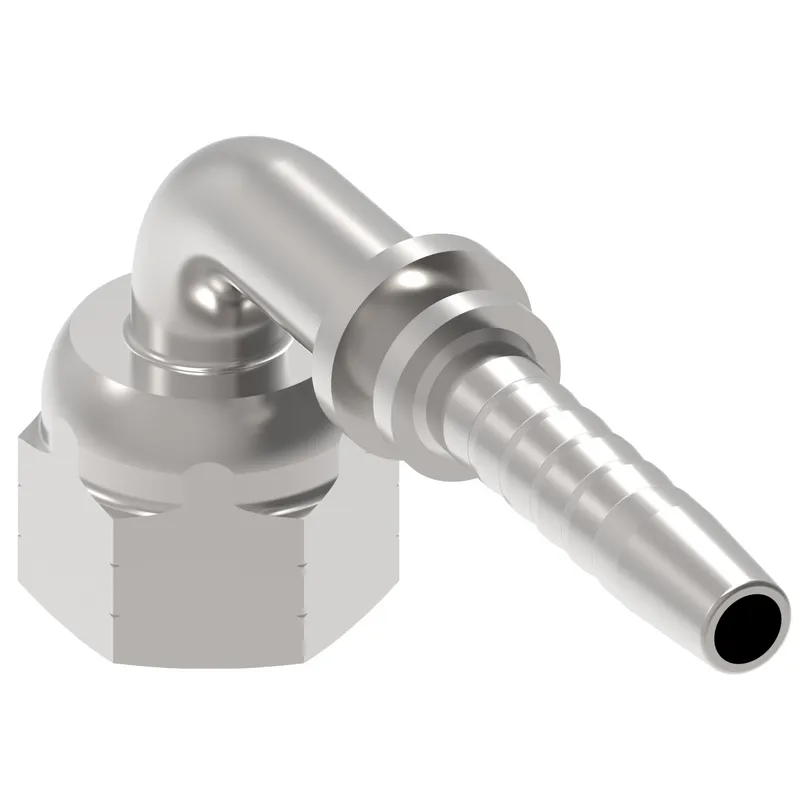

HOSE NIPPLE ASSY,2P/04,ORS-F/04,CS,90D

MPN
24291-04-04H21ZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24291-04-04H21ZF?

Danfoss HOSE NIPPLE ASSY,2P/04,ORS-F/04,CS,90D, manufacturer part number 24291-04-04H21ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146192042
A dimension IN2.340
A dimension MM59.500
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
Drop dimension IN0.820
Drop dimension MM21.00
End size 1-4
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.669
Hex size 1 MM17.000
Hose cut off factor IN1.240
Hose cut off factor MM31.500
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in1.220
Product height mm31.001
Product length in2.284
Product length mm58.001
Product materialCarbon steel
Product width in0.669
Product width mm17
Thread sealantNo
Thread size 19/16-18 UNF
Working pressure max BAR621
Working pressure max PSI9100

24291-04-04H21ZF: frequently asked questions

When can 24291-04-04H21ZF be shipped?

24291-04-04H21ZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24291-04-04H21ZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24291-04-04H21ZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24291-04-04H21ZF, subject to availability and destination.
