Danfoss 24211-10-12Z

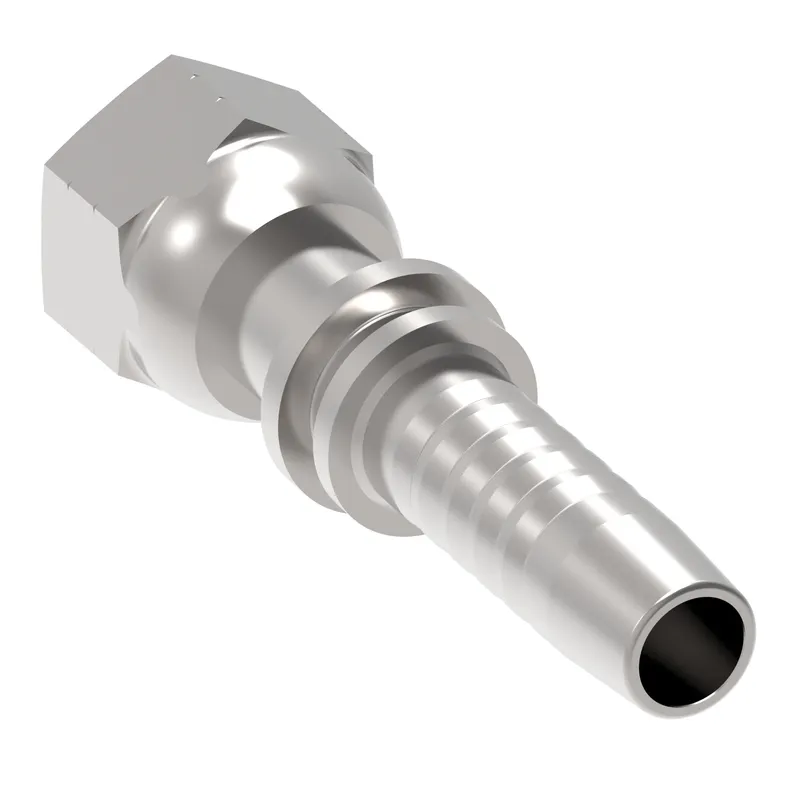

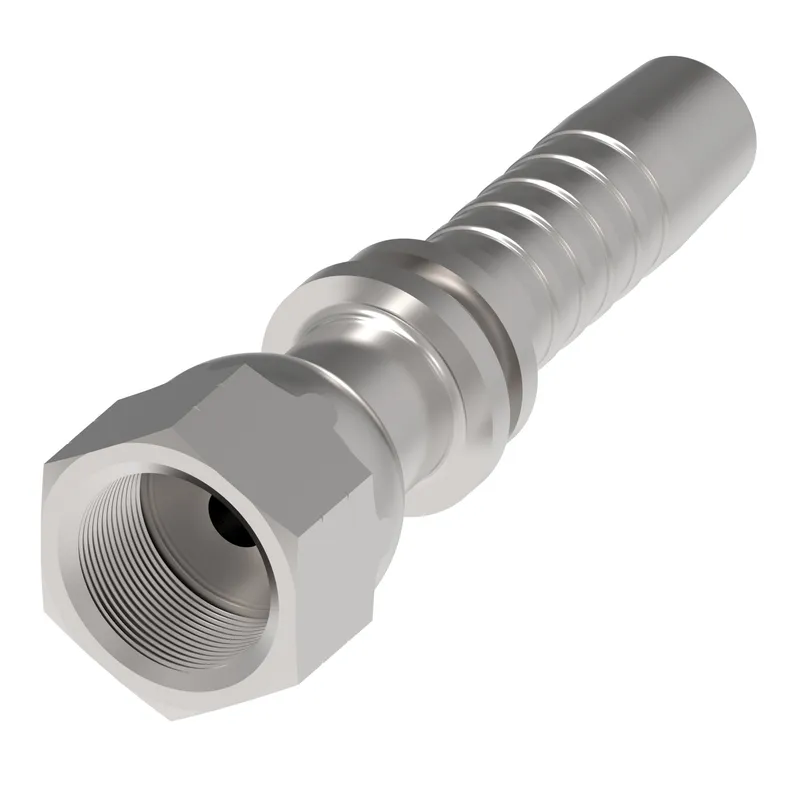

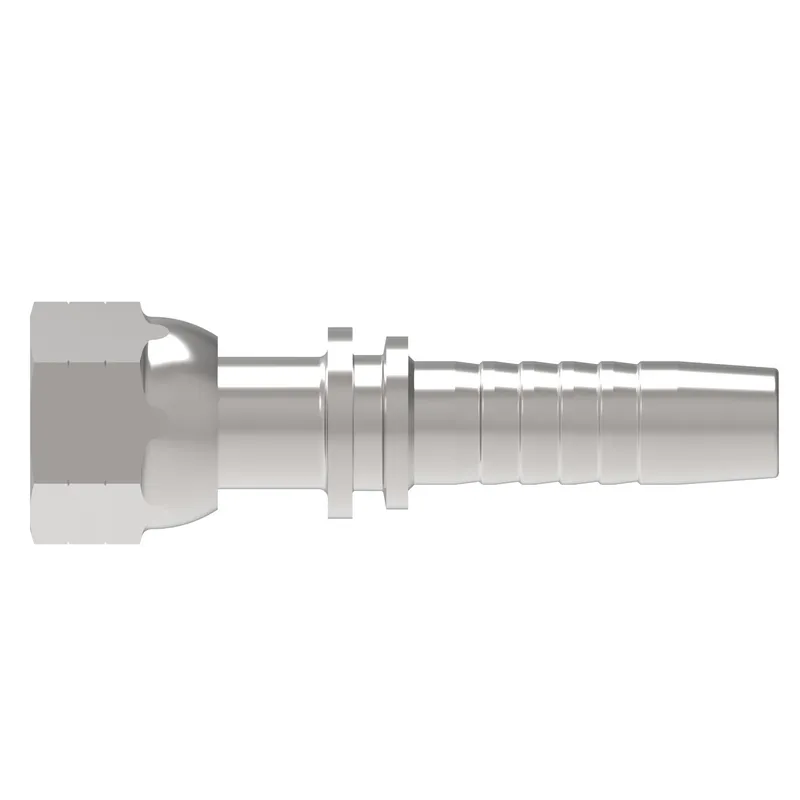

HOSE NIPPLE, 2P/12, ORS-F/10, CS, STR

MPN
24211-10-12Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24211-10-12Z?

Danfoss HOSE NIPPLE, 2P/12, ORS-F/10, CS, STR, manufacturer part number 24211-10-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.834
A dimension MM72.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.750
Construction StyleCrimp
End size 1-10
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.813
Hex size 1 MM30.000
Hose cut off factor IN1.318
Hose cut off factor MM33.500
Inside diameter IN0.472
Inside diameter MM12.000
Product height in1.360
Product height mm34.544
Product length in3.346
Product length mm84.988
Product materialCarbon steel
Product width in1.181
Product width mm29.997
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Thread size 11-14 UNS
Working pressure max BAR552
Working pressure max PSI8100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
