Danfoss 24211-08-08ZF

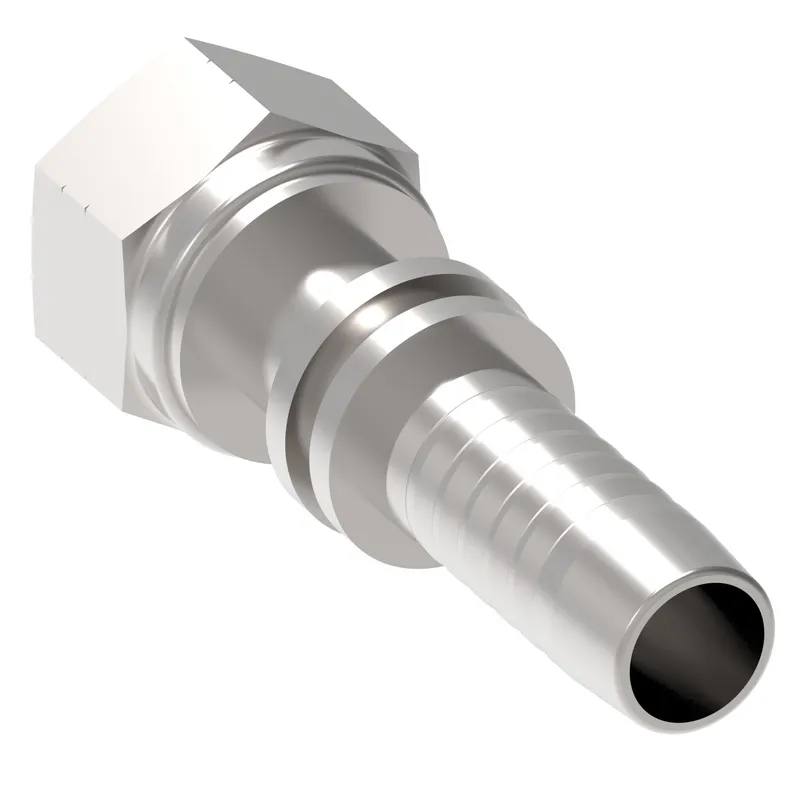

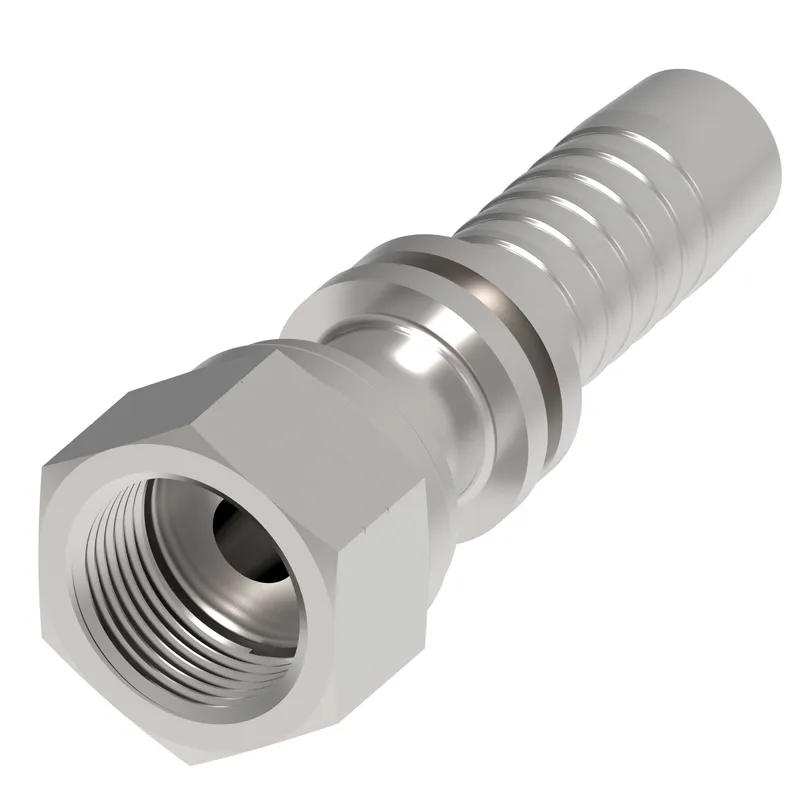

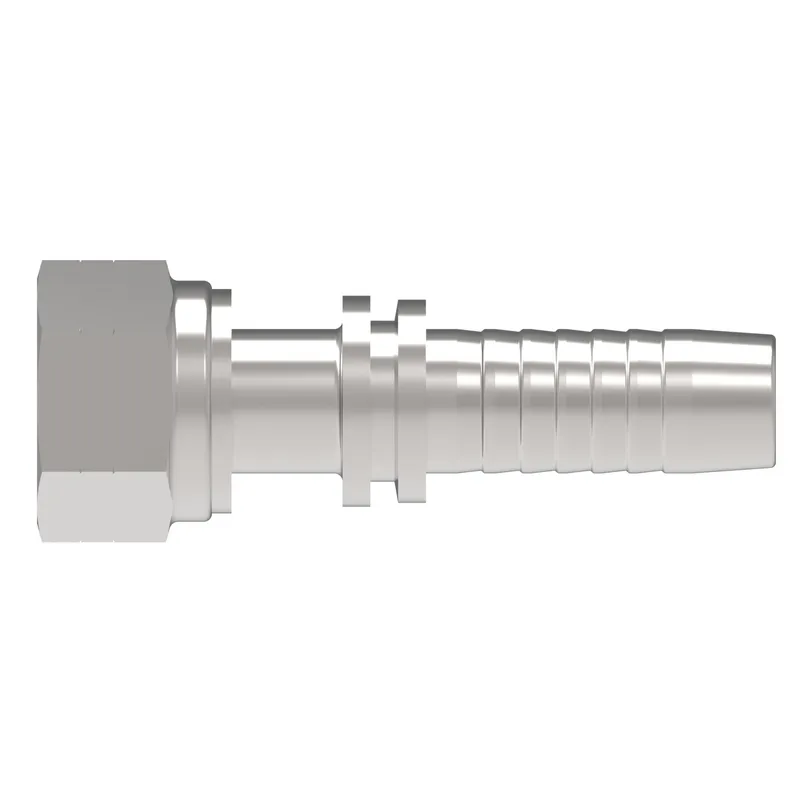

HOSE NIPPLE ASSY,1P/08,ORS-F/08,CS,STR

MPN
24211-08-08ZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24211-08-08ZF?

Danfoss HOSE NIPPLE ASSY,1P/08,ORS-F/08,CS,STR, manufacturer part number 24211-08-08ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146191786
A dimension IN2.340
A dimension MM59.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Construction StyleCrimp
End size 1-8
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.944
Hex size 1 MM24.000
Hose cut off factor IN1.100
Hose cut off factor MM28.000
Inside diameter IN0.390
Inside diameter MM10.000
Product height in1.220
Product height mm30.988
Product length in2.340
Product length mm59.436
Product materialCarbon steel
Product width in1.063
Product width mm27
Thread sealantNo
Thread size 113/16-16 UN
Working pressure max BAR552
Working pressure max PSI8100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

24211-08-08ZF: frequently asked questions

When can 24211-08-08ZF be shipped?

24211-08-08ZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24211-08-08ZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24211-08-08ZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24211-08-08ZF, subject to availability and destination.
