Danfoss 22691K-12-12ORZ

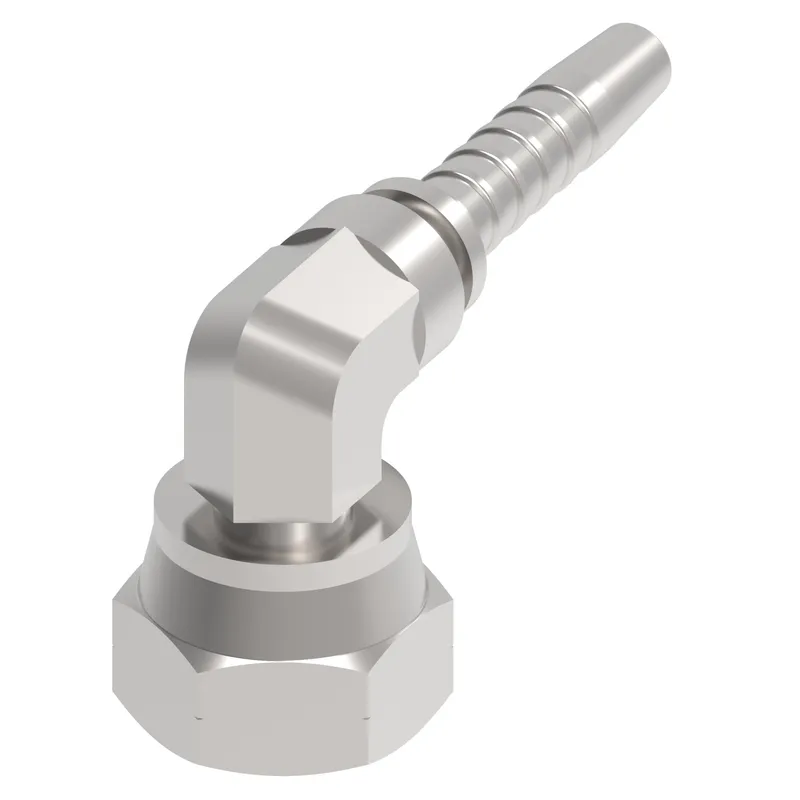

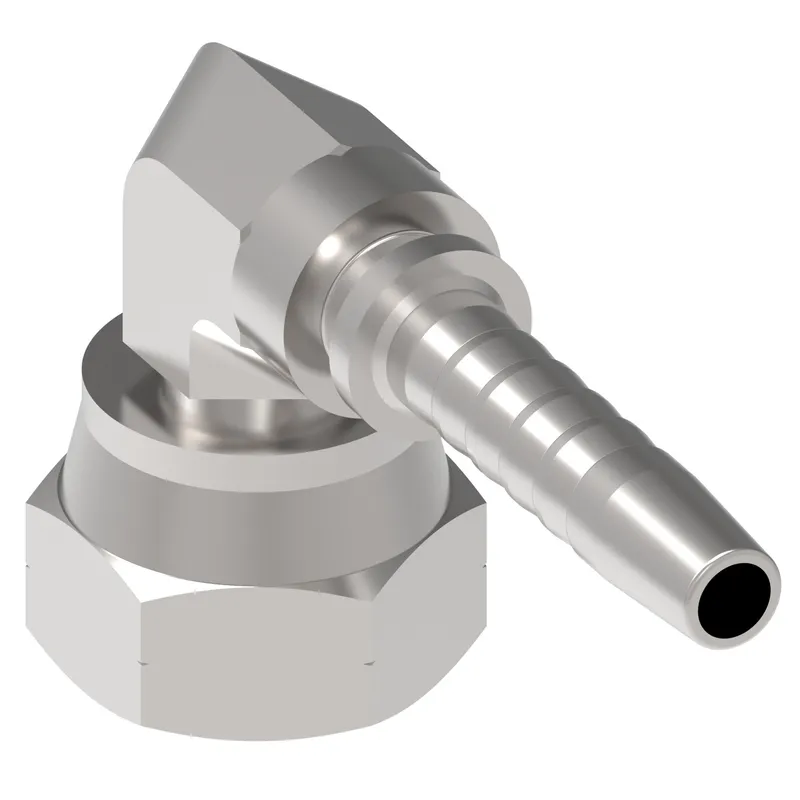

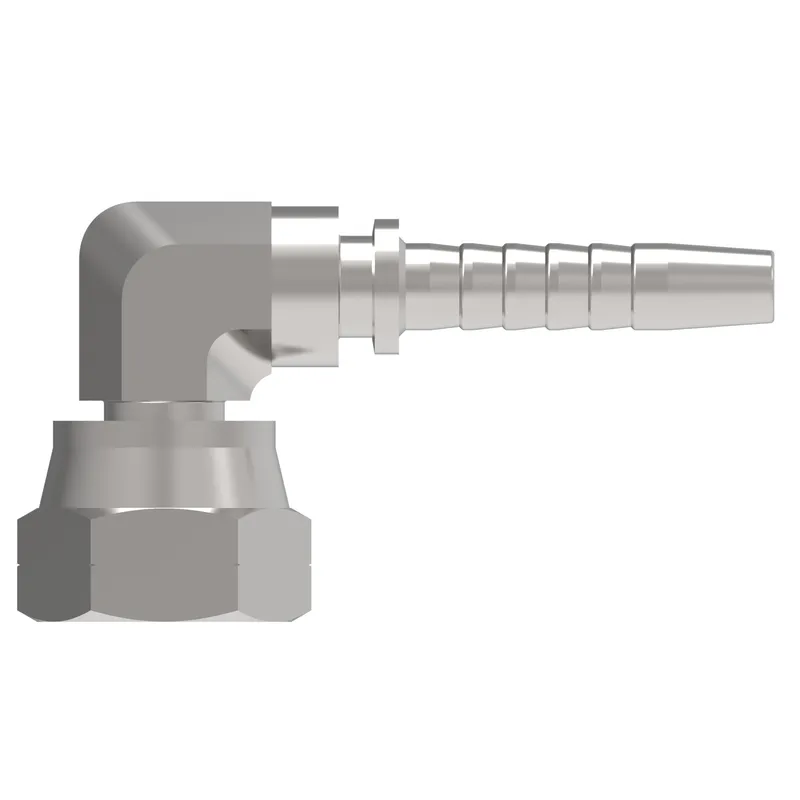

HOSE NIPPLE, 2P/12, BF/12, CS, 90D

MPN: 22691K-12-12ORZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22691K-12-12ORZ?

Danfoss HOSE NIPPLE, 2P/12, BF/12, CS, 90D, manufacturer part number 22691K-12-12ORZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.070
A dimension MM	103.400
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.050
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	2.600
Drop dimension MM	66.10
End size 1	-12
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	1.259
Hex size 1 MM	32.000
Hex size 2 IN	1.250
Hex size 2 MM	31.750
Hose cut off factor IN	2.560
Hose cut off factor MM	64.900
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	2.260
Product height mm	57.404
Product length in	3.230
Product length mm	82.042
Product material	Carbon steel
Product width in	1.250
Product width mm	31.75
Thread sealant	No
Thread size 1	G 3/4
Working pressure max BAR	330
Working pressure max PSI	4800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
