Danfoss 22691K-06-06ORZ

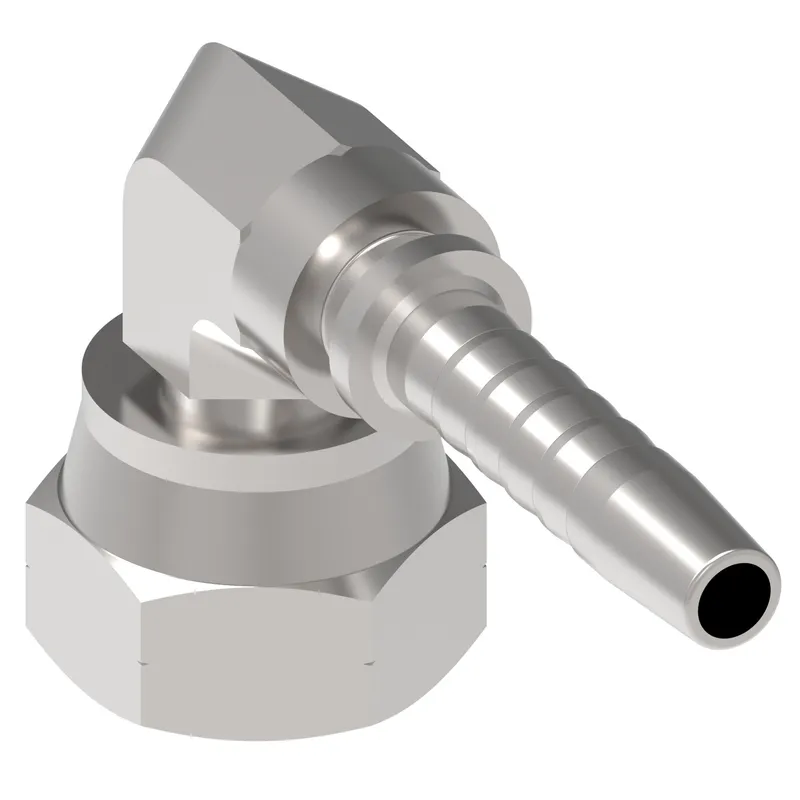

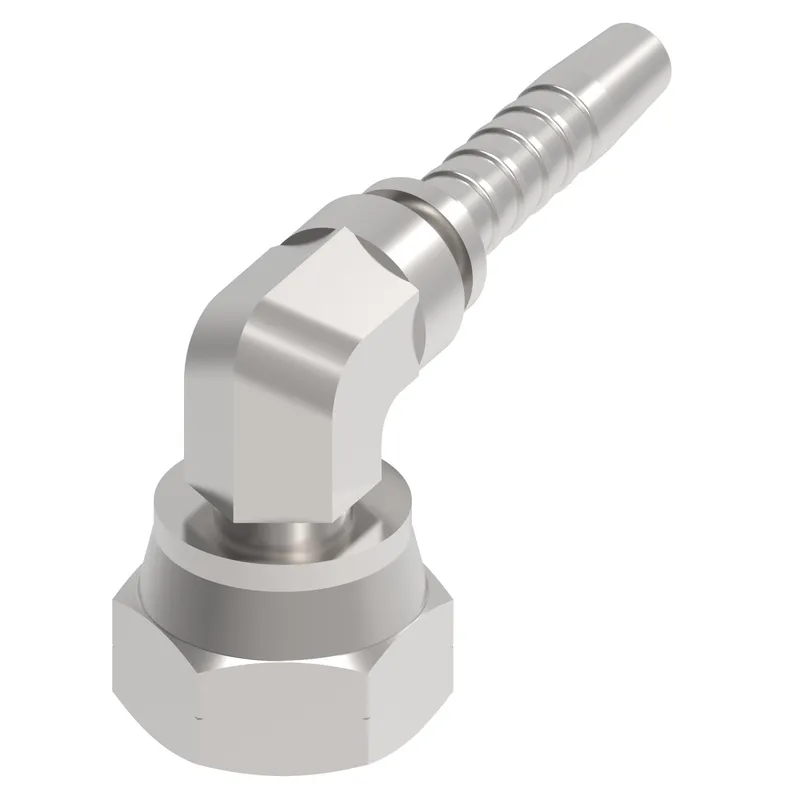

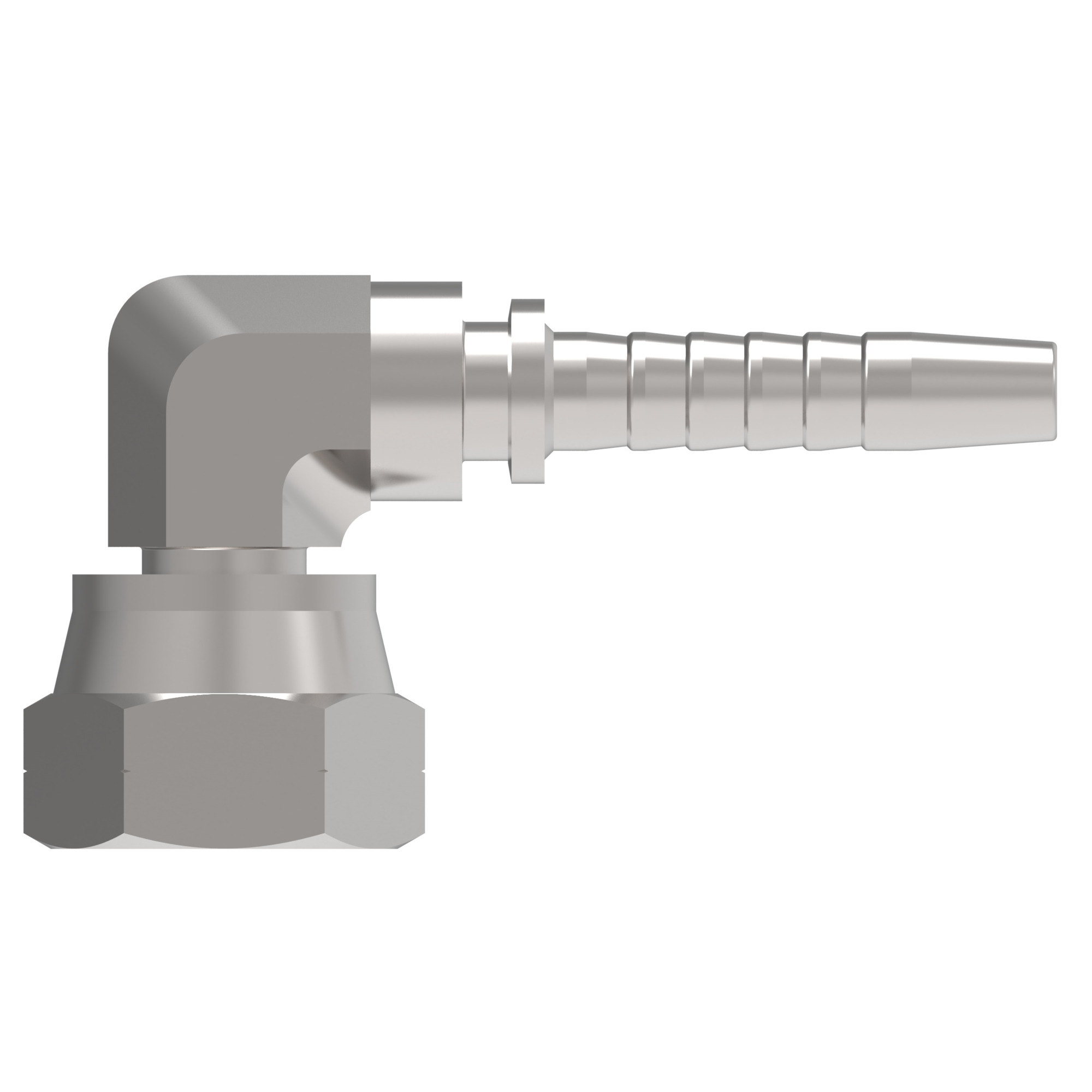

HOSE NIPPLE, 2P/06, BF/06, CS, 90D

MPN: 22691K-06-06ORZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22691K-06-06ORZ?

Danfoss HOSE NIPPLE, 2P/06, BF/06, CS, 90D, manufacturer part number 22691K-06-06ORZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.570
A dimension MM	65.300
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.525
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	1.692
Drop dimension MM	43.00
End size 1	-6
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hex size 2 IN	0.870
Hex size 2 MM	22.098
Hose cut off factor IN	1.389
Hose cut off factor MM	35.300
Hose size	-6
Inside diameter IN	0.250
Inside diameter MM	4.000
Product height in	1.510
Product height mm	38.354
Product length in	2.400
Product length mm	60.960
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098
Thread sealant	No
Thread size 1	G 3/8
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

22691K-06-06ORZ: frequently asked questions

When can 22691K-06-06ORZ be shipped?

22691K-06-06ORZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 22691K-06-06ORZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 22691K-06-06ORZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22691K-06-06ORZ, subject to availability and destination.
