Danfoss 22611Y-24-24WZ

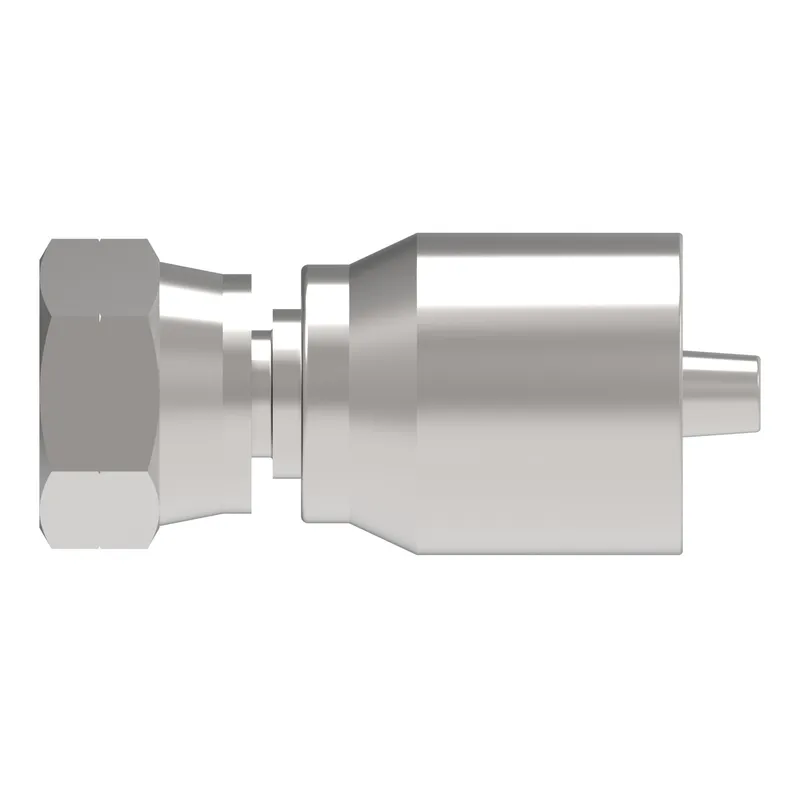

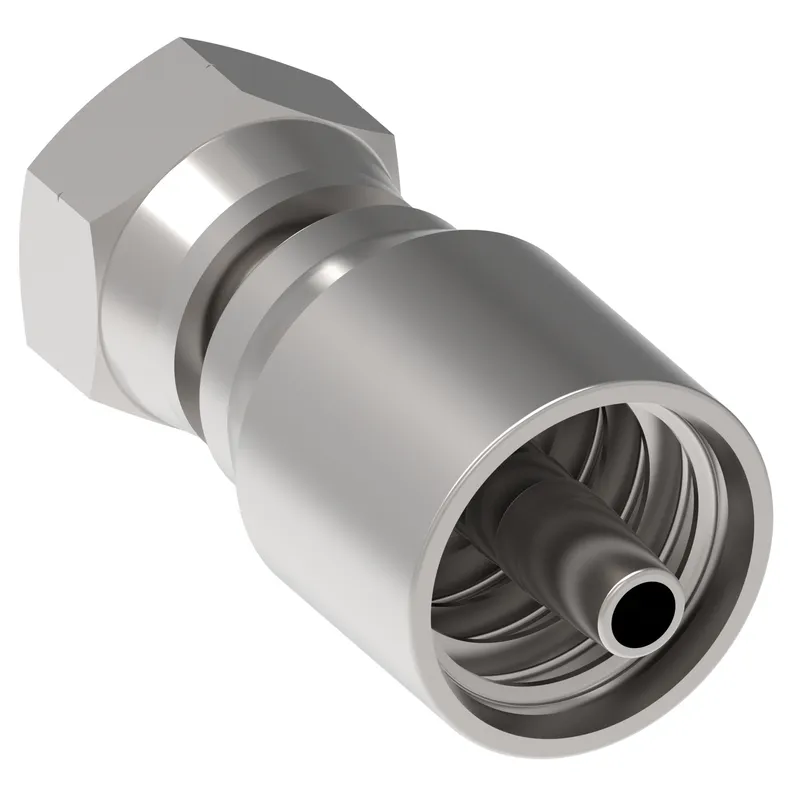

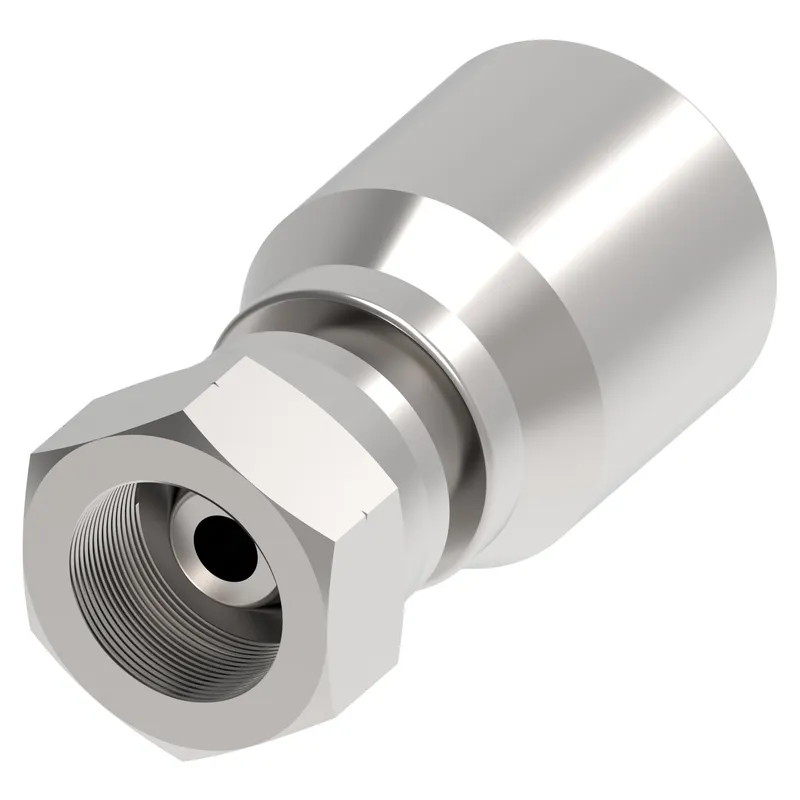

HOSE NIPPLE ASSY, 1P/24, BF/24, CS, STR

MPN: 22611Y-24-24WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611Y-24-24WZ?

Danfoss HOSE NIPPLE ASSY, 1P/24, BF/24, CS, STR, manufacturer part number 22611Y-24-24WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.930
A dimension MM	100.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
End connection torque	258-347 lb-ft(350-470 Nm)
End size 1	-24
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	2.170
Hex size 2 MM	55.118
Hose cut off factor IN	1.250
Hose cut off factor MM	32.000
Hose size	-24
Inside diameter IN	1.250
Inside diameter MM	32.000
Product height in	2.700
Product height mm	68.580
Product length in	4.430
Product length mm	112.522
Product material	Carbon steel
Product width in	2.696
Product width mm	68.478
Thread sealant	No
Thread size 1	G 1 1/2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
