Danfoss 22611Y-12-12Z

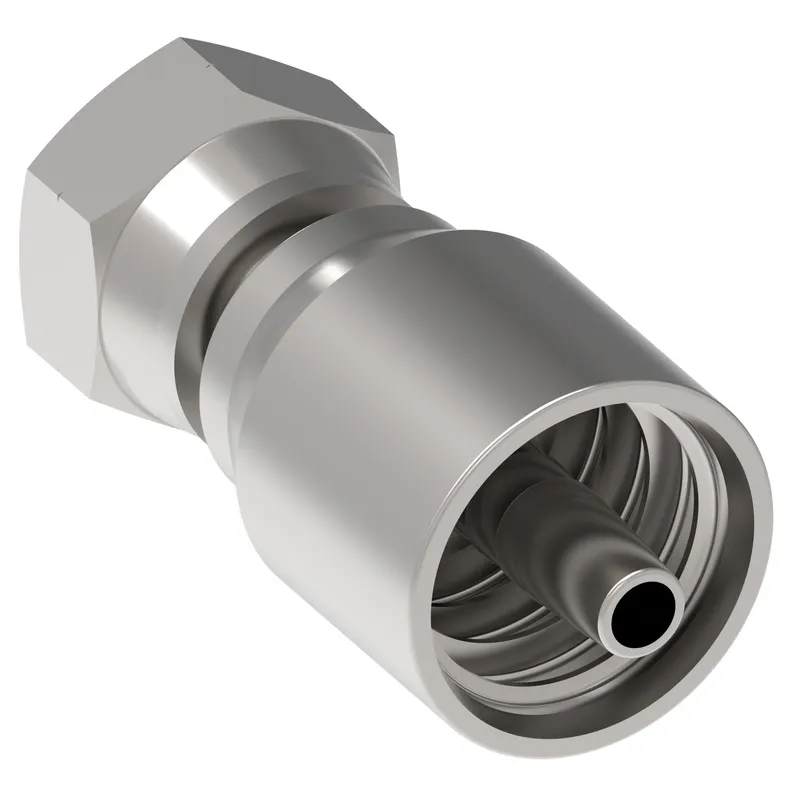

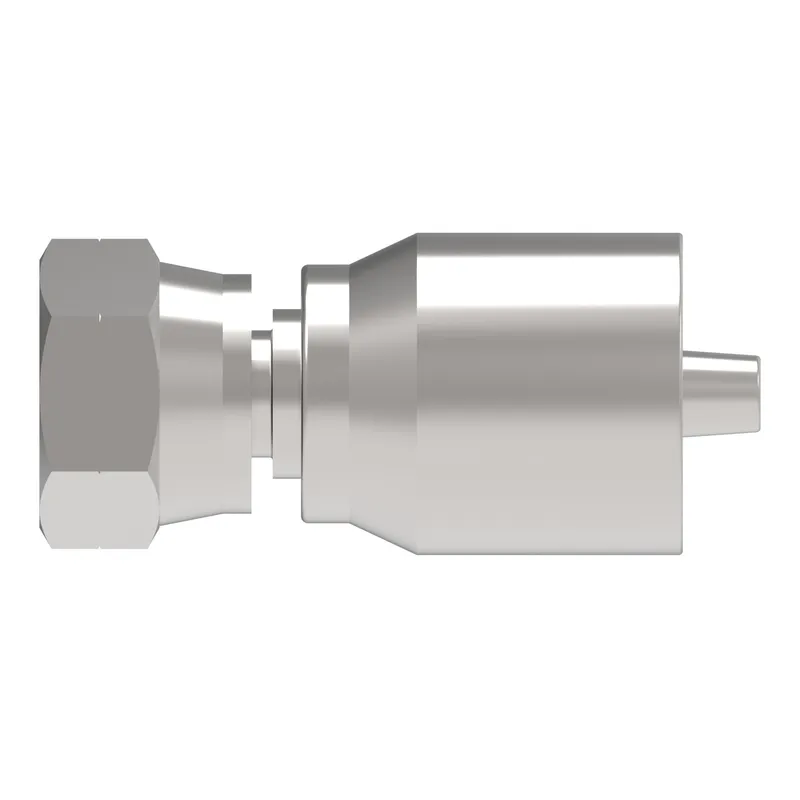

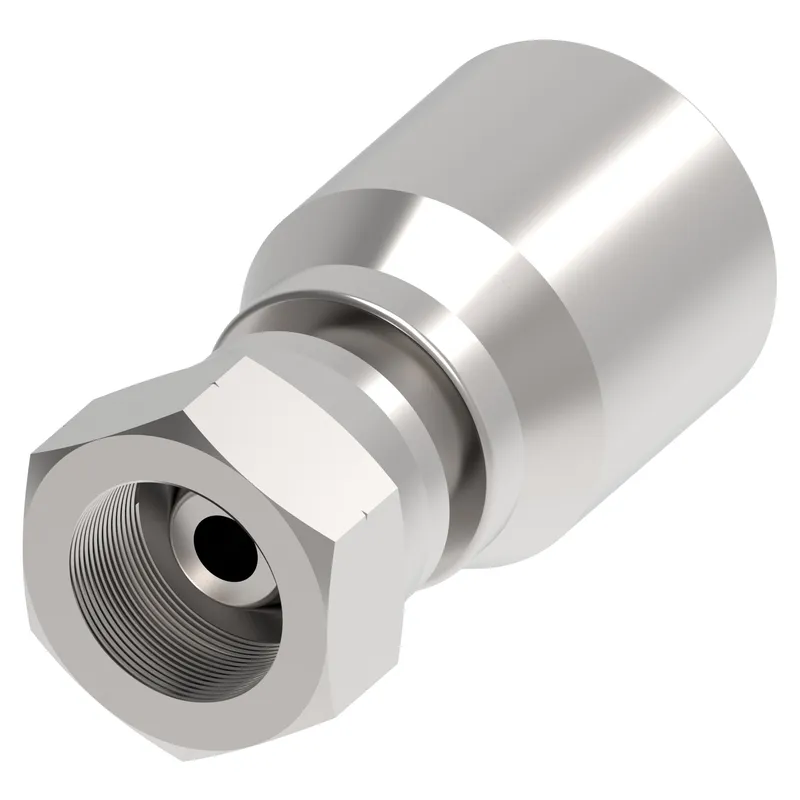

HOSE NIPPLE ASSY, 1P/12, BF/12, CS, STR

MPN: 22611Y-12-12Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611Y-12-12Z?

Danfoss HOSE NIPPLE ASSY, 1P/12, BF/12, CS, STR, manufacturer part number 22611Y-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.460
A dimension MM	62.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
End connection torque	103-118 lb-ft(140-160 Nm)
End size 1	-12
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	1.260
Hex size 2 MM	32.004
Hose cut off factor IN	0.940
Hose cut off factor MM	24.000
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	1.560
Product height mm	39.624
Product length in	2.890
Product length mm	73.406
Product material	Carbon steel
Product width in	1.550
Product width mm	39.37
Thread sealant	No
Thread size 1	G 3/4
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
