Danfoss 2253-6-6S

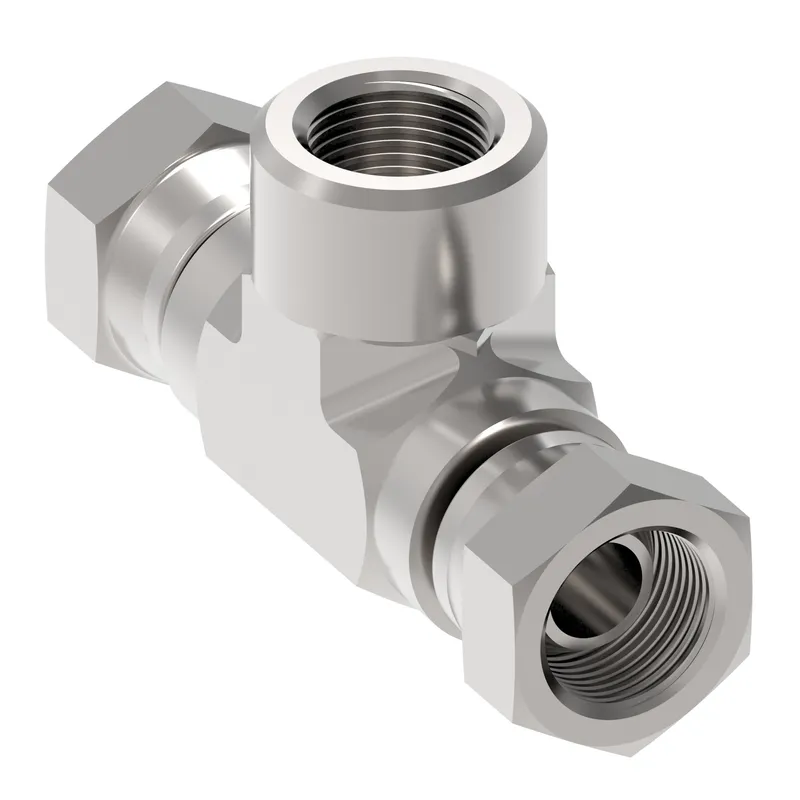

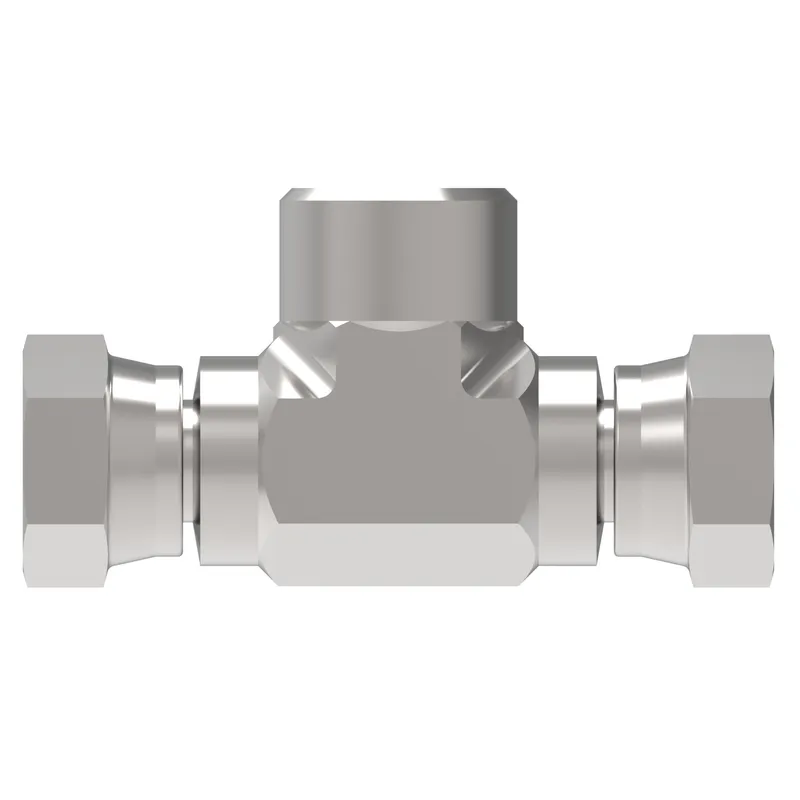

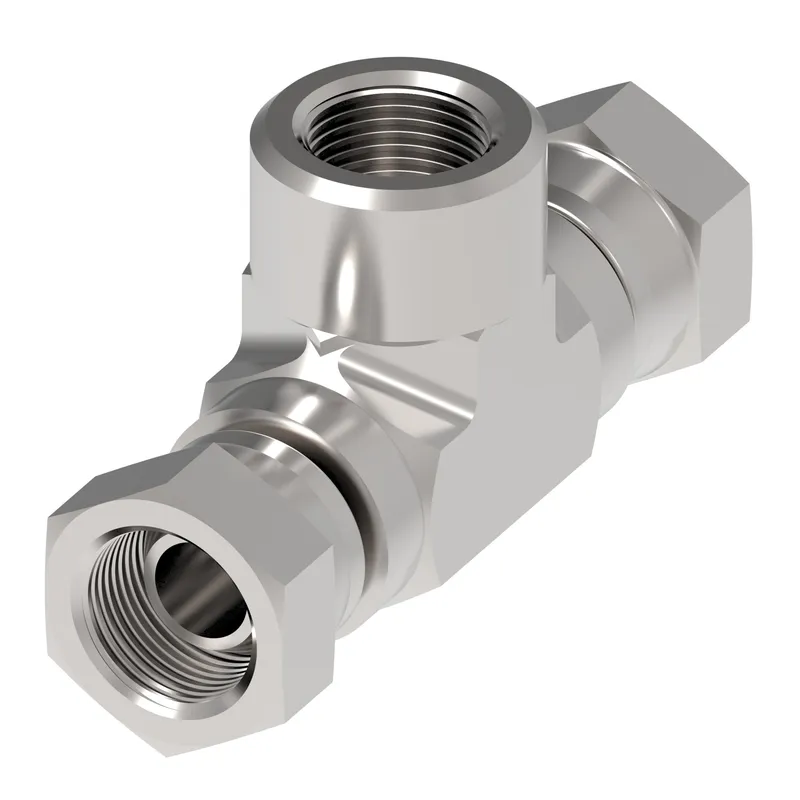

Adapter Tee NTPF/NPSM

MPN: 2253-6-6S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2253-6-6S?

Danfoss Adapter Tee NTPF/NPSM, manufacturer part number 2253-6-6S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146188144
Brand	Danfoss
Drop dimension IN	1.020
Drop dimension MM	25.90
End Type 1	Female pipe swivel (NPSM)
End Type 2	Female pipe swivel (NPSM)
End type 3	Female Pipe (NPT)
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hex size 2 IN	0.875
Hex size 2 MM	22.200
Hex size 3 IN	0.875
Hex size 3 MM	22.2
Item type	Adapter-tee
Product material	Carbon steel
Thread sealant	No
Tube outside diameter 1 IN	0.375
Tube outside diameter 1 MM	9.5
Tube outside diameter 2 IN	0.375
Tube outside diameter 2 MM	9.5
Tube outside diameter 3 IN	0.375
Tube outside diameter 3 MM	9.5
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
