Danfoss 2253-12-12S

Adapter, NPTF/SM tee

MPN: 2253-12-12S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2253-12-12S?

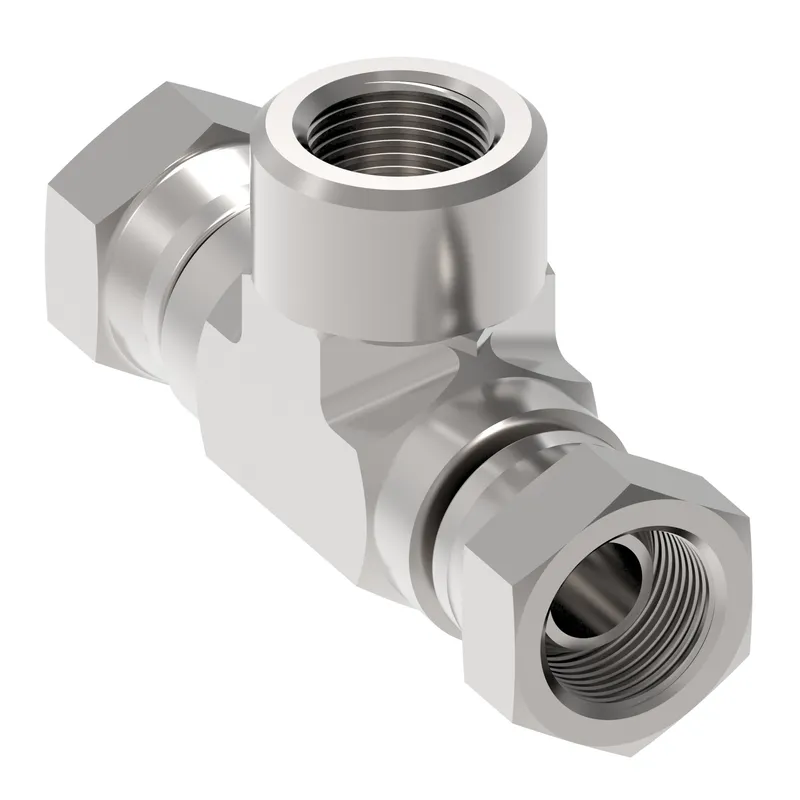

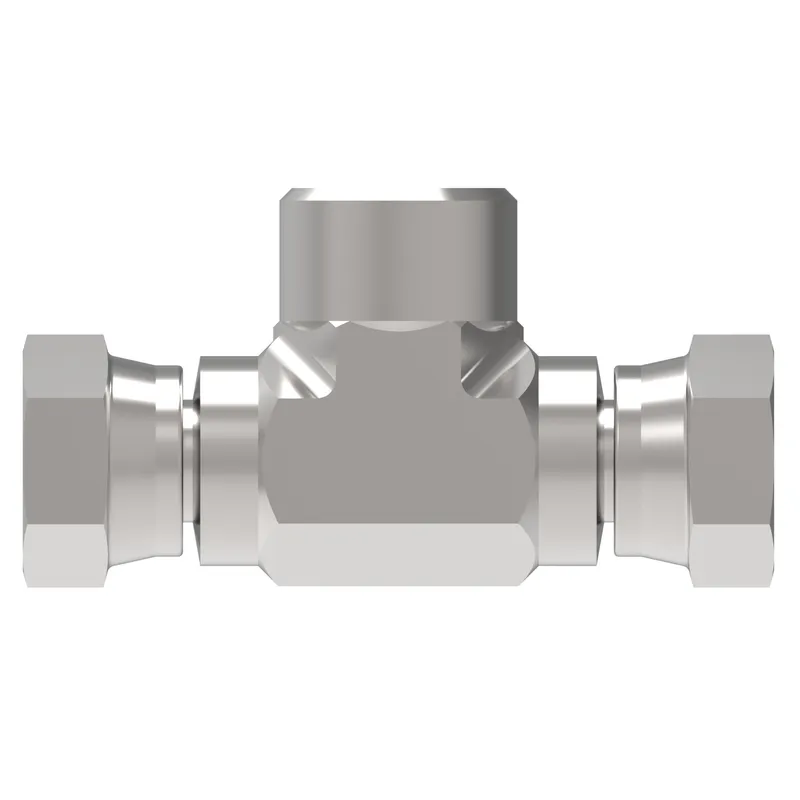

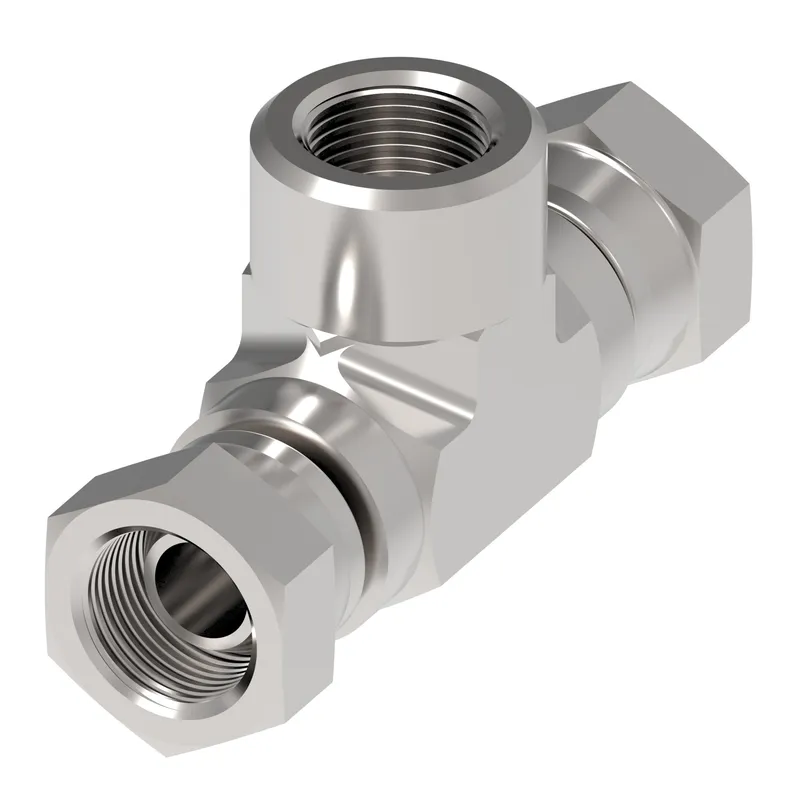

Danfoss Adapter, NPTF/SM tee, manufacturer part number 2253-12-12S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146174352
Brand	Danfoss
Drop dimension IN	1.360
Drop dimension MM	34.50
End Type 1	Female pipe swivel (NPSM)
End Type 2	Female pipe swivel (NPSM)
End type 3	Female Pipe (NPT)
Finish plating	Dura-Kote
Hex size 1 IN	1.260
Hex size 1 MM	32.000
Hex size 2 IN	1.250
Hex size 2 MM	31.800
Hex size 3 IN	1.250
Hex size 3 MM	31.8
Item type	Adapter-tee
Product material	Carbon steel
Thread sealant	No
Tube outside diameter 1 IN	0.750
Tube outside diameter 1 MM	19.1
Tube outside diameter 2 IN	0.750
Tube outside diameter 2 MM	19.1
Tube outside diameter 3 IN	0.750
Tube outside diameter 3 MM	19.1
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
