Danfoss 2243-8-6S

Adapter, SAE 37 45 elbow

MPN: 2243-8-6S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2243-8-6S?

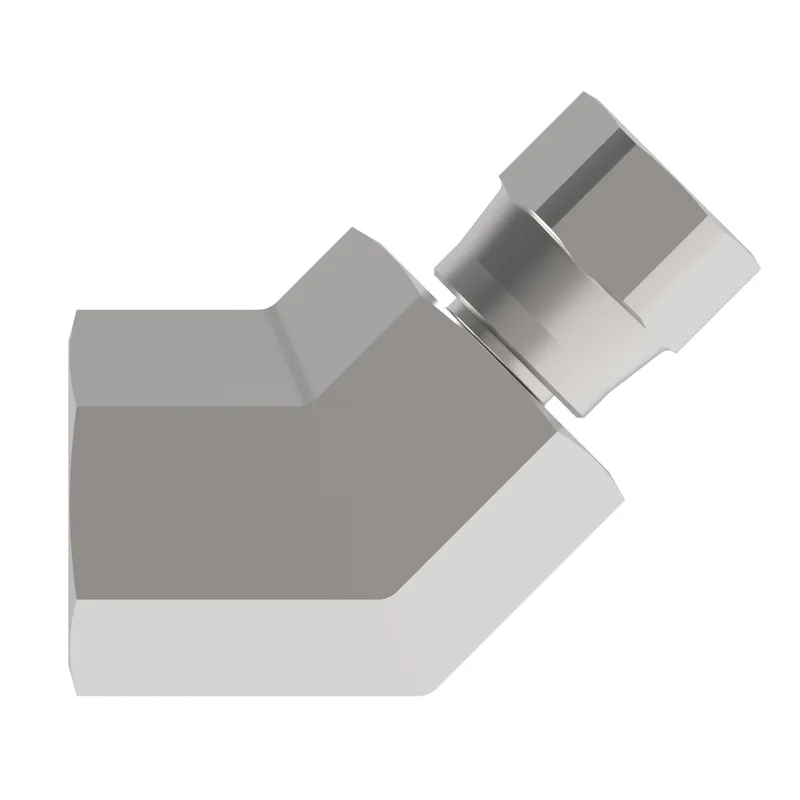

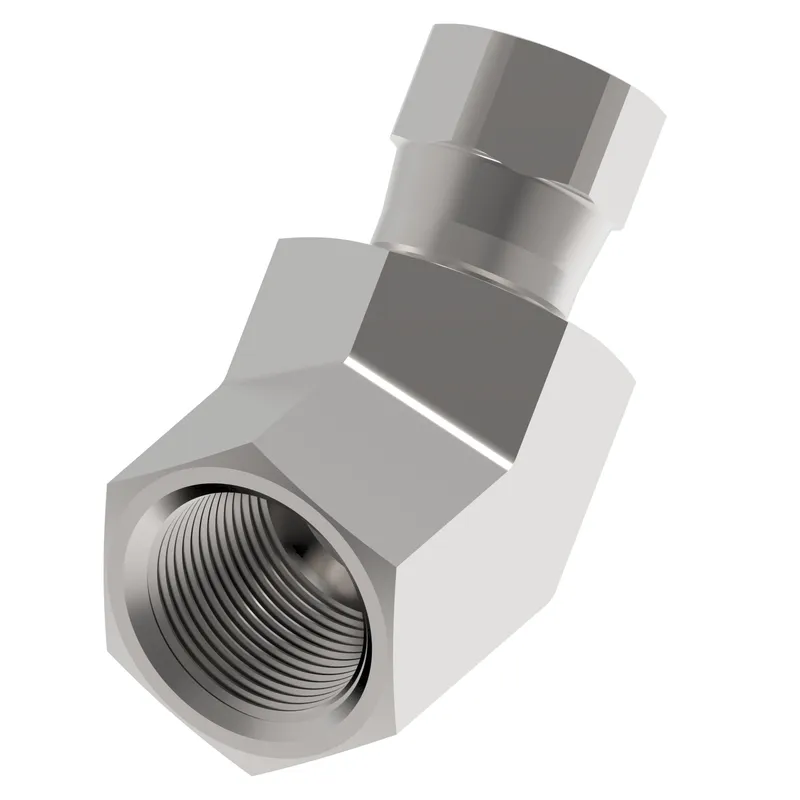

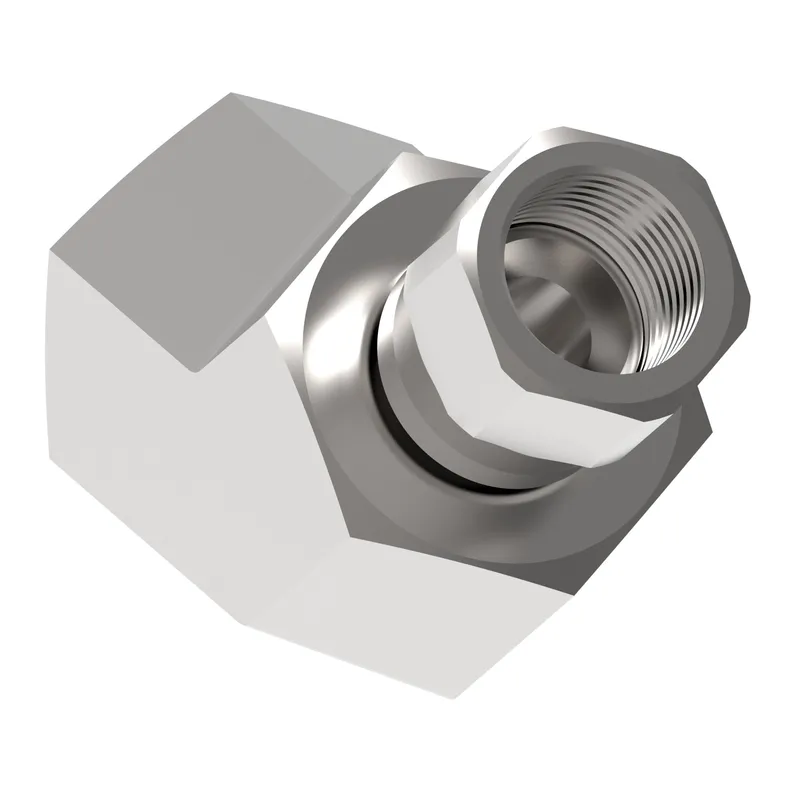

Danfoss Adapter, SAE 37 45 elbow, manufacturer part number 2243-8-6S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146053282
Angle shape	45 Degree
Brand	Danfoss
Drop dimension IN	0.840
Drop dimension MM	21.30
End Type 1	Female pipe (NPTF)
End Type 2	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.690
Hex size 1 MM	17.500
Item type	Adapter-elbow
Product material	Carbon steel
Thread sealant	No
Thread size 2	9/16-18 UNF
Tube outside diameter 1 IN	0.500
Tube outside diameter 1 MM	12.7
Tube outside diameter 2 IN	0.380
Tube outside diameter 2 MM	9.7
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65

2243-8-6S: frequently asked questions

When can 2243-8-6S be shipped?

2243-8-6S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2243-8-6S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2243-8-6S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2243-8-6S, subject to availability and destination.
