Danfoss 2242-8-8S-BG

Adaptr WHD C5256X8X8

MPN: 2242-8-8S-BG
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2242-8-8S-BG?

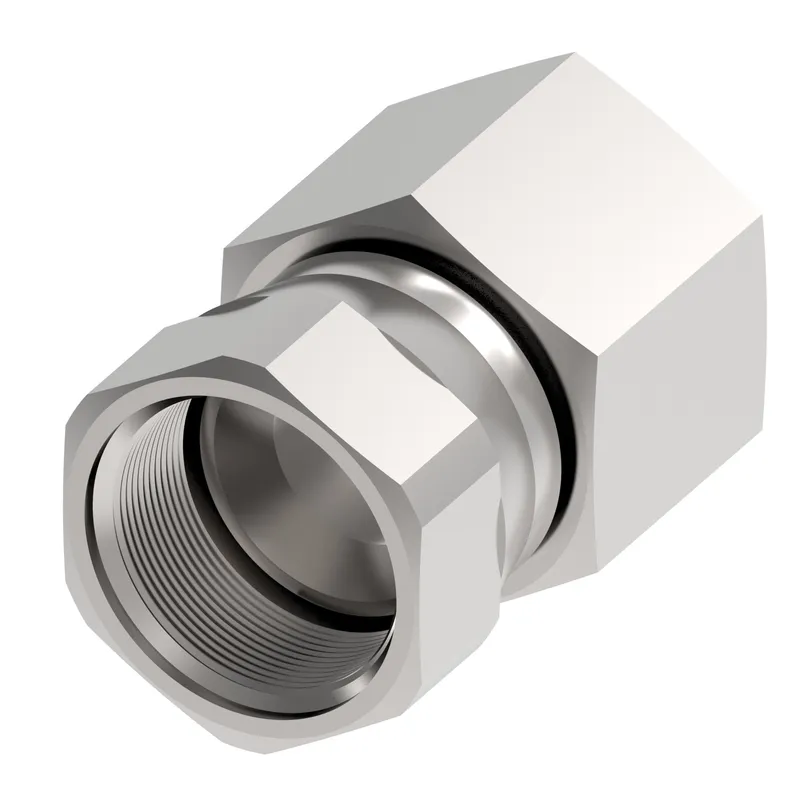

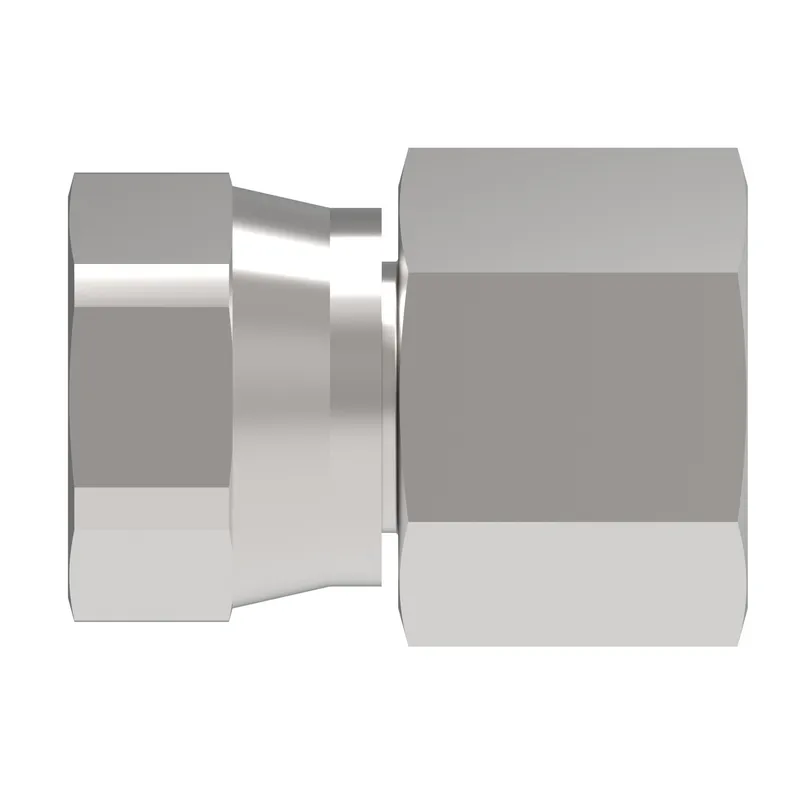

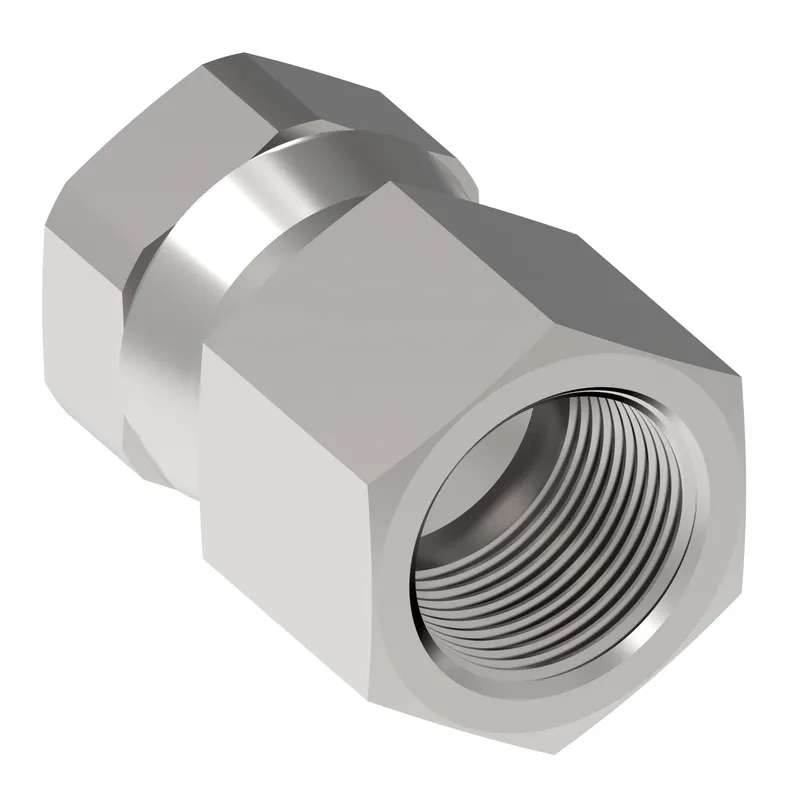

Danfoss Adaptr WHD C5256X8X8, manufacturer part number 2242-8-8S-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
End Type 1	Female pipe (NPTF)
End Type 2	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hex size 2 IN	0.875
Hex size 2 MM	22.200
Product material	Carbon steel
Thread sealant	No
Thread size 2	3/4-16 UNF
Tube outside diameter 1 IN	0.500
Tube outside diameter 1 MM	12.7
Tube outside diameter 2 IN	0.500
Tube outside diameter 2 MM	12.7
Working pressure bar	276.0
Working pressure psi	4000
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
